KP12P-TV07956 – 12-Fiber KP Cable (1×12F) G.652D

Hollow tube optical cable with dry core, aramid yarn reinforcement, and polyethylene sheath — ideal for outdoor installations. Features stripping cords for easy opening.

Price per meter.

Reference: FO-KP12P-TV07956

More details

fiber optic cable rolls are provided at 2000 meters length approximately.

0,51 € VAT excl.

The minimum purchase order quantity for the product is 2000

Add to wishlist

Data sheet

FTTx Single Mode Fiber Optic CableMonotube Fiber Cable

More info

KP12P-TV07956 – KP 12-Fiber Cable (1Tx12F) G.652.D

Application TV07956

The KP cables are well suited for installation in ducts or as distribution cables on façades to provide service to users in FTTH networks. Please refer to the Installation Guide; request it from our Sales Office.

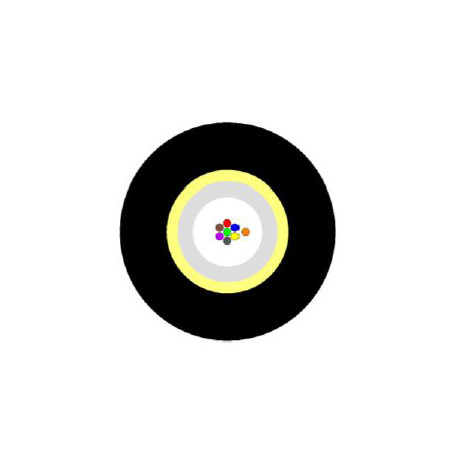

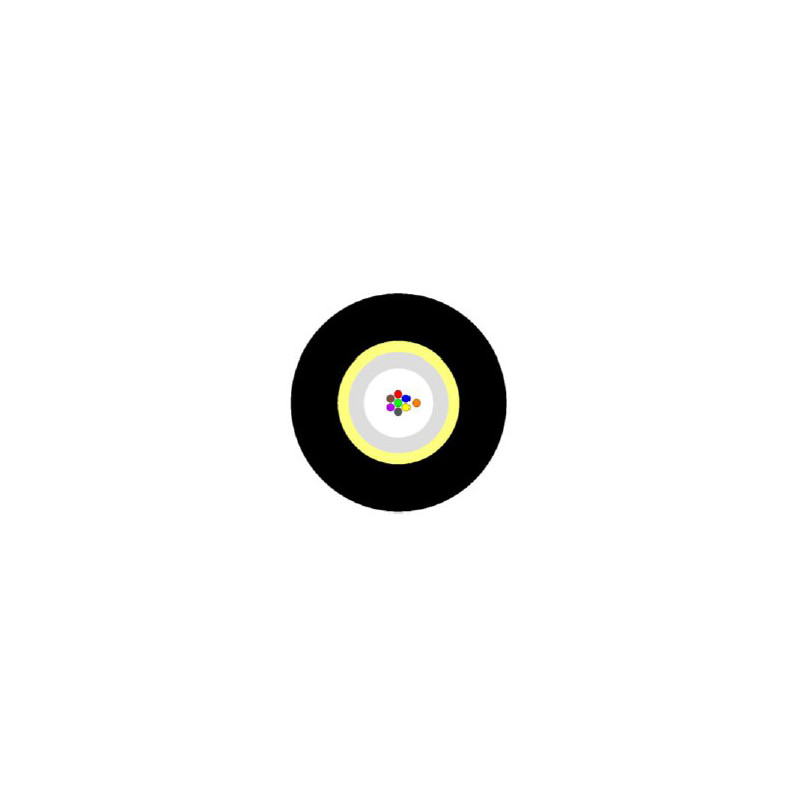

Cable Design

  • Hollow Tube: thermoplastic material containing optical fibers filled with a sealing compound.
  • Longitudinal Waterblocking: moisture-absorbing elements (dry core).
  • Dielectric Strength Member: aramid yarn.
  • Outer Sheath: polyethylene. Two ripcords under the sheath.

Technical Data

No. of Fibers12
Cable Diameter6.6 mm
Cable Weight (kg/km)40 kg/km
Minimum Bend RadiusUnder Maximum Tension: 20 x Cable Ø | No Tension: 15 x Cable Ø
Temperature RangeTransport & Storage: -40 → +70 °C | Installation: 0 → +50 °C | Operation: -20 → +70 °C

Main Characteristics

TestStandardSpecified ValueAcceptance Criteria
Tensile StrengthIEC 60794-1-21-E11250 NΔα ≤ 0.05 dB after test
Crush ResistanceIEC 60794-1-21-E31000 N / 100 mmΔα ≤ 0.05 dB after test
ImpactIEC 60794-1-21-E43 J, 3 impacts, R = 300 mmΔα ≤ 0.05 dB after test
Bend RadiusIEC 60794-1-21-E11≥ 20×Øcable(mm), 5 turns, 3 cyclesΔα ≤ 0.05 dB after test
Temperature RangeIEC 60794-1-22-F1-20 °C to +70 °CΔα ≤ 0.1 dB/km
Water PenetrationIEC 60794-1-22-F5B3 m cable, 1 m waterNo water passage after 24 h

NOTE: Optical characteristics according to attached fiber datasheet. Fiber compliant with ITU-T G.652.D. Configuration: 1 tube x 12 fibers. Sheath color: black. Marking every 1 meter. Fiber colors according to Prysmian standard.

* For other configurations, please contact our sales department.

Anvimur Telecomunicaciones only supplies optical fiber cables manufactured in Europe, ensuring the highest quality guarantee for its customers.

WARNING

THE PRICE IS INDICATED PER METER FOR INFORMATION ONLY. OPTICAL FIBER CABLES ARE SUPPLIED IN APPROXIMATELY 2000-METER REELS.
