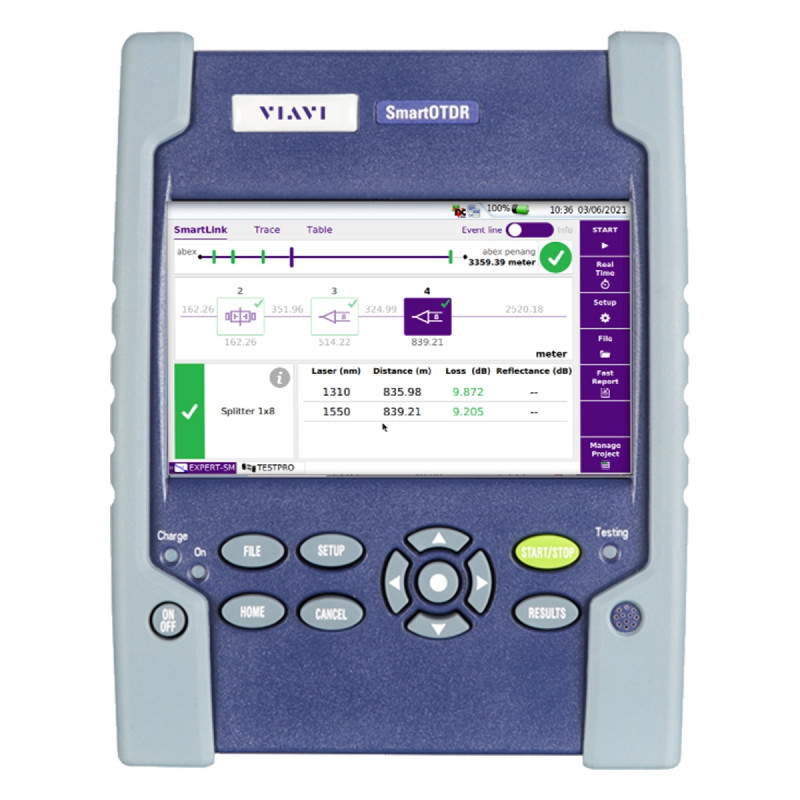

SMART OTDR VIAVI MTS100B

FO-MTS100B

New product

SMART OTDR VIAVI 100B

The compact and lightweight SmartOTDR accelerates and optimizes field testing of access and metro networks with a customized OTDR interface.



Model: FO-MTS100B

More details

Manufactures on-demand delivery within 72 hours

4 950,00 € VAT excl.

Add to wishlist

Data sheet

GPONMeasuring and Testing

More info

SmartOTDR VIAVI 100B

SmartOTDR 100B — Intelligent and Simplified Testing for Fiber Networks

The SmartOTDR 100B is a portable, lightweight, and easy-to-use tool designed to accelerate and optimize field testing of access and metro networks. Thanks to its customized OTDR interface and automated analysis, any technician can operate it confidently—minimizing configuration errors and ensuring consistent results. Its innovative “one-touch” workflow and integration of multiple test functions into a single device significantly improve productivity in any environment.

Integrated Testing in a Single Device

  • All-in-One Functionality

    Combines OTDR, Visual Fault Locator (VFL), Optical Power Meter (OPM), PON/XG-PON power meter, and fiber microscope compatibility (with optional accessories) into a single portable instrument.

Intelligent and Automated Analysis

  • Smart Link Mapper (SLM)

    Simplifies OTDR analysis with intuitive graphical network views, automatically identifying splitters, connectors, and events.

  • Objective Pass/Fail Results

    Automates testing with predefined acceptance criteria, including connector inspection and macro-bend detection.

Connectivity and Cloud Management

  • SmartAccess Anywhere (SAA)

    Enables real-time remote control via virtual tunnels—ideal for advanced technical support from any location.

  • StrataSync™

    Includes 1 year of free cloud-based license for automatic updates, report storage, configuration, and asset management.

  • Wireless Connectivity

    Supports Wi-Fi, Bluetooth, and 3G/4G via USB for instant report transfer and remote control from smartphones or tablets.

Field-Ready Design

  • Long-Lasting Battery

    Up to 20 hours of operation with a rechargeable lithium battery—ideal for full-day use without recharging.

  • 5-Inch Touchscreen

    Optimized for outdoor use—even with gloves—and compatible with the included capacitive stylus.

  • Hands-Free Design

    Includes a neck-strap carrying case, enabling simultaneous use with other tools.

Specifications

Display5-inch (12.5 cm) color capacitive touchscreen, WVGA 800 × 480 resolution
OTDR Wavelengths1310 / 1550 / 1625 nm ±20 nm
RMS Dynamic Range40 / 40 / 41 dB (1310 / 1550 / 1625 nm)
Event Dead Zone0.9 m
Attenuation Dead Zone2.5 m
Attenuation Dead Zone after Splitter (15 dB loss)45 m
Display Range0.1 km to 260 km
Sampling Resolution4 cm
Pulse WidthsFrom 5 ns to 20 µs
Integrated CW Light Source–3.5 dBm ±1 dB, stability ±0.05 dB (8 h)
Optical Power Meter (optional)
  • Range: 0 to –55 dBm
  • Wavelengths: 1310, 1490, 1550, 1625, 1650 nm
  • Accuracy: ±0.5 dB
Integrated PON/XG-PON Power Meter
  • 1490 nm: –35 to +5 dBm
  • 1550 / 1578 nm: –35 to +23 dBm
  • Accuracy: ±0.5 dB
Visual Fault Locator (VFL, optional)650 nm, CW / 1 Hz mode, Class 2 laser
Interfaces2 × USB 2.0, 1 × mini-USB 2.0, Wi-Fi and Bluetooth (integrated or optional)
StorageUp to 10,000 standard OTDR traces
BatteryRechargeable lithium battery, up to 20 hours of operation
Power SupplyAC/DC adapter: input 100–250 V AC, 50–60 Hz; output 12 V DC, 25 W
Dimensions175 × 138 × 57 mm (6.9 × 5.4 × 2.24 in)
WeightApprox. 0.9 kg (1.98 lbs) with battery
Operating Temperature–20 °C to +50 °C
HumidityUp to 95% non-condensing
Laser SafetyOTDR: Class 1; VFL: Class 2 (EN60825-1, FDA 21 CFR)
Key Features
  • Advanced OTDR with Smart Link Mapper (SLM) for automated visual analysis
  • Integrated testing: OTDR, VFL, OPM, PON/XG-PON, and P5000i microscope compatibility
  • “One-touch” operation with objective pass/fail results
  • Optimized for PON networks with splitters up to 1×128
  • Wi-Fi, Bluetooth, and 3G/4G connectivity for remote control and data transfer
  • SmartAccess Anywhere (SAA) for real-time remote access
  • Cloud management with StrataSync™ (1-year license included)
  • 20-hour battery life and hands-free design for demanding field environments
  • Automatic PDF report generation (FastReport)
ModelFO-MTS100B
