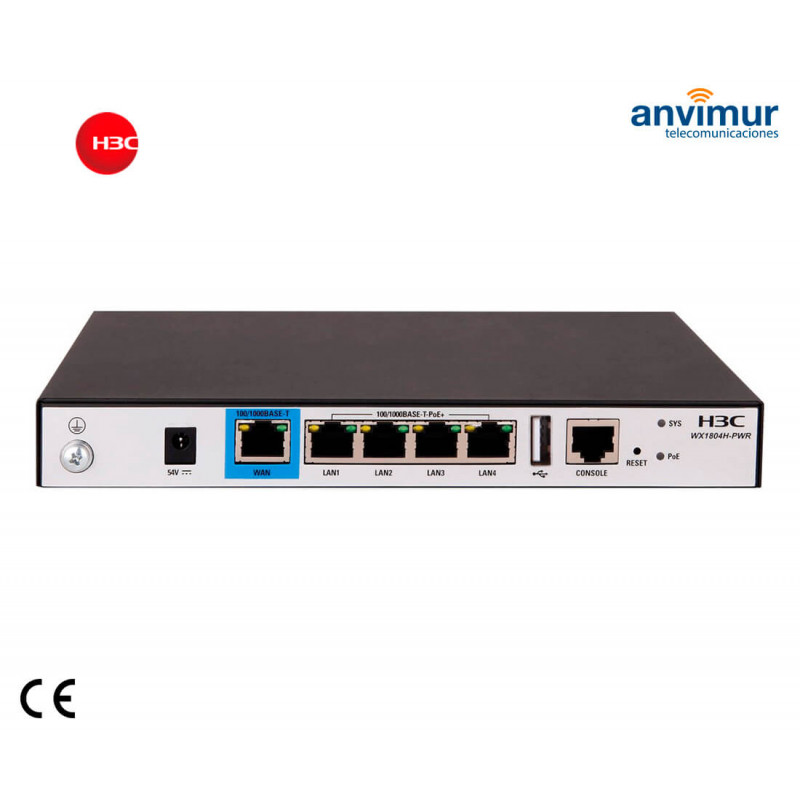

1+4-Port Gigabit PoE+ Access Controller WX1804H-PWR | H3C
H3C-WX1804H-PWR
New product
H3C EWP-WX1804H-PWR WAN 1*GE + LAN 4*GE(PoE+) Controller H3C EWP-WX1804H-PWR WAN 1*GE + LAN 4*GE(PoE+) 20 APs management license included.
H3C-WX1804H-PWR
This product is no longer in stock
Data sheet
| Free Band | H3C |
More info
1+4-Port Gigabit PoE+ Access Controller WX1804H-PWR | H3C
The H3C WX1800H wireless Access Controller (AC) is well designed and positioned for SME network. It features gateway and AC function integration, reducing the number of devices and TCO in network. It adopts the innovative Comware V7 platform (referred to as V7 hereafter). V7 comes with the standard granular user control management, comprehensive RF resource management, 7x24 wireless security control, fast layer-2 and layer-3 roaming, strong QoS and IPv4/IPv6 dual stack. V7 adds in various novel wireless technologies such as multi-core control plane, Bonjour and Hotspot 2.0. It also supports multiple network configurations such as cloud management and hierarchical AC.
H3C WX1800H series AC consists of four models: WX1804H-PWR, WX1810H-PWR, WX1820H and WX1840H. When paired with H3C Fit Access Point (AP), it serves as an ideal access control solution for WLAN access of SMB network.Manufacturer H3C Series
Professional Series Access Point Controllers
Ideal for professional installations in high capacity environments, such as hotels, large shopping centres, stadiums, public buildings. Etc. They are designed for environments with massive traffic flow with the need for professional management.
Specifications
| Item | WX1804H-PWR | WX1810H-PWR | WX1820 | WX1840H |
| Dimensions (WxDxH) | 220mm*145.5mm *27mm | 440mm*260mm *43.6mm | 220mm*145mm *22mm | 330mm*230 mm *43.6 mm |
| Weight | 0.6kg | 3.6kg | 0.95kg | 1.9kg |
| Wireless throughput | 500Mbps | 800Mbps | 800Mbps | 2Gbps |
| Port | WAN 1*GE + LAN 4*GE(PoE+) + 1*USB | WAN 2*GE + LAN 10*GE (PoE+) + 1*USB | WAN 1*GE + LAN 4*GE + 1*USB + 1*SD Card slot. | WAN 2*GE + LAN 4*GE/2*GE SFP Combo + 1*USB + 1*SD Card slot |
| Power supplies | 100V AC~240V AC:50/60Hz | |||
| Operating and storage temperature | 0℃~45℃/-40℃~70℃ | |||
| Operating and storage relative humidity | 5%~95% | |||
| Safety Compliance | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 EN60601-1-2 FDA 21 CFR Subchapter J | |||
| EMC | ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 | |||
| MTBF | ≥38 years | |||
