1 GE LAN Port (PoE+) + 1 GE LAN Indoor Access Point | H3C

H3C-WA6320FIT

New product

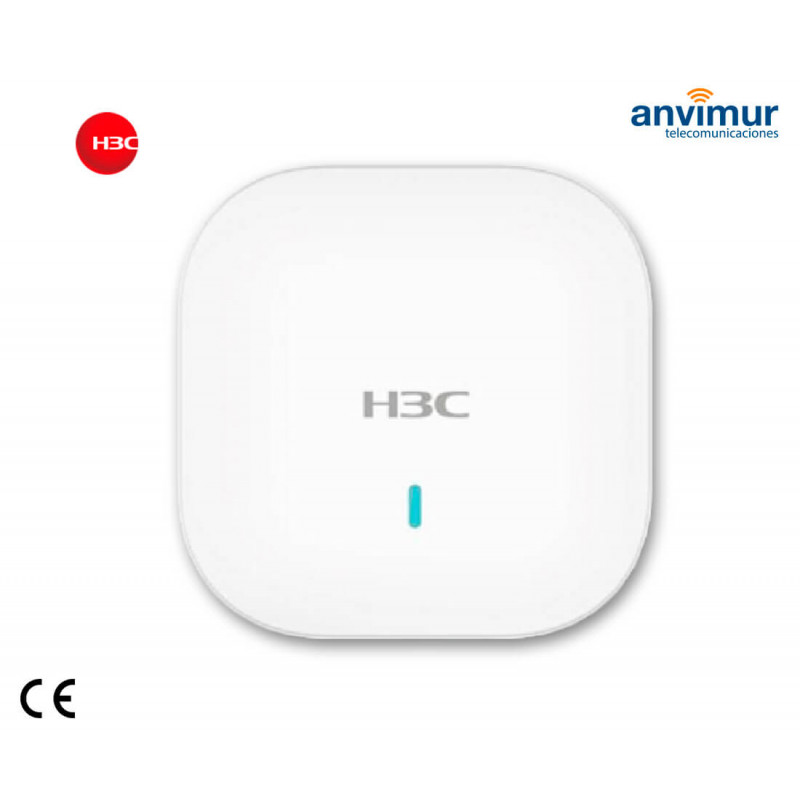

H3C WA6320-FIT Indoor Access Point WIFI 6 AX. 1 LAN 1 GE POE+, MIMO 2X2.

H3C-WA6320FIT

More details

214,00 € VAT excl.

Add to wishlist

Data sheet

Free BandH3C

More info

1 GE LAN Port (PoE+) + 1 GE LAN Indoor Access Point | H3C

H3C WA6320-FIT Punto de acceso interior WIFI 6 AX. 1 LAN 1 GE POE+, MIMO 2X2.

H3C WA6320 series access point is the latest generation wireless access point developed based on 802.11ax standard. They are designed with creative dual-radio 802.11ax technology standard respectively, and provide a transmission speed at least 2 times faster than 802.11ac products. This makes the series suitable for high-density access scenarios, such as hotel, retail stores and smart enterprise campus. It is compact in appearance and support both wall mounting and ceiling mounting.

Manufacturer H3C Series

Professional Series Access Point

Ideal for professional installations in high capacity environments, such as hotels, large shopping centres, stadiums, public buildings. Etc. They are designed for environments with massive traffic flow with the need for professional management.

Specifications

Weight(excluding mounting accessories) 0.4Kg
Dimensions(excluding mounting and accessories) 185mm×185mm×43mm
Ethernet ports one for 10/100/1000M Rj45
PoE Port1: 802.3af
Local Power supply54V DC
Console port One（RJ-45）
Built-in antenna Built-in omni-directional antenna
3dBi antenna gain @2.4GHz
5dBi antenna gain @5GHz
Built-in Bluetooth Built-in Bluetooth 5.0，Support iBeacon standard
Working frequencies 802.11ax/ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz
802.11ax/b/g/n : 2.4GHz-2.483GHz
Modulation technology OFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps
DSSS : DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps (file://dbpsk@1mbps、dqpsk@2mbps、cck@5.5/11Mbps)
MIMO-OFDM 11n）: MCS 0-31
MIMO-OFDM（11ac）: MCS 0-11
MIMO-OFDM（11ax）: MCS 0-11
Modulation mode 11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps 11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM 11ax: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM Maximum transmit power 20dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations)
Adjustable power granularity 1dBm
Reset/restoration to factory defaultSupported
State LEDAlternating flashing mode, orange/green/blue for different working states, breathing mode
Working Temperature/ Storage Temperature-10ºC～55ºC(32°F to 113°F)/-40ºC～70ºC(–40°F to +158°F)
Working Humidity/ Storage Humidity5%~95%(non-condensing)
Protection classIP41
Overall power consumption ≤12.42W
Safety complianceGB4943、EN60601-1-2(medical electrical equipment)、UL/CSA 60950-1、EN/IEC 60950-1、EN/IEC 60950-22
EMCGB9254、EN301 489、EN55022、FCC Part 15、RSS-210
Radio frequency certification FCC Part 15、EN 300 328、EN 301 893、and MIIT SRRC
HealthFCC Bulletin OET-65C、EN 50385、IC Safety Code 6
MTBF>250000H

Features

  • New-generation Wi-Fi standard 802.11ax (Wi-Fi 6).
  • DL/UL MU-MIMO.
  • Smart cloud access and optimal WLAN TCO.
  • Orthogonal frequency division multiple access (OFDMA).
  • Spatial multiplexing.
  • Target Wake Time (TWT).
  • Green design.
  • Local forwarding.
  • IPv4 and IPv6 dual stack (Native IPv6).
  • End user Admission Defense (EAD).
  • Built-in Bluetooth.
  • Remote probing and analysis.
  • RF Optimizing Engine (ROE).
  • Intelligent load balancing.
  • Real Time Spectrum Guard (RTSG).
  • H3C Cellular Coexistence Feature (CCF).
  • Anchor AC mode.
  • Could-based Management.
  • Intelligent unified wired and wireless management.

Download technical data WA6320, here.
