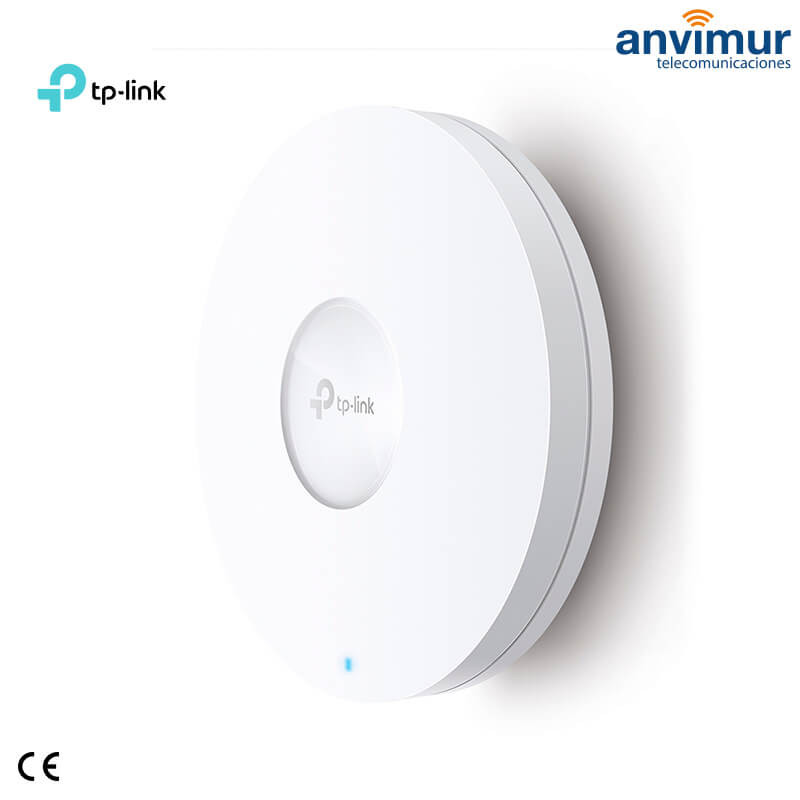

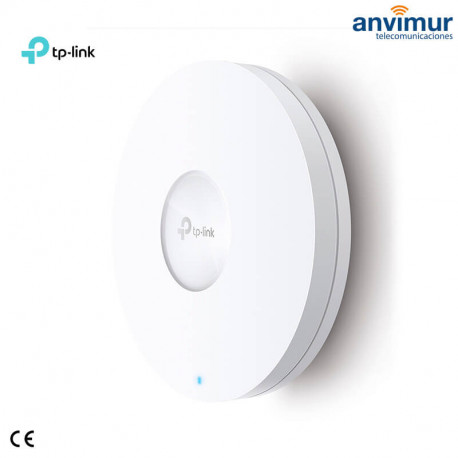

EAP610, AX1800 Ceiling Mount WiFi 6 Access Point | TP-LINK

TL-EAP610

New product

Ultra-Fast WiFi 6 Speeds, High-Efficiency WiFi 6, Centralized Cloud Management, Seamless Roaming, Omada Mesh, PoE+ Powered, Secure Guest Network.

TL-EAP610

More details

109,00 €

Add to wishlist

Data sheet

Networking and WirelessAccess Points
Free BandTP-LINK

More info

EAP610, AX1800 Ceiling Mount WiFi 6 Access Point | TP-LINK

  • Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
  • High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
  • Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
  • Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.§
  • Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.§
  • PoE+ Powered: Supports both Power over Ethernet (802.3at) and DC power supply for flexible installations.
  • Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.§

Specifications

HARDWARE FEATURES
Interface1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
ButtonReset
Power Supply• 802.3at PoE
• 12 V / 1 A DC
Power Consumption• EU: 12.8 W (For PoE); 10.8 W (for DC)
• US: 13.9W (For PoE); 11.8 W (for DC)
Dimensions ( W x D x H )9.6 × 9.6 × 2.5 in (243 × 243 × 64 mm)
Antenna TypeInternal Omni
• 2.4 GHz: 2× 4 dBi
• 5 GHz: 2× 5 dBi
MountingCeiling /Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
Signal Rate5 GHz: Up to 1201 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions• 1024-QAM
• 4× Longer OFDM Symbol
• OFDMA
• Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
• Enable/Disable Wireless Radio
• Automatic Channel Assignment
• Transmit Power Control (Adjust Transmit Power on dBm)
• QoS(WMM)
• MU-MIMO
• Seamless Roaming §
• Omada Mesh§
• Band Steering
• Load Balance
• Airtime Fairness
• Beamforming
• Rate Limit
• Reboot Schedule
• Wireless Schedule
• Wireless Statistics based on SSID/AP/Client
Wireless Security• Captive Portal Authentication§
• Access Control
• Wireless Mac Address Filtering
• Wireless Isolation Between Clients
• SSID to VLAN Mapping
• Rogue AP Detection
• 802.1X Support
• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power• CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, EIRP)

• FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada AppYes
Centralized Management• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Cloud AccessYes (Through OC300, OC200, or Omada Software Controller)
Email AlertsYes
LED ON/OFF ControlYes
Management MAC Access ControlYes
SNMPv1, v2c, v3
System Logging Local/Remote SyslogLocal/Remote Syslog
SSHYes
Web-based ManagementHTTP/HTTPS
L3 ManagementYes
Multi-site ManagementYes
Management VLANYes
OTHERS
CertificationCE, FCC, RoHS
Package Contents• EAP610
• Power Adapter
• Ceiling/Wall Mounting Kits
• Installation Guide
System RequirementsMicrosoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux
Environment• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

Downloads and more information EAP610, here.
