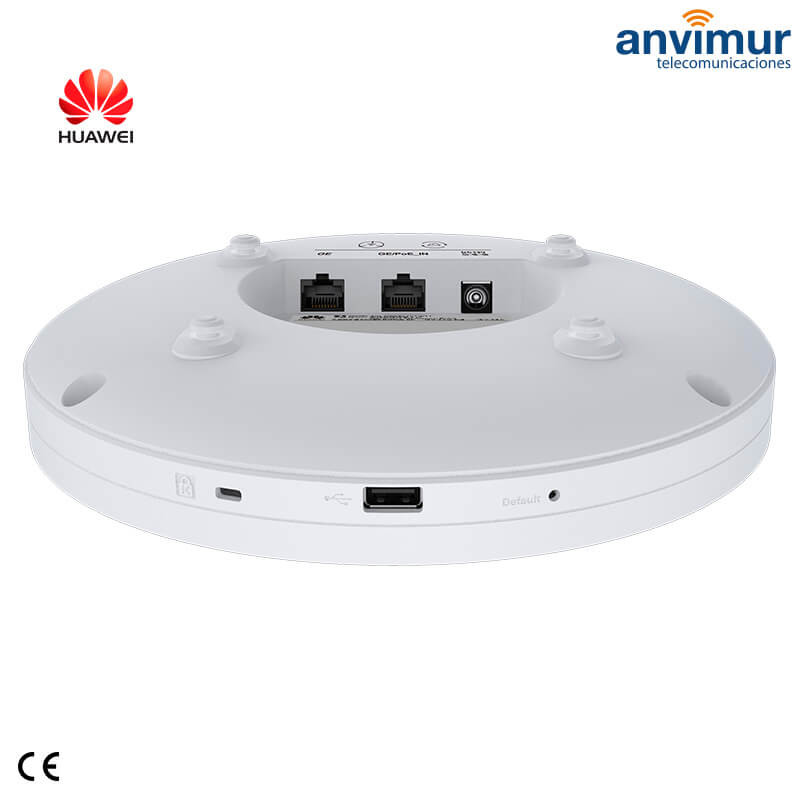

AirEngine6761-21T, Access Point (2+2+4 tri bands) WiFi 6 | Huawei

HUA-AIRENGINE6761-21T

New product

AirEngine 6761-21T (11ax indoor,2+2+4 tri bands, smart antenna, USB, BLE).

2x GE electrical ports.

HUA-AIRENGINE6761-21T

More details

Add to wishlist

Data sheet

Free BandHuawei

More info

AirEngine6761-21T, Access Point (2+2+4 tri bands) WiFi 6 | Huawei

Huawei AirEngine 6761-21T is a wireless access point (AP) in compliance of the Wi-Fi 6 standard. It can simultaneously provide services on three radios: 2.4 GHz (2x2 MIMO), 5 GHz (2x2 MIMO), and 5 GHz (4x4 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users' wireless network experience. It is ideal for densely populated scenarios such as mobile offices, schools, and stadiums.
  • 2 x GE electrical port
  • Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
  • USB port for IoT application extension (such as ZigBee and RFID)
  • Bluetooth serial interface–based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags.
  • Working modes: Fit, Fat, and cloud management.

Specifications

ItemDescription
Technical specificationsDimensions (diameter x length)Φ220 mm x 50 mm (8.66 in. x 1.97 in.)
Weight1.08 kg
System memoryDDR4, 1 GB
FlashNAND Flash 512MB
Power specificationsPower inputDC: 12 V ± 10%
PoE power supply: in compliance with IEEE 802.3at/802.3af
Maximum power consumption21.2 W (excluding the output power of the USB port)
NOTE:
The actual maximum power consumption depends on local laws and regulations.
Environment parametersOperating temperature-60 m to +1800 m: -10°C to +50°C
1800 m to 5000 m: The maximum temperature decreases by 1°C every time the altitude increases 300 m.
Storage temperature-40°C to +70°C
Operating humidity5% to 95% (non-condensing)
Atmospheric pressure53 kPa to 106 kPa

Accessories
