airFiber® AF-5XHD Radio | Ubiquiti
UB-AF5XHD
New product
airFiber® AF-5XHD Radio | Ubiquiti
AF-5XHD
Data sheet
| Free Band | UBIQUITI |
More info
airFiber® AF-5XHD Radio | Ubiquiti

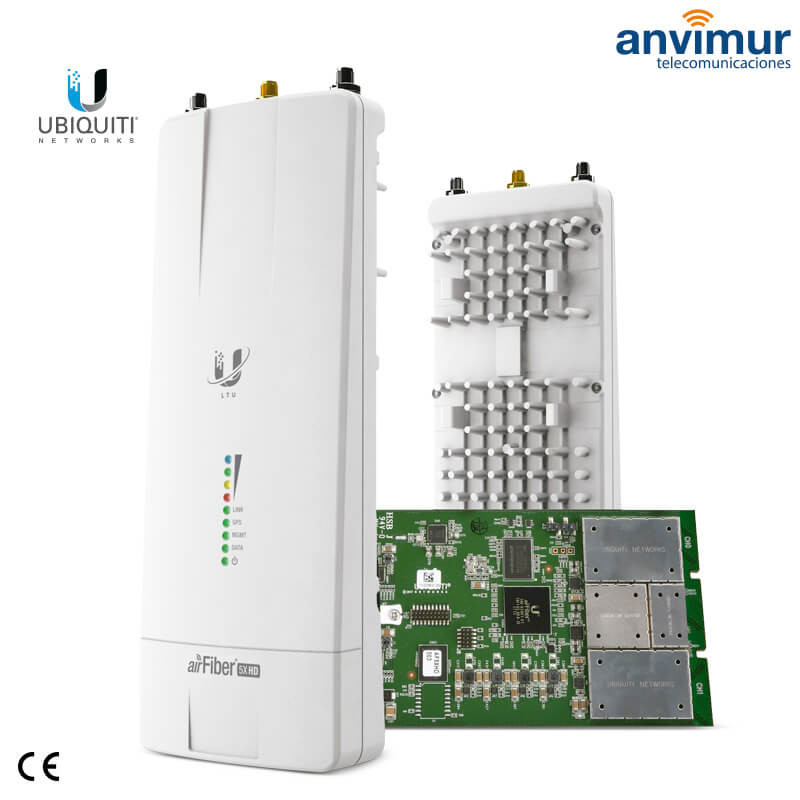

Ubiquiti continues to disrupt the wireless broadband market with revolutionary LTU technology that breaks through the limitations of 802.11 Wi-Fi technology. Designed for use in the 5 GHz frequency band, the new airFiber® AF-5XHD is Ubiquiti's first LTU radio, offering greater channel bandwidths of up to 100 MHz, and more advanced RF components. Pair the AF-5XHD with a compatible Ubiquiti® airFiber X antenna or RocketDish™ antenna for a complete 5 GHz Point-to-Point (PtP) solution. An IP67 upgrade kit is included to provide enhanced protection from dust and water.
Features
- Compatible with the airFiber® X or RocketDish™ antenna.
- 5 GHz radio band.
- Offers channel bandwidths up to 100 MHz for advanced RF components.
- 200+ km transmission range.
- Powered with the included 24V, 1A PoE Gigabit adapter.
- (1) 10/100 Ethernet port.
- (1) 10/100/1000 Ethernet port.
- 1+ Gbps maximum throughput.
- 12W maximum power consumption.
- Enhanced water, dust, and weather resistance with IP67-rated casing.
Specifications
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
| Weight | 0.35 kg (12.3 oz) |
| RF Connectors | (2) RP-SMA Weatherproof (CH0, CH1 (1) SMA Weatherproof (GPS) |
| GPS Antenna | External, Magnetic Base |
| Power Supply | 24V, 1A Gigabit PoE Adapter (Included) |
| Power Method | Passive Power over Ethernet Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-) |
| Max. Power Consumption | 6-12W |
| Supported Voltage Range | +18 to +54VDC |
| Mounting | airFiber X Mount (Rocket Mount Compatible) GPS Pole Mount (Included) |
| Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Weatherproofing | IP67 |
| Certifications | CE, FCC, IC |
