WA6330FIT, H3C WA6330 New Generation 802.11ax Indoor AP | H3C

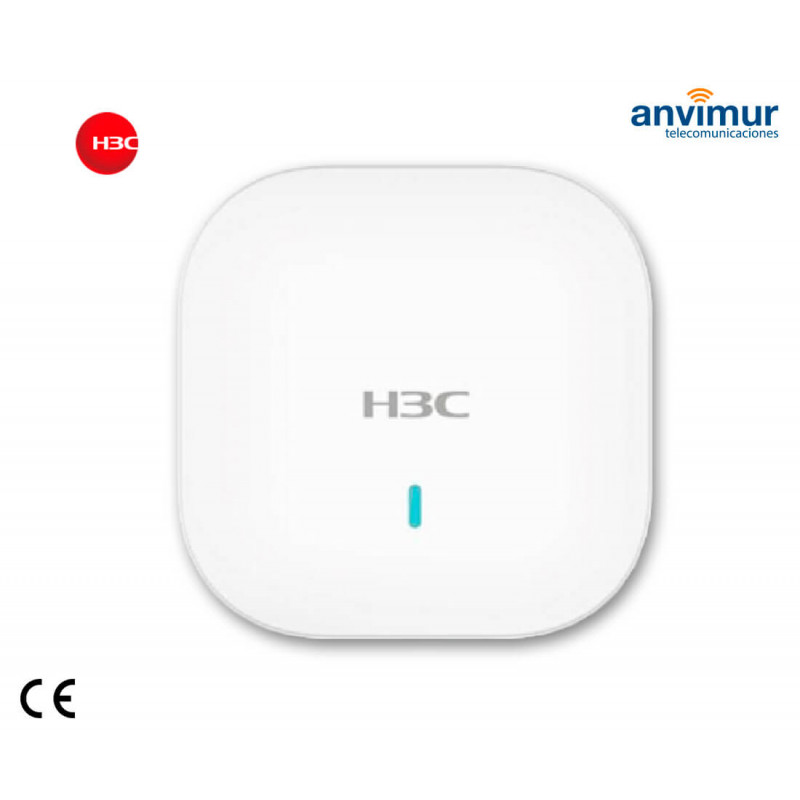

H3C WA6330 series access point is the latest generation wireless access point developed based on 802.11ax standard. They are designed with creative triple-radio 802.11ax technology standard respectively, and provide a transmission speed at least 2 times faster than 802.11ac products. This makes the series suitable for high-density access scenarios, such as hotel, retail stores and smart enterprise campus. It is compact in appearance and support both wall mounting and ceiling mounting.

Manufacturer H3C Series

Professional Series Access Point

Ideal for professional installations in high capacity environments, such as hotels, large shopping centres, stadiums, public buildings. Etc. They are designed for environments with massive traffic flow with the need for professional management.

Specifications

Hardware specifications
NameWA6330
Weight(excluding mounting accessories)0.94Kg
Dimensions(excluding mounting and accessories)210mm×210mm×45mm
Ethernet portsTwo（one for 100/1000M/2.5G Rj45，one for 100/1000M Rj45 support IoT）
support LACP(support between both network ports for redundancy and increased capacity)
PoEPort1: 2.5GE:802.3at/802.3af
Port2: GE:PSE,802.3af
Local Power supply54V DC
Console portOne（RJ-45）
Built-in antennaBuilt-in omni-directional antenna
Radio 1 : 5dBi antenna gain @ 5G
Radio 2 : 5dBi antenna gain @ 5G
Radio 3 : 5dBi antenna gain @ 2.4G or 5dBi antenna gain @ 5G
Built-in BluetoothBuilt-in Bluetooth(Support to switch RFID through software), support iBeacon standard
IoT ExtensionSupport BLE、RFID、ZigBee,etc.
Working frequencies802.11ax/ac wave2/ac/n/a : 5.725GHz-5.850GHz ; 5.47～5.725GHz; 5.15~5.35GHz
802.11ax/b/g/n : 2.4GHz-2.483GHz
Modulation technologyOFDM : BPSK@6/9Mbps、QPSK@12/18Mbps、16-QAM@24Mbps、64-QAM@48/54Mbps
DSSS :DBPSK@1Mbps、DQPSK@2Mbps、CCK@5.5/11Mbps(file://dbpsk@1mbps、dqpsk@2mbps、cck@5.5/11Mbps)
MIMO-OFDM （11n）: MCS 0-31
MIMO-OFDM （11ac）: MCS 0-11
MIMO-OFDM （11ax）: MCS 0-11
Modulation mode11b：DSS:CCK@5.5/11Mbps,DQPSK@2Mbps,DBPSK@1Mbps
11a/g：OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps,BPSK@6/9Mbps
11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM
11ax: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM
Maximum transmit power20 dBm (Transmit power is multi-chain combined power, no antenna gain is included. The actual transmit power depends on local laws and regulations)
Adjustable power granularity1dBm
Reset/restoration to factory defaultSupported
State LEDAlternating flashing mode, orange/green/blue for different working states, breathing mode
Working Temperature/
Storage Temperature		-10ºC～55ºC(32°F to 113°F)/-40ºC～70ºC(–40°F to +158°F)
Working Humidity/
Storage Humidity		5%~95%(non-condensing)
Protection classIP42
Overall power consumption≤34W（excluding IoT modules）
Safety complianceGB4943、EN60601-1-2(medical electrical equipment)、UL/CSA 60950-1、EN/IEC 60950-1、EN/IEC 60950-22
EMCGB9254、EN301 489、EN55022、FCC Part 15、RSS-210
Radio frequency certificationFCC Part 15、EN 300 328、EN 301 893、and MIIT SRRC
HealthFCC Bulletin OET-65C、EN 50385、IC Safety Code 6
MTBF>250000H

Features

  • New-generation Wi-Fi standard 802.11ax (WiFi 6).
  • DL/UL MU-MIMO.
  • Smart cloud access and optimal WLAN TCO.
  • Orthogonal frequency division multiple access (OFDMA).
  • Spatial multiplexing.
  • Target Wake Time (TWT).
  • Support for IoT services.

More information and downloads WA6330, here.
