WX1840H, WAN 2*GE + LAN 4*GE/2*GE SFP Access Controller | H3C


New product

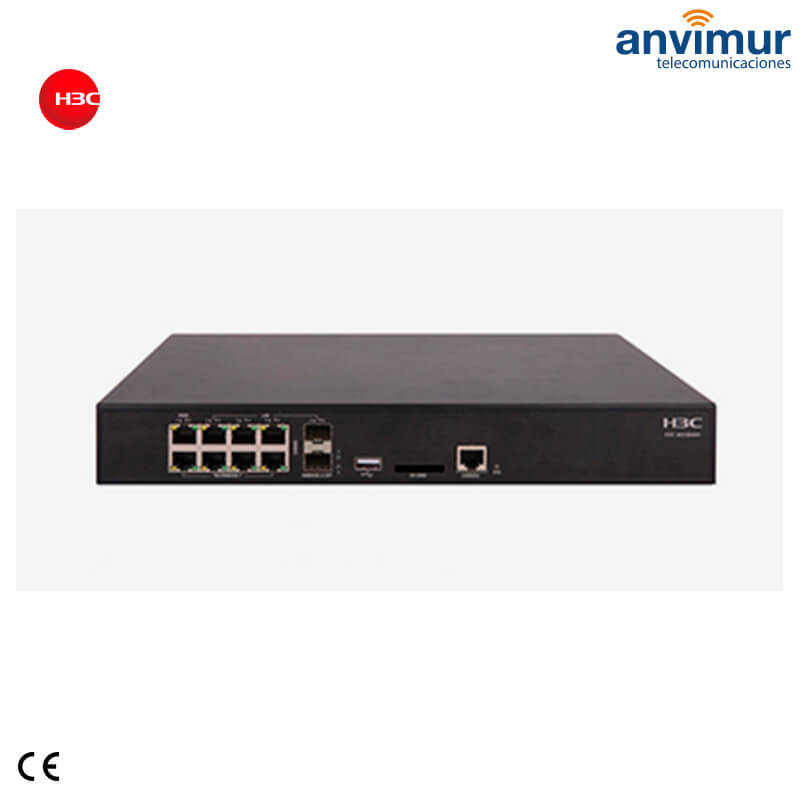

H3C WX1840H WAN 2*GE + LAN 4*GE/2*GE SFP Combo + 1*USB +1*SD Card slot

20 APs management licence included.


More details

487,00 €

Add to wishlist

Data sheet

Free BandH3C

More info

H3C WX1840H WAN 2*GE + LAN 4*GE/2*GE SFP Combo + 1*USB +1*SD Card slot

The H3C WX1800H wireless Access Controller (AC) is well designed and positioned for SME network. It features gateway and AC function integration, reducing the number of devices and TCO in network. It adopts the innovative Comware V7 platform (referred to as V7 hereafter). V7 comes with the standard granular user control management, comprehensive RF resource management, 7x24 wireless security control, fast layer-2 and layer-3 roaming, strong QoS and IPv4/IPv6 dual stack. V7 adds in various novel wireless technologies such as multi-core control plane, Bonjour and Hotspot 2.0. It also supports multiple network configurations such as cloud management and hierarchical AC.
H3C WX1800H series AC consists of four models: WX1804H-PWR, WX1810H-PWR, WX1820H and WX1840H. When paired with H3C Fit Access Point (AP), it serves as an ideal access control solution for WLAN access of SMB network.

Manufacturer H3C Series

Professional Series Access Point Controllers

Ideal for professional installations in high capacity environments, such as hotels, large shopping centres, stadiums, public buildings. Etc. They are designed for environments with massive traffic flow with the need for professional management.


ItemWX1804H-PWRWX1810H-PWR WX1820 WX1840H
Dimensions (WxDxH) 220mm*145.5mm
330mm*230 mm *43.6 mm
Weight 0.6kg3.6kg0.95kg1.9kg
Wireless throughput 500Mbps 800Mbps 800Mbps2Gbps
Port WAN 1*GE +
LAN 4*GE(PoE+)
+ 1*USB
WAN 2*GE + LAN 10*GE (PoE+) + 1*USBWAN 1*GE + LAN 4*GE + 1*USB + 1*SD Card slot.WAN 2*GE + LAN 4*GE/2*GE SFP Combo + 1*USB + 1*SD Card slot
Power supplies100V AC~240V AC:50/60Hz
Operating and storage temperature0℃~45℃/-40℃~70℃
Operating and storage relative humidity5%~95%
Safety Compliance UL 60950-1
CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1/A11
AS/NZS 60950
EN 60825-1
EN 60825-2
FDA 21 CFR Subchapter J
EMCETSI EN 300 386 V1.3.3:2005
EN 55024: 1998+ A1: 2001 + A2: 2003
EN 55022 :2006
VCCI V-3:2007
EN 61000-3-2:2000+A1:2001+A2:2005
EN 61000-3-3:1995+A1:2001+A2:2005
AS/NZS CISPR 22:2004
FCC PART 15:2005
GB 9254:1998
GB/T 17618:1998
MTBF ≥38 years

Download technical data WX1800, here.
