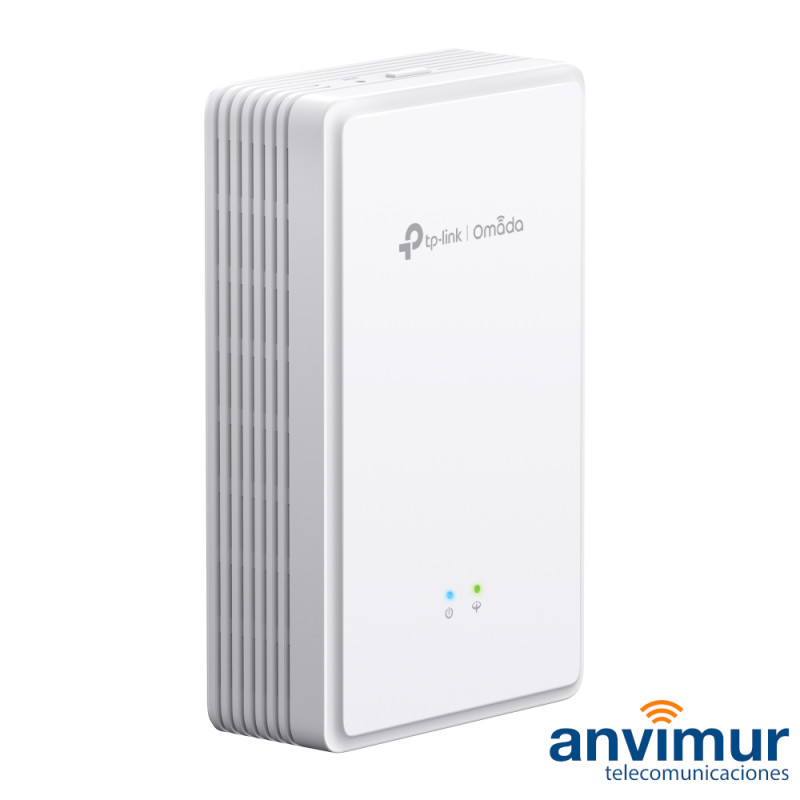

Wall Access Point GPON Wi-Fi 6 AX1800 | TP-Link

TL-EAP615GP-Wall

New product

Wall Access Point GPON Wi-Fi 6 AX1800

The TP-Link EAP615GP-Wall is a Wi-Fi 6 AX1800 wall-mounted access point, with speeds up to 1201 Mbps on 5GHz and 574 Mbps on 2.4GHz. It includes 1 GPON port and 2 Gigabit Ethernet ports.

Reference: TL-EAP615GP-Wall

More details

This product is no longer in stock

98,00 € VAT excl.

Add to wishlist

Data sheet

Networking and WirelessAccess Points
Free BandTP-LINK

More info

Wall Access Point GPON Wi-Fi 6 AX1800 | TP-Link

The TP-Link EAP615GP-Wall is a Wi-Fi 6 AX1800 wall-mounted access point that offers speeds up to 1201 Mbps on 5GHz and 574 Mbps on 2.4GHz. It includes advanced technologies such as roaming (802.11 k/v/r), Wi-Fi Mesh, MU-MIMO, and OFDMA to enhance performance and security. It features 1 GPON port and 2 Gigabit Ethernet ports, ensuring high-performance connectivity.

  • Ultra-Fast Wi-Fi 6 AX1800 Speed: Speeds up to 1201 Mbps on the 5GHz band and 574 Mbps on 2.4GHz.
  • Advanced and Secure Technology: Roaming (802.11 k/v/r), Wi-Fi Mesh, Multi-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness, Guest Network, and WPA2-PSK, WPA3-SAE/AES security.
  • High-Performance Connectivity: 1 SC/APC GPON Uplink port and 2 Gigabit LAN Ethernet ports.
  • VoIP Compatibility: 1 FXS RJ11 port compatible with SIP accounts for receiving and making calls.
  • Easy Installation: Simple wall mounting in just a few minutes.
  • Electrical Power: AC (100–240V~ 50/60Hz).
  • Guaranteed Wi-Fi Coverage and Connection: Network access in all areas.
  • Omada AI Wi-Fi: Automatic channel selection and power adjustment, AI Roaming, and high-gain smart antennas.
  • Secure Guest Network: Protects the main network by providing separate access for visitors and guests with different authentication options such as Captive Portal, 802.1X / Radius / Local Database.
  • Centralized Management: Cloud access via the Omada app or local access, ensuring intuitive and efficient network control and Autonomous Mode.

Specifications

HARDWARE FEATURES
Interface
  • 1x GPON Port
  • 1x FXS Port
  • 2x Gigabit RJ45 Ports
GPON Interface
  • Port Type: SC-APC
  • Standards and Protocols: ITU-984.x, G.988, Class B+
  • Data Rate: 2.488 Gbps (Downstream); 1.244 Gbps (Upstream)
  • Fiber Type: 9/125 um Single mode
  • Max. Cable Length: 20 km
Buttons
  • Reset
  • LED
Power Supply100–240V~ 50/60Hz, 0.5A
Power Consumption12.2W
Weight320g
Dimensions143 × 86 × 37.6 mm
Antenna Type Internal Omni
  • 2.4 GHz: 2× 4 dBi
  • 5 GHz: 2× 6.5 dBi
MountingWall-mounted

WIRELESS FEATURES
Wireless StandardsIEEE 802.11 a/b/g/n/ac/ax
Frequency2.4 GHz and 5 GHz
Signal Rate
  • 5 GHz: 1201 Mbps
  • 2.4 GHz: 574 Mbps
Signal Rate1201 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
Wireless FunctionsEnable/Disable Wireless Radio, WMM, Wireless Statistics, Band Steering, 2×2 (2.4G & 5G) MU-MIMO
Wireless SecurityWPA/WPA2/WPA3 Encryption
Transmit Power
  • CE: < 20 dBm(2.4 GHz, EIRP); <23dbm (5.17 GHz-5.71 GHz); <24 dBm(5 GHz, band3, EIRP)
  • FCC:<21 dBm (2.4 GHz) and (5 GHz)

MANAGEMENT
Omada AppYes
Centralized Management
  • Omada Hardware Controller (OC300, OC200)
  • Omada Software Controller
  • Omada Cloud-Based Controller
Cloud AccessYes. Requires the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Email AlertsYes
LED Control ON / OFFYes
MAC Access ManagementYes
SNMPv1, v2c, v3
Local/Remote System Log AccessSystem Log
SSHYes
Web-Based ManagementYes
Zero-Touch ProvisioningYes. Requires the use of Omada Cloud-Based Controller.

Other
Operating Temperature0°C ~ 40°C
Storage Temperature-40ºC ~ 70ºC
Operating Humidity10% ~90% Non-condensing
Storage Humidity5–90% RH Non-condensing

Accessories

    Download

    EAP615GP Datos Técnicos

    Download (936.98k)
