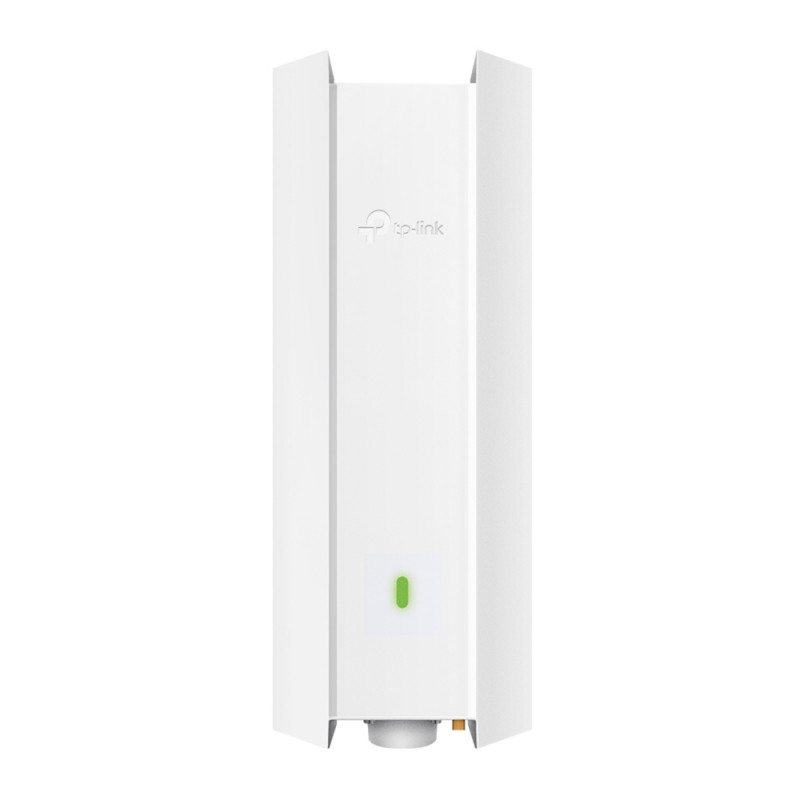

Outdoor Wi-Fi 6 AX3000 Access Point | TP-LINK

TL-EAP650OUT

New product

Outdoor WiFi 6 Access Point (IP67) that delivers speeds of up to 3 Gbps and long-range coverage. Ensures a seamless, uninterrupted connection thanks to Omada Mesh technology and seamless roaming. Enables highly flexible installation in any outdoor environment via PoE power supply.

Reference: TL-EAP650OUT

More details

138,00 € VAT excl.

Add to wishlist

Data sheet

Networking and WirelessAccess Points
Free BandTP-LINK

More info

Omada AX3000 Outdoor WiFi 6 Access Point EAP650-Outdoor

  • Delivers superior dual-band WiFi 6 speeds of up to 3 Gbps with the latest technology and 160 MHz channel bandwidth to double data transmission during peak hours.
  • Ensures greater network efficiency with faster speeds and lower latency for multiple devices thanks to OFDMA and MU-MIMO technologies.
  • Designed for outdoor use with IP67 weatherproof housing, dedicated high-power amplifier, and professional antennas for long-range coverage.
  • Integrates Omada Mesh technology and seamless roaming (802.11k/v/r) for smooth, uninterrupted transmission, allowing devices to switch between access points effortlessly.
  • Enables highly flexible installation powered by PoE+ (802.3at) or 48V Passive PoE (adapter included in the package).
  • Features centralized cloud management through Omada SDN integration, allowing you to manage the entire network locally or remotely via web interface or Omada App.

Key Features

  • Dual-band WiFi 6 speeds up to 3 Gbps (AX3000)
  • 160 MHz channel and 1024-QAM modulation
  • Weatherproof housing with IP67 certification
  • Omada Mesh technology and Seamless Roaming (802.11k/v/r)
  • Support for 250+ concurrent clients
  • Advanced security with WPA3 and Captive Portal
  • Flexible power supply: 802.3at PoE+ and 48V Passive PoE (adapter included)
  • Native integration with Omada SDN (Cloud, OC200, OC300, and software controller)
  • L3 Management, Multi-site Management, and Zero-Touch Provisioning (ZTP)

Package Contents

ModelEAP650-Outdoor
IncludesAccess Point, Passive PoE Adapter, Power Cord, Mounting Kits, and Quick Installation Guide
CertificationsCE, FCC, RoHS

Hardware Specifications

InterfacesPorts1× Gigabit Ethernet (RJ-45) Port with 802.3at PoE and Passive PoE support
ButtonsReset
PowerPower Supply802.3at PoE / 48V Passive PoE
Power Consumption12.5W (EU) / 14.7W (US)
Antennas2.4 GHz2× 4 dBi
5 GHz2× 5 dBi
PhysicalDimensions106.5 × 57 × 281 mm (without antenna & mounting kit)
ProtectionIP67 (Weatherproof)
MountingPole/Wall Mounting (Kits included)

Wireless Features

BasicConcurrent Clients250+
StandardsIEEE 802.11ax/ac/n/g/b/a
Frequency2.4 GHz and 5 GHz
PerformanceSignal Rate• 802.11ax: 8 Mbps to 2402 Mbps
• 802.11ac: 6.5 Mbps to 1083.3 Mbps
• 802.11n: 6.5 Mbps to 300 Mbps
• 802.11g/b/a: 1 Mbps to 54 Mbps
Transmission PowerCE: <20 dBm (2.4 GHz), <30 dBm (5 GHz)
FunctionsAdvanced1024-QAM, OFDMA, MU-MIMO, Omada Mesh, Seamless Roaming (802.11k/v/r), Band Steering, Load Balance, Airtime Fairness, Beamforming, QoS (WMM), Multiple SSIDs (up to 16)
SecurityWPA3-Personal/Enterprise, WPA2/WPA/WEP, Captive Portal, Access Control, MAC Filtering, Client Isolation, SSID to VLAN Mapping, Rogue AP Detection, 802.1X

Management & Software

PlatformOmada SDNCloud-Based Controller, OC300, OC200, Software Controller
Mobile AppOmada App
FeaturesAdvancedZero-Touch Provisioning (ZTP), Multi-site Management, L3 Management, Management VLAN, Email Alerts, MAC Access Management, SNMP v1/v2c, SSH
MaintenanceWeb-based Management, Local/Remote System Log

Physical & Environmental Data

Operating Temperature-30 ... 70 °C
Storage Temperature-40 ... 70 °C
Operating Humidity10 ... 90% RH non-condensing
Storage Humidity5 ... 90% RH non-condensing
System RequirementsMicrosoft Windows XP/Vista/7/8/10/11, Linux

Accessories

Download

EAP650OUT Datasheet

Download (841.85k)
