AirEngine5776-26, 1 ports 2.5GE(PoE) 1 port GE WiFi 7 Access Point | Huawei
HUA-AirEngine5776-26
New product

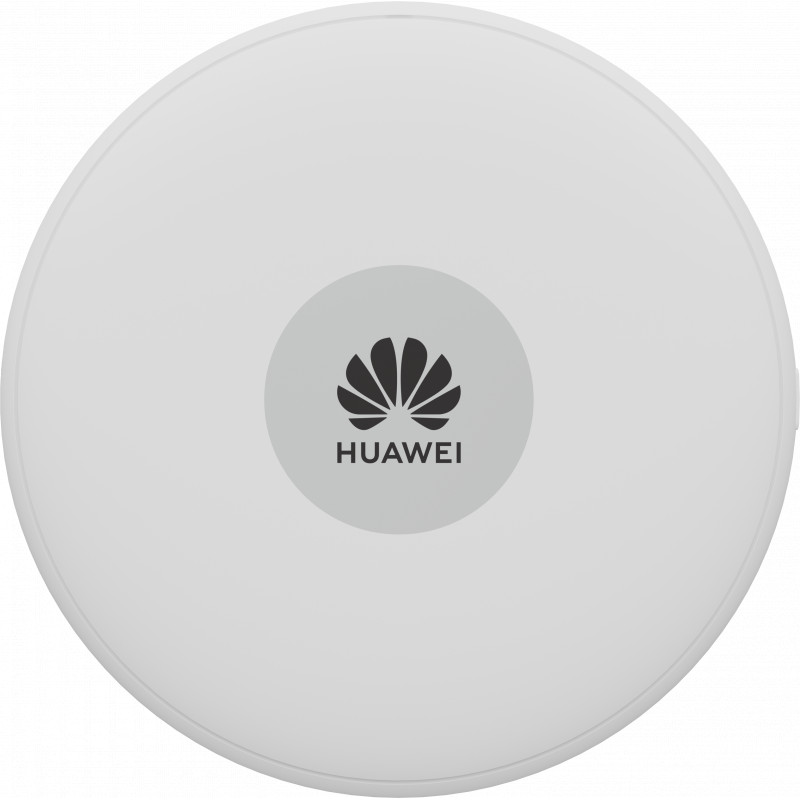

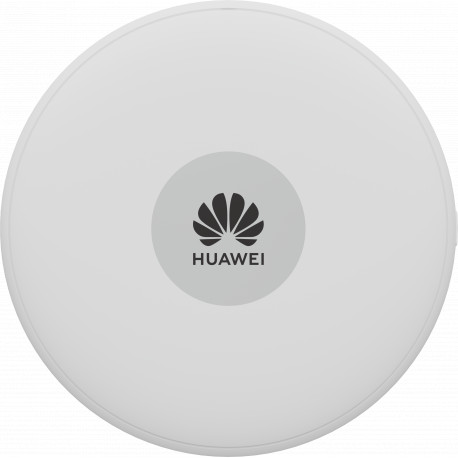

The Huawei AirEngine 5776-26 is an indoor Wi-Fi 7 access point with 4x4 MIMO technology on 2.4 GHz and 5 GHz bands, offering up to 6.45 Gbps speed. Equipped with built-in smart antennas, it ensures a stable, high-quality Wi-Fi signal to enhance the network experience in environments such as offices, schools, and retail stores.
Reference: HUA-AIRENGINE5776-26
Data sheet
| Networking and Wireless | Access Points |
| Free Band | Huawei |
More info
AirEngine5776-26, 2-Port GE/PoE WiFi 7 Access Point | Huawei
AirEngine 5776-26, The Huawei AirEngine 5776-26 is an advanced indoor Wi-Fi 7 access point, operating on 2.4 GHz and 5 GHz bands with 4x4 MIMO technology on each. It offers up to 6.45 Gbps speed thanks to its 8 spatial streams. Equipped with built-in smart antennas, it ensures a constant, high-quality Wi-Fi signal to improve users' wireless network experience. Its compact design facilitates flexible deployment and optimizes customer investment, making it ideal for environments such as small offices, schools, and retail stores.
*Request a quote at tecnico@anvimur.com
Professional Access Point Series
Ideal for professional installations in high-capacity environments, such as Hotels, large shopping centers, stadiums, public buildings, etc. They are designed for high-traffic environments requiring professional management.
Specifications
| Parameters | AirEngine 5776-26 |
| Port Type | 1 x 100M/1GE/2.5GE electrical port 1 x 10M/100M/1GE electrical port 1 x USB port Note: The 2.5GE electrical port supports PoE input. |
| Dimensions (diameter x height) | 220 x 45 mm |
| Input Power | DC: 12 V ±10% PoE power supply: compliant with 802.3at/af. |
| Maximum Power Consumption | 14.8 W (excluding USB) |
| Operating Temperature | –10°C to +50°C |
| Antenna Type | Built-in Smart Antennas |
| MIMO: Spatial Streams | 2.4 GHz: 4x4; 5 GHz: 4x4 |
| Radio Protocols | 802.11a/b/g/n/ac/h/d/f/v/w/r/ax/k/be |
| Maximum Rate | 6.45 Gbit/s |
Features
- Wi-Fi 7 Technology: Wi-Fi 7 (802.11be), also known as IEEE 802.11be or Extremely High Throughput (EHT). It introduces advances such as 320 MHz bandwidth, 4096 QAM, Multi-Resource Unit (RU), Multi-Link Operation (MLO), Enhanced Multi-User MIMO (MU-MIMO), and Multi-AP Coordination. These technologies enable higher data transmission rates and lower latency compared to Wi-Fi 6, with expected network performance exceeding 30 Gbps, approximately three times that of Wi-Fi 6.
- Smart Antennas: It has built-in smart antennas that automatically adjust the coverage direction and signal strength according to the intelligent switching algorithm. This capability allows the AP to flexibly adapt to changes in the application environment, providing precise and stable coverage as STAs (terminal stations) move.
- Cloud Management: It supports local and cloud management modes, and allows Huawei's cloud management platform to manage and operate the APs and their services, reducing network operation and maintenance costs.
AirEngine Wi-Fi 7 with Huawei 5G Technology
Huawei's AirEngine Wi-Fi 7 products outperform other Wi-Fi 7 products in the industry thanks to Huawei's exclusive AI and 5G technologies. They are especially suitable for building high-quality fully wireless networks in both enterprise offices and production and public service environments. AirEngine Wi-Fi 7 products, which comply with Wi-Fi 7 standards, stand out for their revolutionary innovations in antenna, baseband, and radio algorithm technologies. After implementing these products, companies have mobile offices reaching over 10 Gbps, uninterrupted mobile operations with zero packet loss, and 100 Mbps network access anytime, anywhere.
