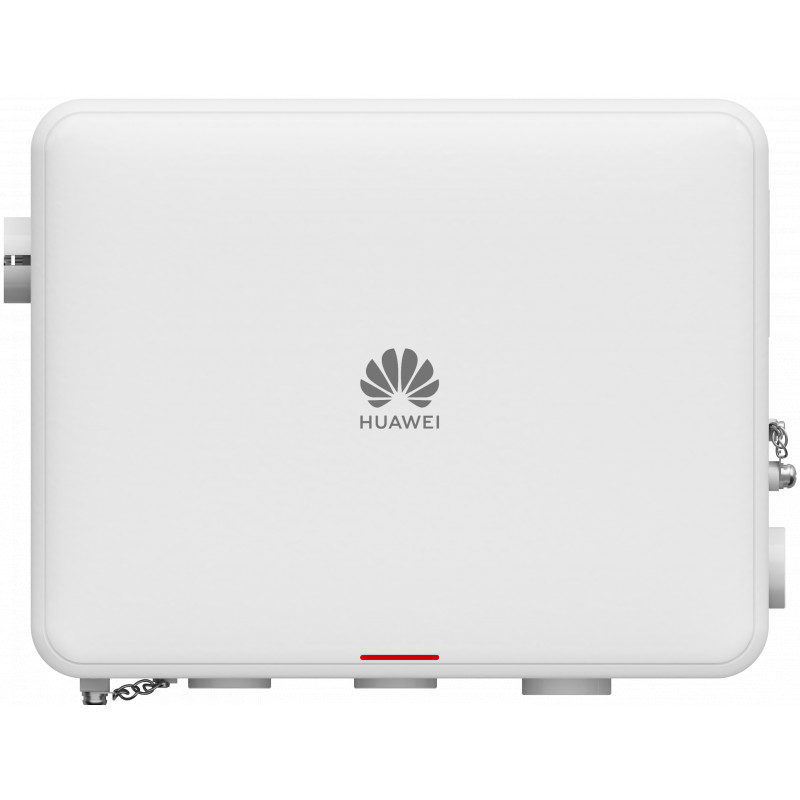

Huawei AirEngine 6776I-X6TH/X7TH – Outdoor Wi-Fi 7 AP Triple Band 13.66 Gbps
HUA-AirEngine6776I-X6TH
New product
Outdoor Wi-Fi 7 access point triple band 2.4/5/6 GHz up to 13.66 Gbps. IP68, 6KA surge protection, -40°C to +70°C. Directional (X6TH) or omnidirectional (X7TH) antennas. Ideal for stadiums and parks.
Ref: HUA-AirEngine6776I-X6TH
Data sheet
| Networking and Wireless | Access Points |
| Free Band | Huawei |
More info
AirEngine 6776I-X6TH/X7TH, Outdoor Wi-Fi 7 Access Point Triple Band | Huawei
AirEngine 6776I-X6TH / AirEngine 6776I-X7TH, The Huawei AirEngine 6776I-X6TH / X7TH is an advanced outdoor Wi-Fi 7 (802.11be) access point, operating simultaneously on 2.4 GHz, 5 GHz and 6 GHz bands with 4x4 MIMO technology on 2.4 GHz and 6 GHz, and 2x2 MIMO on 5 GHz. It offers up to 13.66 Gbps total device speed. Equipped with built-in directional (X6TH) or omnidirectional (X7TH) antennas and external antenna interface, it ensures extensive, high-quality Wi-Fi coverage to enhance the wireless network experience in high-density environments. Its robust design with IP68 water and dust protection, 6KA surge resistance and temperature range of -40°C to +70°C meets industrial-grade requirements. Ideal for stadiums, amusement parks and industrial zones.
*Request a quote at tecnico@anvimur.com
Professional Outdoor Access Point Series
Ideal for professional installations in high-capacity outdoor environments, such as stadiums, amusement parks, industrial zones and public buildings. Designed for massive traffic environments requiring professional management and resistance to extreme weather conditions.
Specifications
| Parameters | AirEngine 6776I-X6TH / X7TH |
| Port Types | 1 x 100M/1GE/2.5GE/5GE/10GE (RJ-45) 1 x 1G/2.5G/10GE SFP+ 1 x 10M/100M/1GE electrical 1 x USB Note: 10GE and GE electrical ports support PoE input. |
| Dimensions (H x W x D) | X6TH: 85 x 220 x 220 mm X7TH: 100 x 220 x 220 mm |
| Weight | X6TH: 3.28 kg X7TH: 3.59 kg |
| Power Input | PoE power supply: compliant with 802.3bt/at Note: With 802.3at/af the AP will operate with restrictions. |
| Maximum Power Consumption | X6TH: 33.1 W (excluding USB) X7TH: 33.5 W (excluding USB) |
| Operating Temperature | -40°C to +70°C |
| Protection Rating | IP68 (dust and water) |
| Surge Protection | 6KA for Ethernet ports |
| Antenna Type | X6TH: Built-in directional antennas, external antenna interface X7TH: Built-in omnidirectional antennas, external antenna interface |
| MIMO: Spatial Streams | 2.4 GHz: 4x4; 5 GHz: 2x2; 6 GHz: 4x4 |
| Radio Protocols | 802.11a/b/g/n/ac/ax/be |
| Maximum Rate | 13.66 Gbit/s |
| Bluetooth | BLE 5.2 |
Features
- Wi-Fi 7 Technology: Wi-Fi 7 (802.11be), also known as IEEE 802.11be or Extremely High Throughput (EHT). Introduces advances such as up to 320 MHz bandwidth, 4096-QAM, Multi-Resource Unit (RU), Multi-Link Operation (MLO), Enhanced Multi-User MIMO (MU-MIMO), and Multi-AP Coordination. These technologies enable higher data transmission rates and lower latency compared to Wi-Fi 6, with expected network performance exceeding 30 Gbps, approximately three times that of Wi-Fi 6.
- Robust Outdoor Coverage: Specifically designed for outdoor environments with IP68 water and dust protection, 6KA surge resistance and temperature range of -40°C to +70°C, meeting industrial-grade requirements to ensure continuous operation in extreme weather conditions.
- Simultaneous Triple Band: Operates simultaneously on 2.4 GHz (4x4 MIMO), 5 GHz (2x2 MIMO) and 6 GHz (4x4 MIMO), achieving speeds of up to 0.69 Gbps, 1.44 Gbps and 11.53 Gbps respectively, for a total of 13.66 Gbps per device.
- Flexible Management: Supports Fit and cloud management modes, allowing Huawei's cloud management platform to manage and operate APs and their services, reducing network operation and maintenance costs. Includes remote maintenance via Bluetooth serial port and CloudCampus app.
AirEngine Wi-Fi 7 with Huawei 5G Technology
Huawei AirEngine Wi-Fi 7 products outperform other Wi-Fi 7 products in the industry thanks to Huawei's exclusive AI and 5G innovations. They are especially suitable for creating high-quality fully wireless networks in both enterprise offices and production and public service environments. AirEngine Wi-Fi 7 products, compliant with Wi-Fi 7 standards, stand out for their revolutionary innovations in antenna, baseband and radio algorithm technologies. After implementing these products, companies have mobile offices reaching over 10 Gbps, uninterrupted mobile operations with zero packet loss and 100 Mbps network access anytime, anywhere.
