EKIT S310S-24T4JX

New product

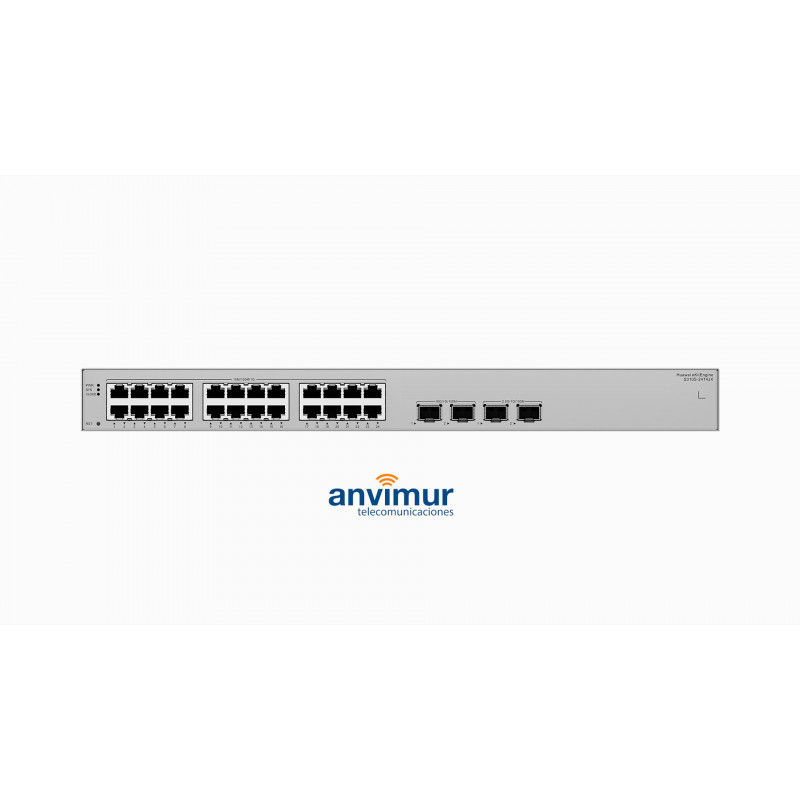

Huawei eKit S310S-24T4JX L2+ Managed Switch with 98 Gbit/s switching capacity, 24 Gigabit Ethernet ports, and cloud-based management

Model: EKIT S310S-24T4JX

More details

Add to wishlist

Data sheet

Networking and WirelessSwitch

More info

HUAWEI eKitEngine S310S-24T4JX (24x1000BASE-T, 2x10GE, 2x2.5GE) | Huawei eKit

The Huawei eKitEngine S310S series switches are fully-managed 10GE switches designed for the small and medium-sized enterprise (SME) market. These switches offer many features, such as flexible Ethernet networking, diversified security control, advanced management methods, higher performance, and extended service processing capabilities.

Features

  • 24 10/100/1000BASE-T ports
  • 2 2.5GE SFP ports
  • 2 10GE SFP+ ports
  • Integrated fanless AC power module
  • L2+ managed switch

Specifications

Switching Capacity98 Gbps
Packet Forwarding Rate73 Mpps
Downlink Port24 10/100/1000BASE-T ports
Uplink Port
  •
  • 2 10 GbE SFP+ ports (10GE)
  • 2 2.5 GbE SFP ports (2.5GE)

Chassis Height1 U
Dimensions43.6 mm x 320 mm x 210 mm
Maximum Power Consumption21.9 W
Rated Input VoltageAC Input: 100 V AC to 240 V AC, 50/60 Hz
Long-term Operating Temperature–5°C to +40°C
Storage Temperature–40°C to +70°C
Operating Humidity5% RH to 95% RH, non-condensing
Heat Dissipation ModeFanless, natural heat dissipation

Accessories

Download

Datos Tecnicos 310 Series

Download (822.85k)
