PA4010PKIT, AV600 Passthrough Powerline Starter Kit | TP-LINK


New product

AV500 Powerline Adapter with AC Pass Through Starter Kit PLC 600Mbps. Power-Saving Mode automatically reduces power consumption by up to 85%.


More details

44,21 €

Add to wishlist

Data sheet

Networking and WirelessPLC

More info

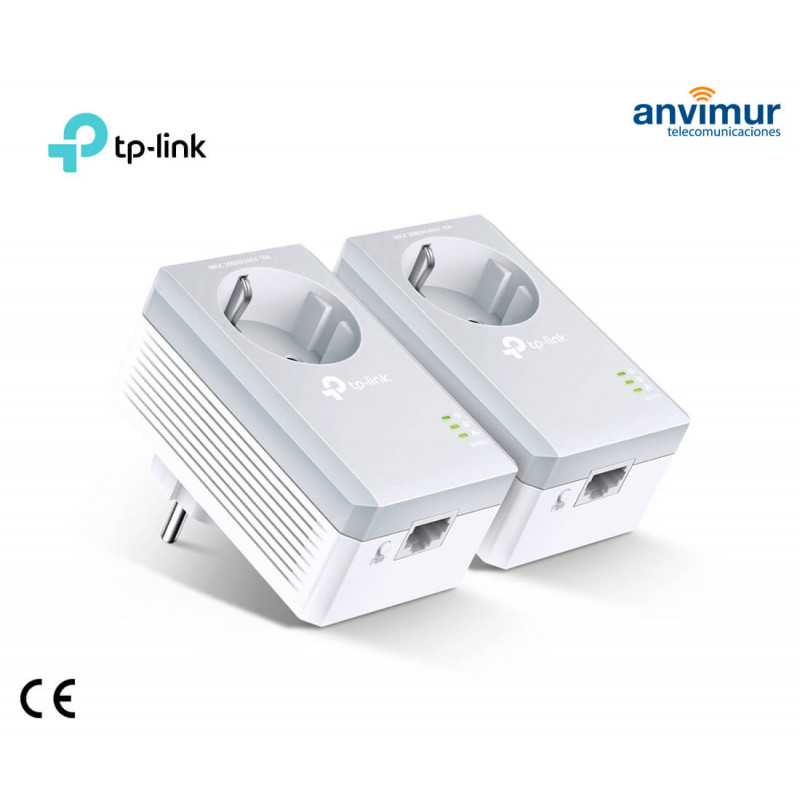

PA4010PKIT, AV600 Passthrough Powerline Starter Kit | TP-LINK

  • HomePlug AV Standard - High-speed data transfer rates of up to 600 Mbps, ideal for lag-free HD or 3D video streaming and online gaming.
  • Integrated Power Socket - Ensures no power outlet goes to waste.
  • Plug and Play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired and wireless connections right away.
  • Patented Power-Saving Mode - Automatically reduces power consumption by up to 85%

With advanced HomePlug AV600, the TL-PA4010P KIT transforms your home’s existing electrical circuit into a high-speed network with no need for new wires or drilling and brings wired network to anywhere there is a power outlet. In addition, its integrated power socket makes sure that no power outlet is going to waste.
Note: Powerline adapters must be deployed in sets of two or more. And TL-PA4010P KIT is compatible with all Routers and other powerline products.


Plug TypeEU, UK, FR
Standards and ProtocolsHomePlug AV, IEEE802.3, IEEE802.3u
Interface1* 10/100Mbps Ethernet Port, Power Socket
ButtonPair Button
Power ConsumptionMaximum: 5.00W (220V/50Hz)
Typical: 4.60W (220V/50Hz)
Standby: 0.72W (220V/50Hz)
LEDPower, Powerline, Ethernet
Dimensions ( W x D x H )3.7 x 2.3 x 1.7 in. (95 x 58 x 42 mm)
RangeUp to 300 meters/1000 feet over existing electrical wiring
Modulation TechnologyOFDM
Encryption128-bit AES Encryption
CertificationCE, FCC, RoHS
Package ContentsPowerline Ethernet Adapter *2
Ethernet cable (RJ45) *2
Resource CD
Quick Installation Guide
System RequirementsWindows 8/7/Vista/XP/2000, Mac OS, Linux*
EnvironmentOperating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Downloads PA4010PKIT: Technical Data, User Guide, ... here.
