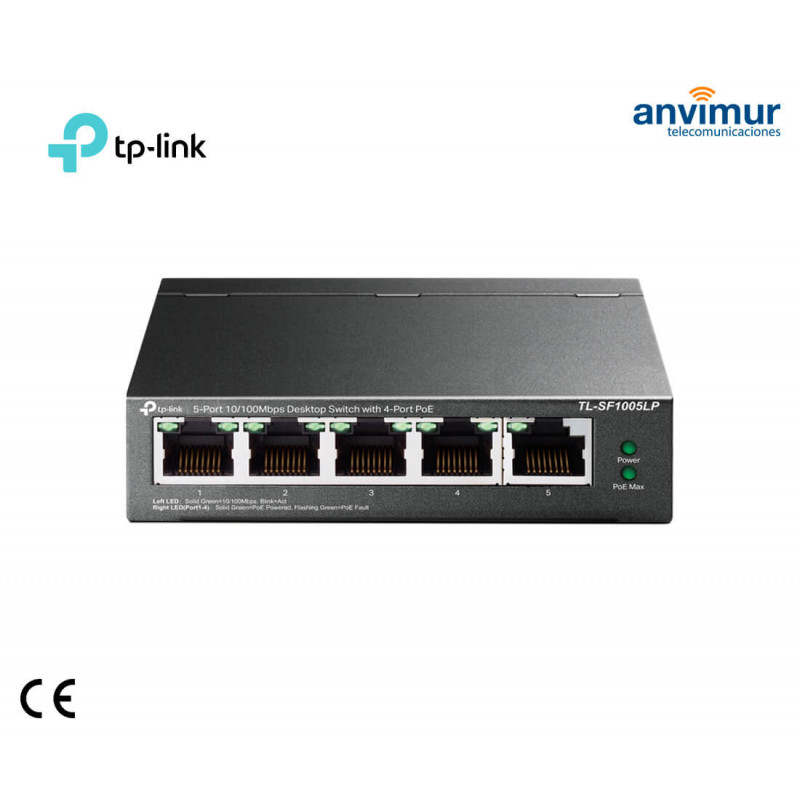

SF1005LP, 5-Port 10/100Mbps Switch with 4-Port PoE | TP-LINK
TL-SF1005LP
New product
TP-LINK Switxh 5× 10/100 Mbps RJ45 ports, 4× PoE ports up to 41W each, 250mts data and power transmitting range.
TL-SF1005LP
Data sheet
| Networking and Wireless | Switch |
More info
SF1005LP, 5-Port 10/100Mbps Switch with 4-Port PoE | TP-LINK
- 5× 10/100 Mbps RJ45 ports.
- 4× PoE ports transfer data and power on individual cables.
- Works with IEEE 802.3af compliant PDs.
- Up to 250 m data and power transmitting range under Extend Mode**.
- Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application.
- Supports PoE Power up to 41 W for all PoE ports*.
- Plug and play with no configuration required.
Specifications
| HARDWARE FEATURES | |
| Interface | • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| Packet Forwarding Rate | 0.744 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1–4 • Power Supply: 41 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1 Gbps |
| Dimensions ( W x D x H ) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Max Power Consumption | • 1.9 W (220 V / 50 Hz, no PD connected) • 47 W (220 V / 50 Hz, with 41 W PD connected) |
| Max Heat Dissipation | • 6.48 BTU/h(no PD connected) • 160.27 BTU/h(with 41 W PD connected) |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4) • Priority Mode Button (Ports 1–2) • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SF1005LP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ℃ (32–104 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
