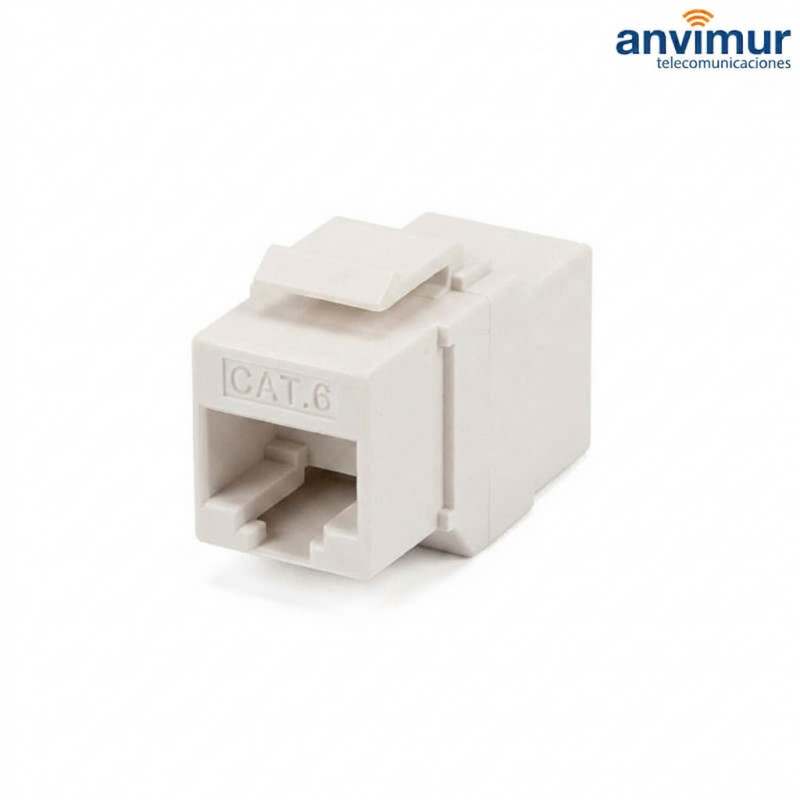

Adapter RJ45 Female/Female UTP CAT6

115-1851

New product

Adapter RJ45 Female/Female UTP CAT6.

115-1851

More details

1,80 € VAT excl.

Add to wishlist

Data sheet

Wiring, Connectors and ToolsRJ45

More info

Adapter RJ45 Female/Female UTP CAT6

Material

  • Plastic Housing: ABS + PC. UL94V-0.
  • RJ45 Jack Contact material & finished:
    • Phosphor Bronze, Round pin.
    • Min. 50 micro-inch Gold plating over 50-60 micro-inch Nickel plated.

Performance

  • Insertion Force_ 900 gms for 8 contacts.
  • Retention Strength: 7.7 kgs between Jack an Plug.
  • Operation Temperature: -40ºC to 80ºC.
  • Durability:
    • Jack: 750 cycles Plug-Jack mating and unmating test, insertion cycles at 20 cycles/minute max. Contact resistance test per 100 cycles.
    • IDC: Max. 200 punching times.
  • The Cat.6 performance is in compliance with the ANSI/TIA/EIA 568 B.2-1 standard.
