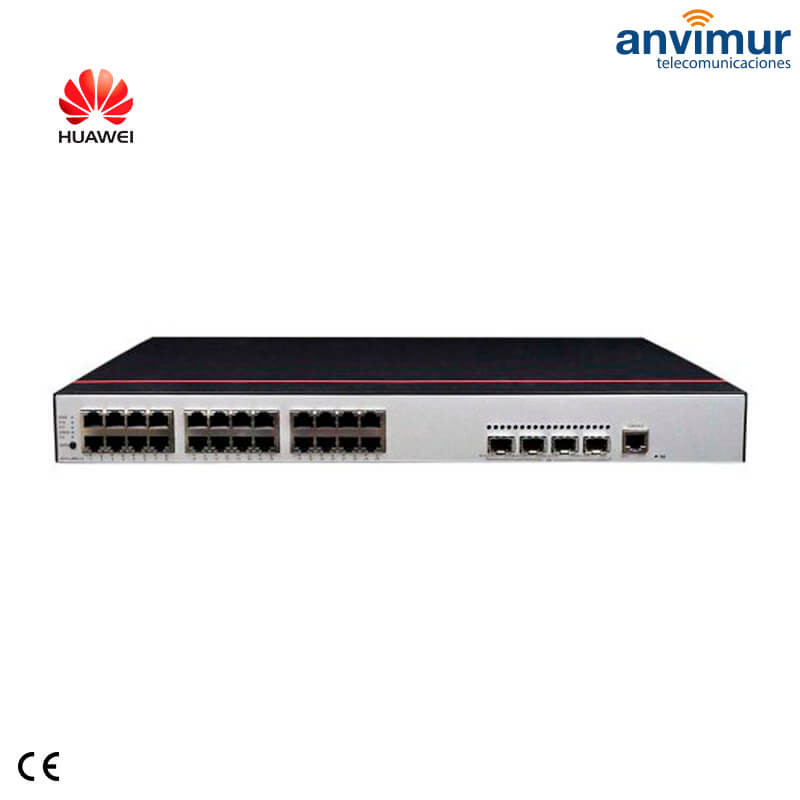

S5735-L24P4S, 24 Port Giga-T Switch with 4xGE SFP, PoE+ | Huawei
HUA-S5735-L24P4S-A1
New product
Huawei S5735-L24P4S-A1 (24*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power).
HUA-S5735-L24P4S-A1
Data sheet
| Networking and Wireless | Switch |
More info
S5735-L24P4S, 24 Port Giga-T Switch with 4xGE SFP, PoE+ | Huawei
Huawei Switch S5735-L24P4S-A1 (24*10/100/1000BASE-T ports, 4*GE SFP ports, PoE+, AC power).
Professional Managed Switch Series for operators and integrators, 10 Gigabit Series.
Ideal for professional installations for CPDs centres, hospitality environments, access point management.
They are intended for mass flow traffic environments requiring professional management.
* Including all standard software licenses.
Features
- Indicators and buttons: The S5735-L24P4S-A1 has similar indicators to the S5735-L24P4X-A1, except that the S5735-L24P4S-A1 does not have a USB indicator. For details, refer to the S5735-L24P4X-A1.
- Power System: The switch has an integrated AC power module and does not support plug-in power modules. The integrated power module can provide 380 W of PoE power, ensuring full PoE power on 24 802.3af-compliant ports or 12 802.3at-compliant ports.
- Heat dissipation system: The switch has two built-in fans for forced air cooling. Air enters from the left side and front panel, and exits from the right side.
Specifications
| Item | Specification |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) |
| Chassis height [U] | 1 U |
| Weight without packaging [kg(lb)] | 2.94 kg (6.48 lb) |
| Weight with packaging [kg(lb)] | 3.91 kg (8.62 lb) |
| Typical power consumption [W] | 41.7 W |
| Typical heat dissipation [BTU/hour] | 142.29 BTU/hour |
| Maximum power consumption [W] | Not providing the PoE function: 53.2 W 100% PoE loads: 433.2 W (PoE: 380 W) |
| Maximum heat dissipation [BTU/hour] | Not providing the PoE function: 181.52 100% PoE loads: 1478.12 |
| MTBF [year] | 55.72 year |
| MTTR [hour] | 2 hour |
| Availability | >0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 50 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 2 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | -5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% to 95%, noncondensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | AC built-in |
| Rated input voltage [V] | AC input: 100 V AC to 240 V AC, 50/60 Hz High-Voltage DC input: 240 V DC |
| Input voltage range [V] | AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz High-Voltage DC input: 190 V DC to 290 V DC |
| Maximum input current [A] | 6 A |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Supported |
| Certification | EMC certification Safety certification Manufacturing certification |
