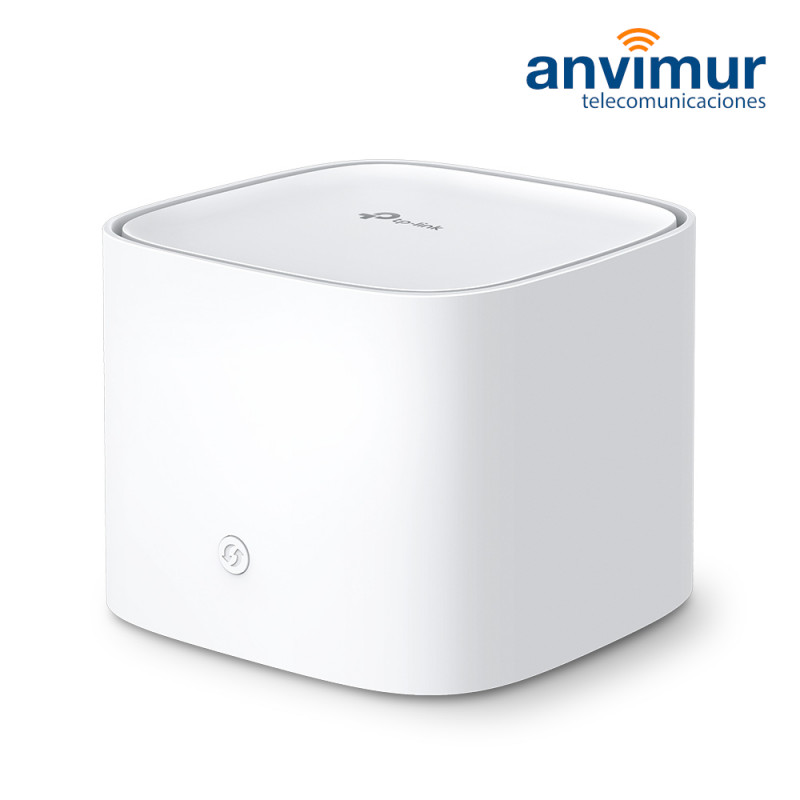

HX520, AX3000 Whole Home EasyMesh WiFi 6 System | TP-LINK
TL-HX520
New product
TP-LINK Whole Home Mesh Wi-Fi Access Point AX3000
Speeds of up to 2402Mbps on 5GHz and 574Mbps on 2.4GHz.
Wi-Fi 6
Reference: TL-HX520
Data sheet
| Networking and Wireless | Extensores |
More info
HX520, AX3000 Wi-Fi 6 EasyMesh Router Gigabit Ethernet | TP-LINK
The translation to English is:
Verified Compatibility with Huawei X6-10 and ZTE 6600P
- Wi-Fi 6 AX3000: Delivers speeds up to 2402 Mbps on the 5 GHz band and 574 Mbps on the 2.4 GHz band, with support for advanced technologies such as OFDMA, MU-MIMO, Beamforming, and WPA3.
- Smart Mesh Network: Compatible with EasyMesh for full coverage, seamless roaming, and self-organizing networks.
- Gigabit Connectivity: Features Gigabit WAN/LAN ports and Ethernet Backhaul support for stable, high-performance connections.
- Efficient Design: Equipped with a 1.3 GHz Dual-Core processor and internal antennas, ideal for modern homes.
- Advanced Features: Includes Parental Controls, QoS, VPN, Firewall, IPTV management, and remote firmware updates.
- Easy Setup: Configure your router in minutes using the intuitive Aginet app.
- Complete Management: Supports TR-069, TAUC, and the Aginet app for easy setup, remote monitoring, and full cloud control.
Specifications
| HARDWARE FEATURES | |
| Interface | 3 Gigabit Ports * Per unit 1 port supports auto-detect WAN/LAN |
| Buttons | Reset Button WPS Button |
| External Power Supply | 12 V ⎓ 1.5 A |
| Dimensions | 120 x 120 x 96.5 mm |
| WIRELESS FEATURES | |
| Wireless Standards | Wi-Fi 6 IEEE 802.11a/n/ac/ax 5GHz IEEE 802.11b/g/n/ax 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | AX3000 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 574 Mbps |
| Transmit Power | CE: <20 dbm="" 2="" 4="" ghz="" 23="" 5="" span=""> |
| Multi-SSID | 2× 5 GHz Multi-SSID 2× 2.4GHz Multi-SSID |
| SOFTWARE FEATURES | |
| Quality of Service | WMM |
| WAN Type | Dynamic IP / Static IP / PPPoE |
| Management | Local Management, Remote Management, TR-069 (TR-098 / TR-181), TR-111, TR-143 |
| Firewall Security | SPI Firewall |
| Protocols | IPv4 IPv6 |
| Advanced Features | Parental Controls, QoS (Quality of Service), Address Reservation, Port Forwarding, Wi-Fi Schedule |
| Encryption | WPA / WPA-PSK2 / WPA3 encryption |
| Operation Modes | Router Mode Access Point Mode |
| Others | |
| Package Contents | HX520 (pack of 1) 1 HX520 unit 1 RJ45 Ethernet cable 1 power adapter 1 Quick Installation Guide |
| Certifications | CE |
| Environment | Operating Temperature: 0 ℃ to 40 ℃ Storage Temperature: -40 ℃ to 60 ℃ Operating Humidity: 10%-90% non-condensing Storage Humidity: 5%-90% non-condensing |
