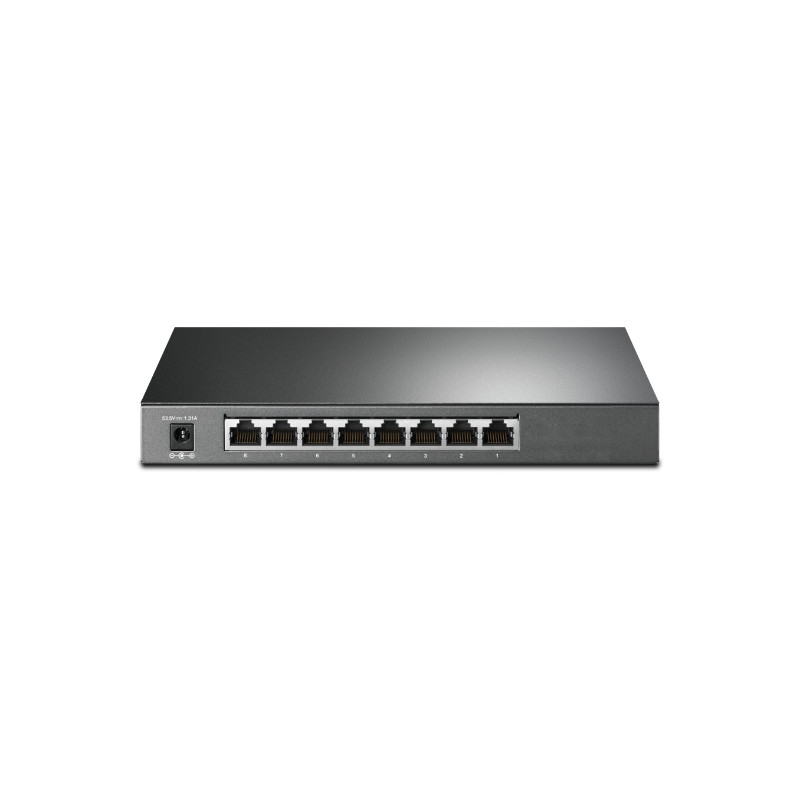

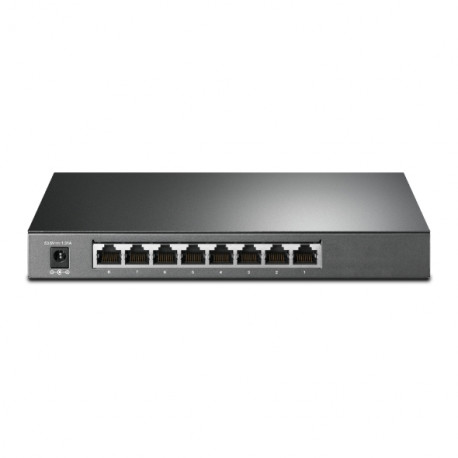

Smart Gigabit JetStream 8-Port Switch with 4 PoE+ Ports
TL-SG2008P
New product
Smart Gigabit JetStream 8-Port Switch with 4 PoE+ Ports
Reference: TL-SG2008P
This product is no longer in stock
Data sheet
| Networking and Wireless | Switch |
More info
Omada TL-SG2008P Gigabit PoE+ Switch, 8 Ports, 62W PoE, Cloud Management
- Gigabit PoE+ switch with 4 PoE+ ports compliant with 802.3at/af providing a total power budget of 62 W, ideal for powering IP cameras, access points, and other compatible devices.
- Features 8 Gigabit ports (4 PoE+ and 4 non-PoE) that ensure high-speed connections and optimal performance in demanding networks.
- Integrated into the Omada SDN ecosystem, it enables centralized cloud management and intelligent monitoring of the entire network from a single point.
- Includes advanced security features: IP-MAC binding, ACL, port security, DoS defense, storm control, DHCP Snooping, 802.1X, and RADIUS authentication.
- Optimizes voice and video applications thanks to L2/L3/L4 QoS and IGMP Snooping, ensuring smooth and prioritized traffic.
- Fanless design, silent and compact, perfect for office and retail environments.
Key Features
- 4 PoE+ ports (802.3at/af) with a total budget of 62 W
- 8 Gigabit Ethernet 10/100/1000 Mbps ports
- Native integration with Omada SDN (Cloud, OC200, OC300, and software controller)
- Switching bandwidth of 16 Gbps
- 8K MAC address table
- Jumbo Frames up to 9 KB
- Full IPv4 and IPv6 support
- Up to 4K 802.1Q VLAN groups
- QoS with 8 priority queues (SP and WRR)
- 802.1X security, ACL, DoS defense, and DHCP Snooping
- Fanless and compact design
- Advanced features: Zero-Touch Provisioning, batch configuration, and smart monitoring
Package Contents
| Model | TL-SG2008P |
| Includes | Switch, power adapter, installation guide, and rubber feet |
| Certifications | CE, FCC, RoHS |
Technical Specifications (Hardware)
| Interfaces | Ports | 8 RJ45 10/100/1000 Mbps (ports 1-4 PoE+ 802.3at/af) |
| Standards | IEEE 802.3i/u/ab/ad/af/at/x, 802.1d/s/w/q/p/x | |
| PoE Ports | Standard | 802.3af / 802.3at |
| Number of PoE ports | 4 | |
| Total PoE power budget | 62 W | |
| Performance | Switching bandwidth / Backplane | 16 Gbps |
| MAC address table | 8K | |
| Packet buffer | 4.1 Mbit | |
| Jumbo Frame | 9 KB | |
| Power | Power supply | External adapter (output: 53.5 Vdc / 1.31 A) |
| Power consumption | 7.9 W (without PD) / 79.2 W (with 62 W PD) |
Software Features
| Quality of Service (QoS) | Priority | 802.1p CoS / DSCP |
| Priority queues | 8 queues | |
| Scheduling modes | SP (Strict Priority) and WRR (Weighted Round Robin) | |
| Storm control | Broadcast / Multicast / Unknown Unicast (kbps / ratio) | |
| L2 / L2+ | Link aggregation | LACP 802.3ad, up to 8 groups / 8 ports per group |
| Spanning Tree | STP 802.1D / RSTP 802.1w / MSTP 802.1s | |
| LLDP | 802.1ab LLDP / LLDP-MED | |
| L2 Multicast | IGMP Snooping | IGMP v1 / v2 / v3 (up to 511 IPv4/IPv6 groups) |
| MLD Snooping | MLD v1 / v2 | |
| VLAN | VLAN groups | Up to 4K groups |
| Types | 802.1Q Tag VLAN, MAC VLAN, Protocol VLAN, Voice VLAN | |
| GVRP | Supported | |
| ACL (Access Control List) | Entries | Up to 230 entries |
| Types | MAC ACL, IP ACL, IPv6 ACL, Time-based ACL | |
| Actions | Permit / Deny, Mirror, Rate Limit, Redirect, QoS Remark | |
| Security | Authentication | 802.1X (port/MAC), RADIUS, MAB, Guest VLAN |
| Network protection | DHCP Snooping, DHCPv6 Snooping, IP Source Guard, ARP Inspection, ND Snooping | |
| Defense | DoS defense, Storm Control, Port Security (up to 64 MAC/port) | |
| Secure management | HTTPS (SSLv3 / TLS 1.2), SSHv1 / SSHv2, IP/Port/MAC access control | |
| IPv6 | Dual Stack | IPv4 / IPv6 |
| Protocols | MLD, ND, ICMPv6, TCPv6/UDPv6, DHCPv6, SNMPv6, SSHv6, SSLv6, TFTPv6 | |
| Management | Platform | Omada SDN (Cloud, OC200, OC300, software controller) |
| Features | Web GUI, CLI, SNMPv1/v2c/v3, RMON (1,2,3,9), Zero-Touch Provisioning | |
| Advanced Features | Functions | Automatic device detection, batch configuration and firmware upgrade, smart monitoring, abnormal event alerts, reboot schedule |
Physical Specifications
| Dimensions (W x D x H) | 209 x 126 x 26 mm |
| Fans | Fanless |
| Operating temperature | 0 ... 40 °C |
| Storage temperature | -40 ... 70 °C |
| Operating humidity | 10 ... 90% RH non-condensing |
| Storage humidity | 5 ... 90% RH non-condensing |
