SafeStream Gigabit Multi-WAN VPN Router TL-ER605, Omada SDN, 5 Ports

• Gigabit VPN router integrated into the Omada SDN ecosystem, featuring Zero-Touch Provisioning (ZTP), centralized cloud management, and intelligent monitoring.

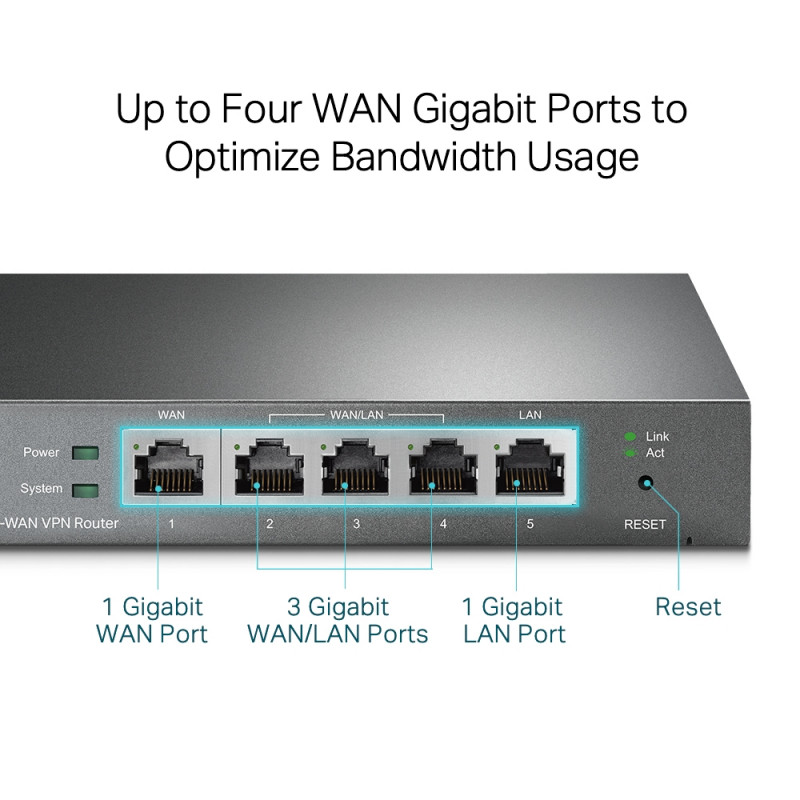

• Features 5 Gigabit ports: 1 fixed WAN, 1 fixed LAN, and 3 interchangeable WAN/LAN ports, allowing configurations of up to 4 WANs to optimize bandwidth usage.
• Offers highly secure VPN with support for up to 20 IPsec LAN-to-LAN tunnels, 16 OpenVPN, 16 L2TP, and 16 PPTP tunnels.
• Includes comprehensive security features: SPI firewall, DoS defense, IP/MAC/URL filtering, access control, and attack protection, ensuring complete network security.
• Enables intelligent load balancing and application-optimized routing, with link backup and online detection.
• Compact and silent design, ideal for small and medium-sized businesses, offices, and retail environments.

Key Features

• 5 Gigabit ports (up to 4 configurable WANs)
• Native integration with Omada SDN (Cloud, OC200, OC300, and software controller)
• Zero-Touch Provisioning (ZTP) with cloud-based controller
• 20 IPsec LAN-to-LAN tunnels
• 16 OpenVPN / L2TP / PPTP tunnels
• SPI firewall with DoS defense and IP/MAC/URL filtering
• Intelligent load balancing and link failover
• Support for 802.1Q VLAN and IPTV (IGMP v2/v3)
• Captive portal with Hotspot (local user, voucher, SMS, Facebook)
• 25,000 concurrent sessions
• IPsec VPN throughput of 41.5 Mbps
• 16 MB Flash / 128 MB DRAM
