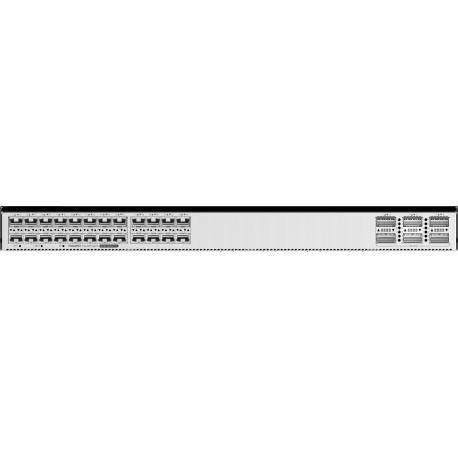

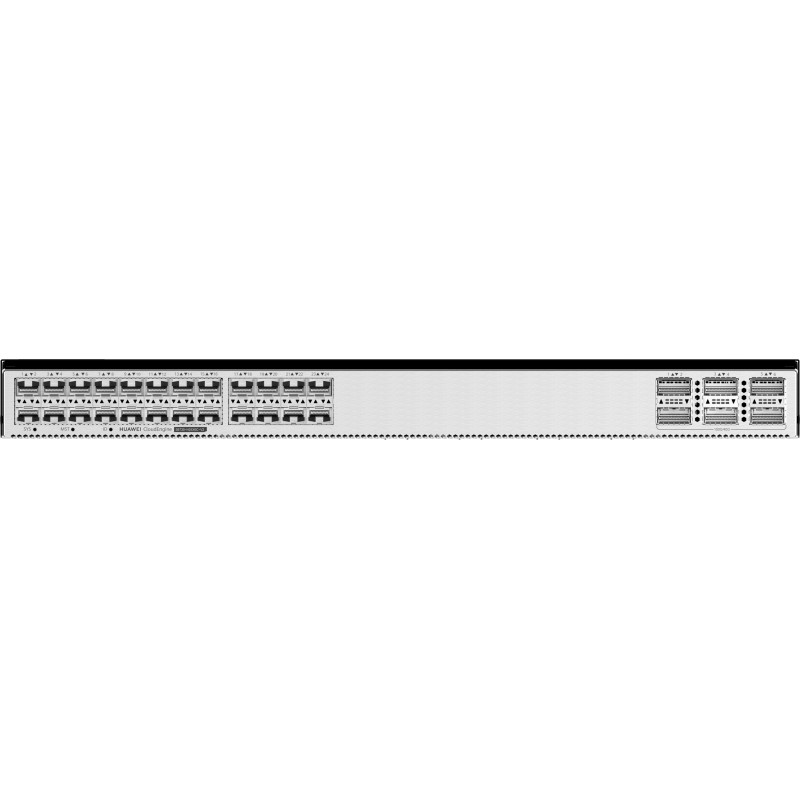

S6730-H24X6-V2, 24 Port 10GE SFP+ Switch with 6x40GE/100GE QSFP28 | Huawei
HUA-S6730-H24X6C-V2
New product
S6730-H24X6C-V2, 24-Port 10GE SFP+ Switch with 6 40GE/100GE QSFP28 ports. 1.68/2.4 Tbit/s switching capacity. L2/L3 managed / Desktop / 19" 1U rack-mount. Layer 2/3 features, IPv4, IPv6, MPLS, SVF, and more. Includes 600W AC power module.
Part Number: HUA-S6730-H24X6C-V2
Data sheet
| Networking and Wireless | Switch |
More info
Core/Aggregation Switch 24-Port 10GE SFP+, 6 QSFP28 40/100GE (AC/DC) S6730-H24X6C-V2 | Huawei
The CloudEngine S6730-H-V2 series switches are next-generation core and aggregation switches for enterprises, offering high performance, high reliability, cloud management, and intelligent operations and maintenance (O&M). Designed with security, IoT, and cloud in mind, the CloudEngine S6730-H-V2 switches can be widely used in enterprise campuses, universities, and other scenarios.
The CloudEngine S6730-H-V2 switches offer 10GE, 40GE, and 100GE port types, flexibly adapting to diversified network bandwidth requirements. They also support cloud management and implement cloud-managed network services throughout the entire lifecycle—from planning, deployment, monitoring, experience visibility, and fault rectification to network optimization—greatly simplifying network management.
Basic License Included (L-MLIC-S67H)
Ideal for large-scale enterprise networks requiring high performance, network virtualization, and intelligent management.
Includes: S67XX-H Series Software License, Per Device
Includes: 600W AC Power Module (Rear-to-Front Airflow)
Specifications
| Fixed Ports | 24 x 1/10 Gig SFP+ 6 x 40/100 Gig QSFP28 (RTU for upgrade to 100GE) 1 expansion slot | |||||
| Switching Capacity | 1.68 Tbps/2.4 Tbps (device/system) | |||||
| Forwarding Performance | 490 Mpps | |||||
| MAC Address Table | Automatic MAC address learning and aging 384K MAC entries (MAX) Static, dynamic, and blackhole MAC entries Source MAC address filtering Port- and VLAN-based MAC learning limitation | |||||
| VLAN Features | 4K concurrent VLANs 4K concurrent VLANif interfaces Access, Trunk, and Hybrid modes Private VLAN QinQ and enhanced selective QinQ VLAN Stacking MAC address-based dynamic VLAN assignment LNP, VCMP, GVRP, GARP | |||||
| Multicast | IGMPv1/v2/v3 and IGMPv1/v2/v3 Snooping PIM-DM, PIM-SM, PIM-SSM Fast-leave mechanism Multicast traffic control Multicast querier Multicast protocol packet suppression | |||||
| IP Routing | IPv4 dynamic routing protocols: RIP v1/v2, OSPF v1/v2, IS-IS, BGP IPv6 dynamic routing protocols: RIPng, OSPFv3, ISISv6, BGP4+ Routing Policy, Policy-Based Routing (PBR) Up to 256K FIBv4 entries (MAX) Up to 80K FIBv6 entries (MAX) | |||||
| IPv6 Features | IPv4/IPv6 dual stack IPv6 routing protocols: RIPng, OSPFv3, ISISv6, BGP4+ Neighbor Discovery (ND) up to 1024 entries Path MTU (PMTU) IPv6 Ping, IPv6 Tracert, IPv6 Telnet | |||||
| VXLAN | Centralized and distributed gateway BGP-EVPN for dynamic VXLAN tunnel establishment Up to 16K VXLAN tunnels Multi-purpose network (one network for multiple uses) | |||||
| Reliability | M-LAG (Multi-Chassis Link Aggregation Group) iStack (up to 9 devices in a stack) LACP and E-Trunk VRRP and BFD for VRRP BFD for BGP/IS-IS/OSPF/static routes Eth-OAM 802.1ag (CFM) SmartLink LLDP, LLDP-MED ERPS (G.8032) STP/RSTP/MSTP, VBST BPDU protection, root protection, loop protection | |||||
| QoS/ACL | Traffic classification based on L2 headers, L3 (IP) protocols, L4 (TCP/UDP) protocols, and 802.1p priority Hardware ACL: 6.5K@320 bits (IPv4 & IPv6) (shared ingress/egress) Actions: ACL, CAR, re-marking, scheduling Queuing algorithms: PQ, DRR, WDRR, PQ+DRR, PQ+WDRR Congestion avoidance mechanisms: WRED and tail drop Traffic shaping 8 queues per interface Network Slicing Device buffer: 18MB | |||||
| Security | Unified user management (wired/wireless) 802.1X, MAC, Portal, AAA authentication RADIUS and HWTACACS authentication MACsec-256 (IEEE 802.1ae) NAC (Network Access Control) Port security Defense against DoS, TCP SYN Flood, UDP Flood, and broadcast storm attacks IPv6 RA Guard Hardware CPU queues for control plane protection Dynamic ARP Inspection IP Source Guard Secure boot Netstream | |||||
| Management and Maintenance | Cloud management Python-based OPS (Open Programmability System) Streaming Telemetry SNMPv1/v2c/v3 Telnet/IPv6 Telnet SSH v1.5 / SSH v2.0 FTP, TFTP, SFTP sFlow RMON BootROM upgrade and in-service remote upgrade Hot patch User operation logs JSON/XML/GPB encoding CRUD Operations 1588v2 eSight and web-based NMS Port mirroring | |||||
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) | |||||
| Dimensions (H x W x D) | 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.5 in.) | |||||
| Chassis Height | 1 U | |||||
| Weight (full configuration) | 8.9 kg (19.62 lb) | |||||
| Power Supply Type | Hot-swappable power modules 1+1 redundant dual power supply (not included) 600W AC / 1000W DC | |||||
| Rated Voltage Range | AC: 100 V AC to 240 V AC, 50/60 Hz High-voltage DC: 240 V DC DC: -48 V DC to -60 V DC | |||||
| Maximum Voltage Range | AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz HVDC: 190 V DC to 290 V DC DC: -38.4 V DC to -72 V DC | |||||
| Typical Power Consumption | 149 W (30% traffic load, ATIS standard) | |||||
| Maximum Power Consumption | 254 W (100% throughput, fans at maximum speed) | |||||
| Cooling System | Air cooling with intelligent fan speed adjustment 4 hot-swappable fan modules Airflow: Front intake, rear exhaust | |||||
| Operating Temperature | -5°C to +45°C (0-1800 m) Derating of 1°C every 220 m (1800-5000 m) | |||||
| Storage Temperature | -40°C to +70°C | |||||
| Relative Humidity | 5%-95% (non-condensing) | |||||
| Maximum Noise | 52 dB(A) (sound pressure LpA) 6.5B (sound power LwA) | |||||
| Surge Protection | AC: ±6 kV differential mode, ±6 kV common mode DC: ±2 kV differential mode, ±4 kV common mode | |||||
| Reliability (MTBF/MTTR) | MTBF: 62.27 years MTTR: 0.5 hours Availability: > 0.99999 | |||||
| Certifications | IEC 62368-1, EN 62368-1, UL 62368-1 FCC CFR47 Part 15 Class A, EN 55032 Class A, CISPR 32/35 Class A EMC, Safety, Manufacturing certification | |||||
