Switch 48 Ports Giga-T 2.5(PoE+) with 4x 10GE SFP+ Ports (AC) | Huawei
HUA-S5735-L48PN4XE-A-V2
New product

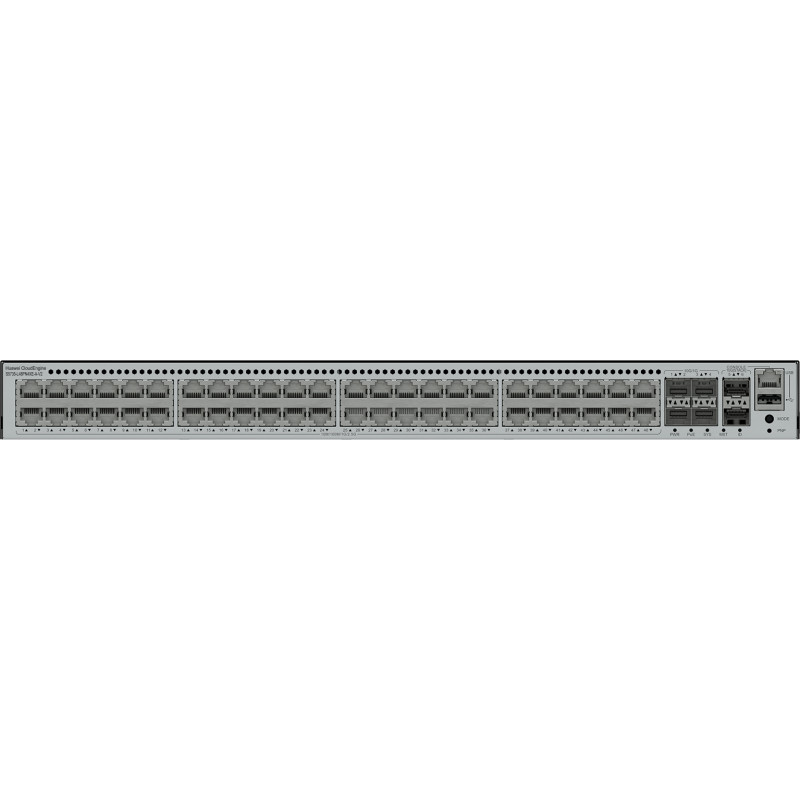

The Huawei CloudEngine S5735-L48PN4XE-A-V2 switch combines 48 Ethernet 10/100/1000/2.5G BASE-T ports (PoE+) with 4x 10GE SFP+ ports, 2x 12GE stack ports, and a built-in 1000W AC power supply (828W PoE).
Reference: HUA-S5735-L48PN4XE-A-V2
Data sheet
| Networking and Wireless | Switch |
More info
High-Performance Switch with 48 Ports 10/100/1000/2.5G Base-T(PoE+), 4 SFP+ (AC) S5735-L48PN4XE-A-V2 | Huawei
The CloudEngine S5735-L V2 2.5GE series switches are ideal for scenarios such as enterprise campus network access and 2.5G to the desktop. Built on next-generation, high-performance hardware and software platforms, the CloudEngine S5735-L V2 switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They also support multiple Layer 3 routing protocols and provide high performance and service processing capabilities.
S57XX-L Series Software License, Per Device included
Ideal for enterprise environments requiring high-speed connections and efficient network management.
Request a free quote from our sales team: tienda@anvimur.com
Specifications
| Fixed Ports | 48 x 10/100/1000/2.5G (PoE+) (828W) 4 x 10 GE SFP+ 2 x 12GE Stack | |||||
| Switching Capacity | 368 Gbps/520 Gbps (device/system) | |||||
| Forwarding Performance | 276 Mpps | |||||
| MAC Address Table | MAC address learning and aging 32K MAC entries (MAX) Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC learning limiting | |||||
| VLAN Features | 4K VLANs Voice VLAN MUX VLAN VLAN Stacking | |||||
| Multicast | PIM DM, PIM SM, PIM SSM IGMPv1/v2/v3, IGMPv1/v2/v3 snooping, MLD snooping Multicast load balancing among member ports of a trunk Interface-based multicast traffic statistics Multicast VLAN | |||||
| IP Routing | Static route, RIP, RIPng, OSPF, OSPFv3, VRRP, VRRP6, Routing Policy, Policy-Based Routing Up to 4096 FIBv4 entries (MAX) Up to 1024 FIBv6 entries (MAX) | |||||
| IPv6 Features | Up to 1024 ND entries (MAX) Path MTU (PMTU) IPv6 ping, IPv6 tracert, and IPv6 Telnet | |||||
| Reliability | LACP VRRP BFD LLDP | |||||
| QoS/ACL | 2K rules per IPv4 ACL 2K rules per IPv6 ACL Rate limiting on packets sent and received by an interface Packet redirection Interface-based traffic policing and two-rate and three-color CAR Eight queues on each interface DRR, SP, and DRR+SP queue scheduling algorithms Re-marking of the 802.1p priority and DSCP priority Packet filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN ID Re-marking of the 802.1p priority and DSCP priority Rate limiting in each queue and traffic shaping on interfaces Network Slicing (VLAN) | |||||
| Security | Hierarchical user management and password protection DoS attack defense, ARP attack defense, and ICMP attack defense Binding of the IP address, MAC address, interface number, and VLAN ID Port isolation, port security, and sticky MAC Blackhole MAC address entries Limit on the number of learned MAC addresses IEEE 802.1x authentication and limit on the number of users on an interface AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC SSH V2.0 Hypertext Transfer Protocol Secure (HTTPS) CPU defense Blacklist and whitelist DHCP client, DHCP relay, DHCP server, and DHCP snooping DHCPv6 client, DHCPv6 relay | |||||
| Management and Maintenance | iStack Cloud management based on Netconf/Yang Virtual Cable Test (VCT) Remote configuration and maintenance using Telnet SNMPv1/v2/v3 RMON eSight and web-based NMS HTTPS SSH V2.0 LLDP/LLDP-MED System logs and multi-level alarms 802.3az EEE IFIT Port Mirroring Registration Center Deployment GVRP iPCA, sFlow, NQA, Telemetry | |||||
| Interoperability | Supports VBST (Compatible with PVST/PVST+/RPVST) | |||||
| Dimensions (H x W x D) | 43.6 mm x 442 mm x 420 mm | |||||
| Built-in AC | Yes (1 x 1000W AC) | |||||
| Rated Voltage Range | 100 V AC to 240 V AC, 50/60 Hz High-voltage DC: 240 V DC | |||||
| Long-term Operating Temperature | -5°C to +50°C (0-1800 m) Reduction of 1°C every 220 m (1800-5000 m) | |||||
| Storage Temperature | -40°C to +70°C | |||||
| Relative Humidity | 5%-95% (non-condensing) | |||||
| Maximum Power Consumption | 110.81 W (without powering devices) 978.5 W (with device powering, 828W) | |||||
