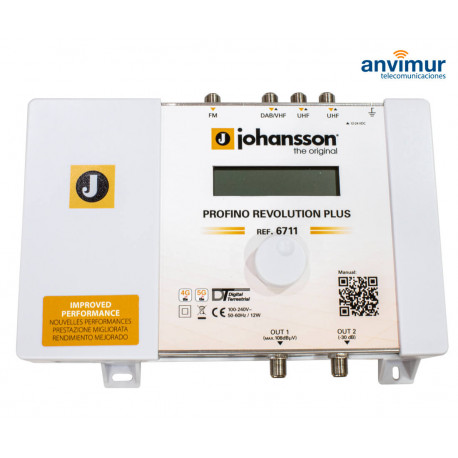

Johansson Programmable Amplifier 6711

The Johansson Profino Revolution Plus is an easy to use programmable filter amplifier and convertor for terrestrial signals. The module optimizes terrestrial VHF/UHF and FM signals from multiple inputs with the goal to provide high quality images on your TV screen. The state-ofthe-art programmable filter amplifier has no equivalent on the market due to its revolutionary technology:

• Can process and convert more than 50 channels (consisting out of 15 filters, each up to 6
  MUXes wide).
• Sharpest filters on the market (50 dB on adjacent channels).
• Real-time AGC on all individual multiplexes.
• Complete flexibility in assigning filters from any input. Each channel can be frequency shifted to any other channel in the VHF or UHF band (Flex Matrix).
• To avoid unauthorized persons changing the settings, all Profiler products can be locked with a security code.
• Made in Europe, for worldwide application.
• 4 inputs: FM / DAB/VHF / 2x UHF / 15 filters / AGC / 12-24 V remote power.
• Product dimensions (H X W X D): 165mm x 217mm x 59mm.

Typical installation

The Profino Revolution Plus can be used to provide high quality television images and FM signals in a wide range of projects, both in the hospitality as in the residential market. Typical buildings or infrastructures where the Profino Revolution Plus can be
used include, but are not limited to:

• Large and small hotels, hostels, bed and breakfasts, holiday parks.
• Hospitals, rest homes, prisons, settlements.
• Large and small multi-dwelling units.

Specifications
