UNIVERSAL FIELD METER TV EXPLORER NG

012-TVEXPLORERNG

New product

Universal Field Meter. Fully compatible with the latest broadcasting standards.

Reference: 012-TVEXPLORERNG

More details

2 990,00 € VAT excl.

Add to wishlist

Data sheet

InstrumentationFagor

More info

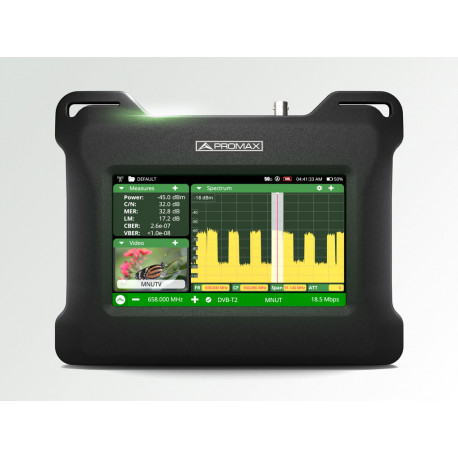

TV EXPLORER NG, Universal Field Strength Meter

The TV EXPLORER NG is the new version of the TV EXPLORER, the field meter that supported the digitization of broadcast transmissions. Today, in a fully digital world, with the rise of Ultra HD-4K and the arrival of DVB-S2x, DVB-T2, and ATSC 3.0, the new TV EXPLORER NG is fully compatible with the latest broadcasting standards.

The new user interface, configurable with modular panels and featuring a multi-touch screen, is as intuitive as today’s instruments should be. Immediate response times are ensured by its multi-core processor. As easy to use as a TV EXPLORER, as agile as your smartphone.

Includes all current technologies: Second-generation DVB standards (including optional DVB-S2x), ISDB-T/Tb, and optionally ATSC 1.0 and ATSC 3.0. Compatible with HbbTV (hybrid television) technology and smoothly decodes video encoded in HEVC H.265, even UHD 4K HDR 10-bit, without any loss in performance.

Generates measurement reports instantly and complies with major regulations such as ICT-2 (Spain).

Specifications

BROADCASTING STANDARDS
Digital Terrestrial TV and RadioDVB-T, DVB-T2 (T2-base, T2-lite), ISDB-T/Tb (full seg / 1seg), DAB, DAB+ (optional)
Digital CableDVB-C, DVB-C2, J.83 annex-B, 16/64/256-QAM
Digital SatelliteDVB-S, DVB-S2 VCM/ACM/CCM, DSS, DVB-S2x (optional)
AnalogAnalog terrestrial (PAL, SECAM, NTSC)


SPECTRUM ANALYZER

  • 5 to 1000 MHz (Terrestrial)
  • 950 to 2150 MHz (Satellite)


INPUTS AND OUTPUTS

  • Universal RF input (F 75 Ω)
  • Analog audio/video input (3.5 mm jack)
  • HDMI™ output (v1.4b up to 3840x2160 pixels @30 Hz)
  • USB 2.0 master/device (Type C) – Storage and remote control
  • Ethernet (RJ45) for webControl and remote commands
  • Optical input (FC/APC, female)
  • Stereo headphone output (3.5 mm jack)
  • Analog audio/video input for CCTV (3.5 mm jack)
  • USB 3.0 host (Type A, USB-CDC devices)


FUNCTIONS

  • Constellation diagram
  • Dynamic echo analysis
  • StealthID (instant digital parameter identification)
  • PLS (Physical Layer Scrambling)
  • Ultra-fast spectrum analyzer
  • 4K decoder
  • Peak hold (max/min retention)
  • FM RDS radio measurement and decoding (optional)
  • Screenshots and Datalogger for measurement reports
  • WiFi
  • Remote control (webControl)
  • MER per carrier
  • TS recording
  • ALP recording
  • Optical power measurement across the entire band
  • 8 GB memory, expandable via USB
  • FM station discovery (optional)
  • Blind scan search


OPTIONS

  • ATSC 1.0 and ATSC 3.0 standards
  • Optical fiber: Selective optical meter
  • Advanced DAB/DAB+ digital radio measurements
  • Advanced FM radio measurements
  • Coverage analysis (drive test) with GPS
