2-Port Pass-Through Socket: FM/TV-SAT
004-5228
New product
2-Port Pass-Through Socket: FM/TV-SAT
Reference: 004-5228
Data sheet
| Reception and Modulation | TV Antennas |
More info
10 dB PASS-THROUGH SOCKET — TELEVES

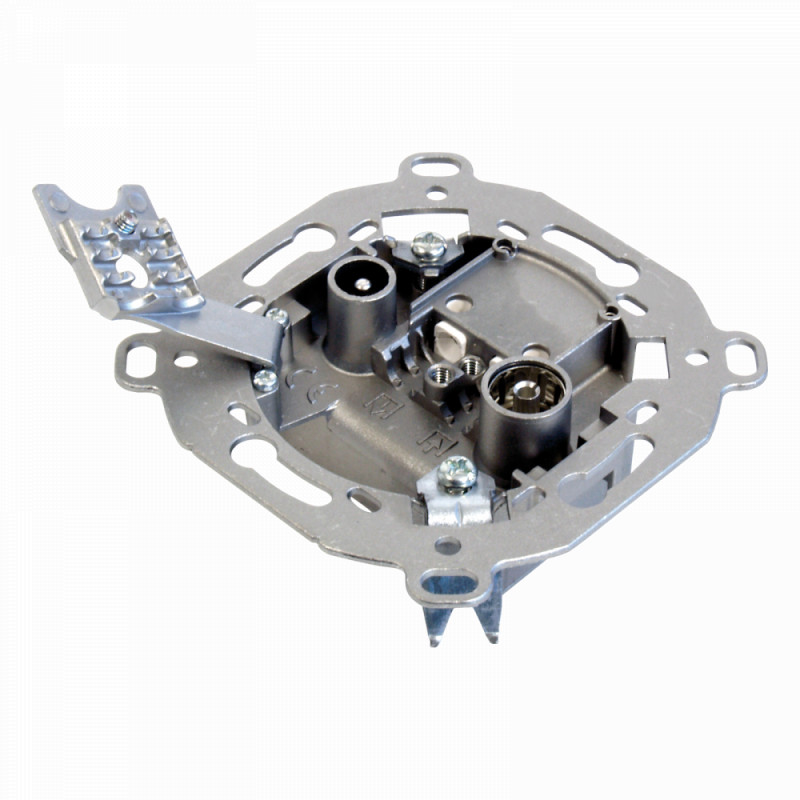

Pass-through box with two CEI connectors. The left one is a CEI male connector for FM (radio) and terrestrial TV, and the right one is a CEI female connector for satellite TV (IF).
It features signal pass-through, allowing for daisy-chaining multiple sockets in series. Due to its insertion loss, it is suitable for installation on approximately the 2nd floor.
- High shielding
- Excellent isolation between outputs
- Made of Zamak, highly durable
- DC pass-through from SAT connector to input, and bidirectional between input and pass-through output
- Compatible with coaxial cables with outer jacket diameter Ø 5...6.9mm
Specifications
| Parameter | Value | ||||
|---|---|---|---|---|---|
| Mounting Method | Screwless | ||||
| Number of Connectors | 2 | ||||
| R/TV Connector | CEI Male | ||||
| SAT Connector | CEI Female | ||||
| Pass-Through Output | Yes | ||||
| Bands |
| ||||
| Frequency Range |
| ||||
| Output Isolation |
| ||||
| Pass-Through Loss |
| ||||
| Attenuation: R/TV Connector |
| ||||
| Attenuation: SAT Connector |
| ||||
| DC Pass | SAT→In / Out→In | ||||
| Max Current | 350 mA |
