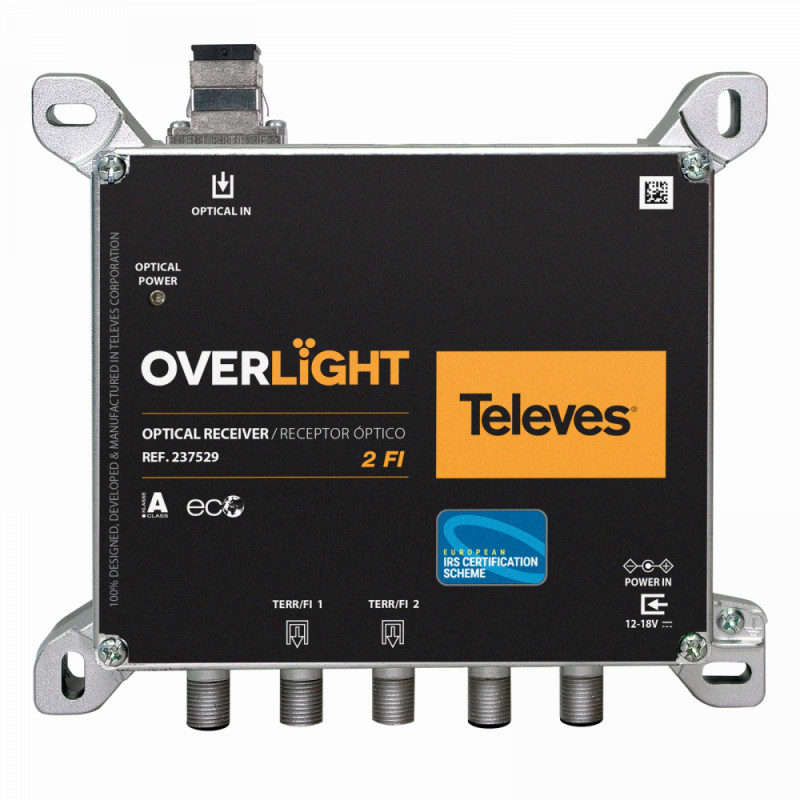

Overlight Optical Receiver – 2 RF+DVB-T Outputs (ICT-2) FM/DAB/UHF/SAT

• Overlight satellite and terrestrial optical receiver compliant with ICT-2 regulations. This device captures combined TV optical signals (1200…1600 nm) via its fiber input, processes them, and recovers the original terrestrial and satellite TV signals, which are then delivered through its two coaxial outputs: DVB-T+IF1 – DVB-T+IF2, corresponding to the two satellite downleads required by ICT-2 standards.
• Thanks to its optimized electronic performance and low insertion loss, the number of required amplifier units can be reduced, simplifying deployment in collective installations while maintaining end-to-end signal quality. It is also fully suitable for GPON installations.
• This device is part of the Overlight system, which distributes satellite and DVB-T signals to multiple users over a single optical fiber.

Highlights

• Compliant with ICT-2 regulation requirements: independent outputs for each satellite downlead (IF)
• Low insertion loss
• Optimized electronic performance
• Very lightweight and compact size (137x120x30 mm)
• 100% European design, quality, and manufacturing
• High-shielding chassis made of Zamak
• SC/APC optical connector
• “F”-type RF connectors
• Wall-mountable
• Power supply included (Ref. 830209)
• LED signal status indicator

Specifications

Physical Data
