OPTICAL SPLITTER T0X SC/APC 32-PORT 17 dB
004-234601
New product
OPTICAL SPLITTER T0X SC/APC 32-PORT 17 dB
Reference: 004-234601
Data sheet
| Reception and Modulation | TV Antennas |
More info

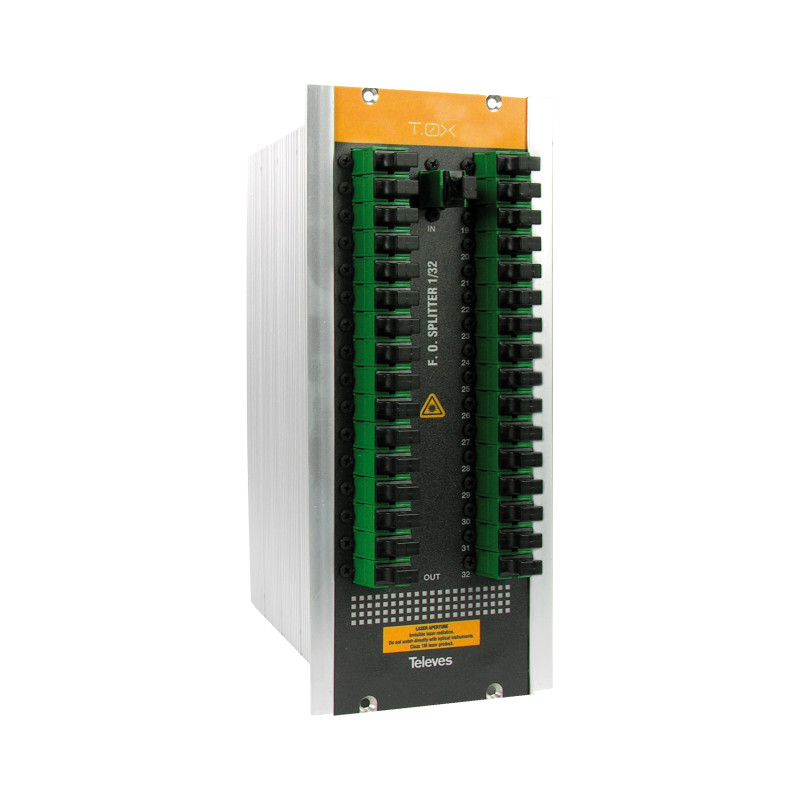

Optical Splitter T0X SC/APC 32-Port 17 dB
32-output optical splitter with SC/APC connectors, designed for optical signals in the 1260…1650 nm wavelength range.
Its T.0X chassis enables rack mounting, ideal for fiber optic headends.
Highlights
- High reliability
- Excellent output uniformity
- T.0X series format
- Low insertion loss
- SC/APC connectors
Specifications
| Number of outputs | 32 |
| Input optical connectors | SC/APC |
| Output optical connectors | SC/APC |
| Fiber type | Single-mode |
| Splitting ratio (per output) | Symmetric |
| Wavelength | 1260 … 1650 nm |
| Insertion loss | < 17.5 dB |
| Return loss | > 60 dB |
| Uniformity | < 2 dB |
| Polarization-dependent loss (PDL) | < 0.3 dB |
| Directivity | > 55 dB |
| Operating temperature | -40 … 85 °C |
Physical Data
| Net weight | 1.105 g |
| Gross weight | 1.105 g |
| Width | 91 mm |
| Height | 219 mm |
| Depth | 183 mm |
| Main product weight | 1.105 g |
