AVANT X Basic programmable multiband amplifier for terrestrial and satellite

004-532113

New product

AVANT X Basic programmable multiband amplifier for terrestrial and satellite, with 32 programmable digital filters

Reference: 004-532113

More details

349,83 € VAT excl.

-25%

466,44 € VAT excl.

Add to wishlist

Data sheet

Reception and ModulationTV Antennas

More info

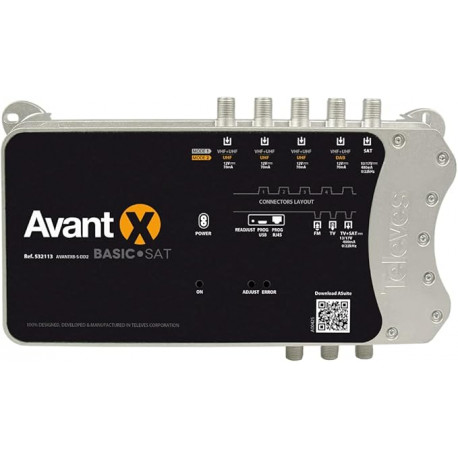

AVANT X Basic Programmable Multiband Amplifier for terrestrial and satellite, with 32 programmable digital filters

  • Multi-input programmable amplifier ideal for individual or collective terrestrial installations, allowing individual programming of up to 32 digital filters across 4 VHF+UHF inputs (DTT).
  • The unit features 6 inputs, configurable in 2 distribution modes: FM-4xVHF/UHF-FI or FM-DAB-3xUHF-FI, providing programmable amplification and balancing of different RF inputs.
  • Thanks to the ASuite software, programming is simple and intuitive via Android or Windows applications.
  • The LTE filtering allows the unit to automatically discriminate filter programming up to channel 48 (LTE700).
  • It offers 2 outputs: one for terrestrial and another for terrestrial+satellite.

Highlights

  • Digital processing technology applied to terrestrial TV signals.
  • Up to 32 individually programmable filters: digital filtering of each channel, even adjacent ones (1 to 4 channels).
  • Digital processing of channels: output channels can be frequency-shifted.
  • Automatic Gain Control (AGC) in each filter: with fine-tuning of the output level.
  • High-selectivity VHF/UHF digital filters: 30dB rejection (@1MHz).
  • SAW filter (Surface Acoustic Wave) for LTE rejection with the best selectivity and stability.
  • TForce Technology: the terrestrial signal level is always stable and adapted to the optimum value.
  • Zamak chassis providing high shielding.
  • Very light and compact size (225x120x55 mm).

Technical Specifications

Number of inputs / outputs6 / 2
BandsFMVHF (DAB)UHFSAT (IF)
Frequency range (MHz)87 ... 108174 ... 230470 ... 694950 ... 2150
Gain (dB)25717141
Programmable output level (dBµV)76 ... 10183 ... 10886 ... 111-
Input voltage / Max. consumption110 ... 230 Vac (50/60Hz) / 20 W
Protection index / Operating temp.20 / -5 ... 45 °C

Physical Data

Net weight841 g
Gross weight841 g
Width226 mm
Height120 mm
Depth53 mm
Main product weight920 g
