New Sale!

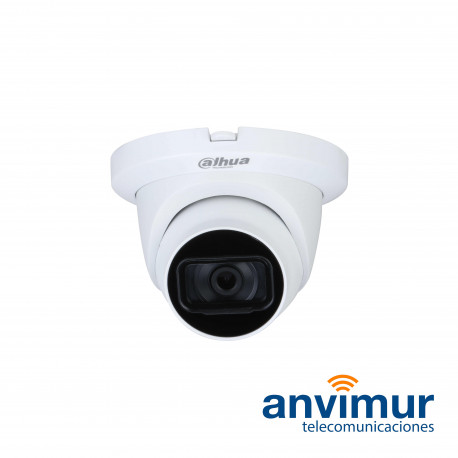

Eyeball Camera - 1080P to 30FPS - HDCVI 4IN1 2MP
018-HAC-HDW1200TLMQ
New product
4 in 1 camera. Support HDCVI, AHD, HDTVI y CVBS. Transmission 1080P for 300m UTP cable.
1/2.7 2MP CMOS Sensor | Megapixel Resolution up to 1080P to 30 FPS | IP67 protection | DC12v power.
Reference: 018-HAC-HDW1200TLMQ
Data sheet
| Security Cameras | Cámaras |
More info
Eyeball Camera - 1080P to 30 FPS - HDCVI 4in1 - 2MP
Features
- Megapixel Resolution up to 1080P at 30 FPS.
- 4 in 1 camera. Supports HDCVI, AHD, HDTVI and CVBS. The four formats can be switched through the OSD menu or through the UTC controller.
- HDCVI Quick-to-install eyeball reduces time and labor costs with its easy pedestal installation, outperforming conventional models.
- OSD menu accessible from the DVR.
- HDCVI technology guarantees real-time transmission at long distance without any loss.
- 1080P transmission up to 300m via UTP cable.
Specifications
| SENSOR | 1/2.7 2MP CMOS |
| MAX. RESOLUTION / FPS | 1080P@30FPS |
| COMMUTATION | Day - Night with ICR Filter |
| MIN. ILLUMINATION | 0.02Lux/F1.9, 30IRE, 0Lux IR on |
| OPTICS | Fixed of 2.8mm (101º), F1.9 |
| TECHNOLOGY | HDCVI (Coaxial o UTP) FullHD |
| CAMERA FUNCTIONS | BLC/HLC/DWDR |
| VIDEO OUTPUT | BNC HDCVI, TVI, AHD o CVBS switchable |
| TRANSMISSION DISTANCE | Up to 800m via Coaxial 75-3 (RG-59) |
| POWER/ CONSUMPTION | 12Vdc Max 2.9W (12V DC, IR on) |
| TEMPERATURE | -40ºC to +60ºC <95% (non-condensation) |
| PROTECTION | IP67 |
| DIMENSIONS / WEIGHT | φ109.9 mm × 88.1 mm / 0.33Kg |
