> >5MP IP Turret Camera with Motorized Optics and 40 m IR
New Sale! 5MP IP Turret Camera Starlight IR40m

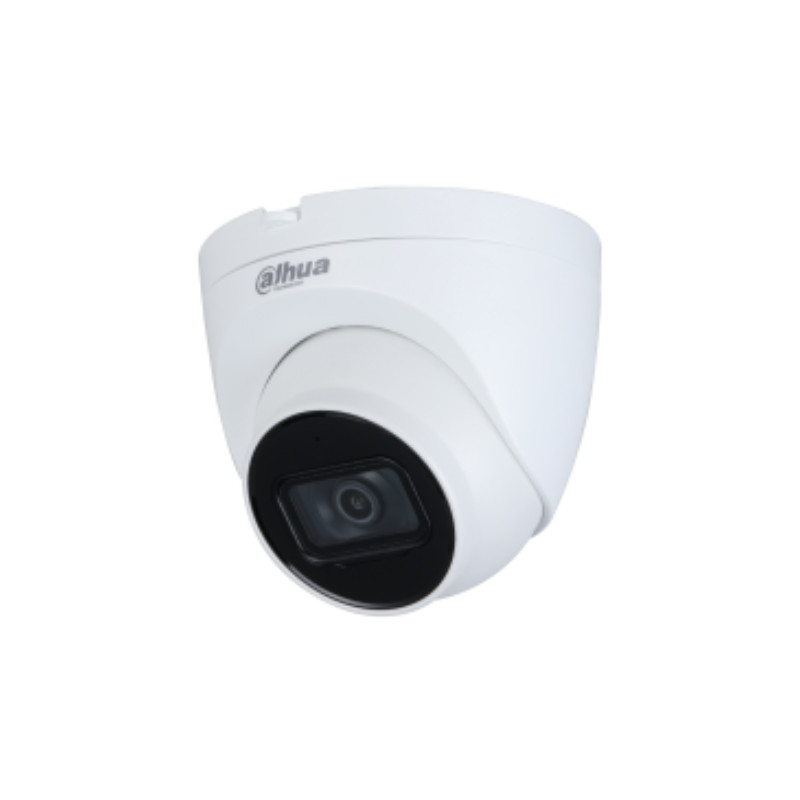

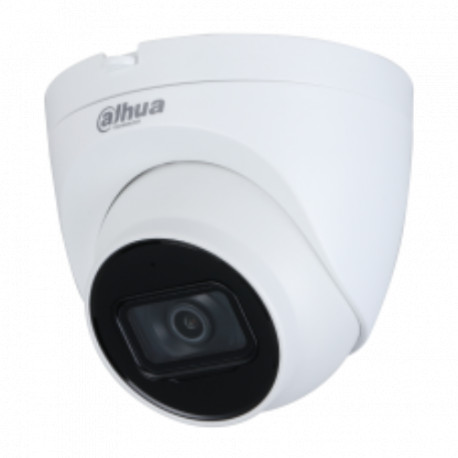

5MP IP Turret Camera with Motorized Optics and 40 m IR

018-IPC-HDW2541T-ZS-S2

New product

5MP Starlight IP Camera with Motorized Optics and 40 m IR

Dahua Starlight 5MP IP camera with 40 m IR, WDR, and IP67 rating

Reference: 018-IPC-HDW2541T-ZS-S2

More details

This product is no longer in stock

142,20 € VAT excl.

Add to wishlist

Data sheet

Security CamerasCámaras

More info

5MP Motorized Optic IP Turret Camera

  • 5 MP 1/2.7″ CMOS image sensor with low-light performance and high-definition imaging
  • Maximum output: 5 MP (2960 × 1668) at 20 fps; supports 2688 × 1520 at 25/30 fps
  • H.265 codec with high compression ratio and ultra-low bit rate
  • Integrated IR LEDs with maximum illumination distance of 40 m
  • ROI, SMART H.264+/H.265+, flexible encoding suitable for diverse storage and bandwidth environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking — applicable to multiple monitoring scenarios
  • Smart Monitoring: Intrusion and fence line detection (both support precise classification and detection of vehicles and people)
  • Anomaly Detection: Motion detection, video tampering, audio detection, SD card missing, SD card full, SD card error, network disconnection, IP conflict, unauthorized access, and voltage detection
  • Supports Micro SD card up to 256 GB; integrated microphone
  • Power supply: 12 VDC / PoE — easy installation
  • IP67 protection rating
  • SMD Plus

Specifications

ParameterValue
Camera
Image SensorCMOS 1/2.7″
Max Resolution2960 (H) × 1668 (V)
ROM128 MB
RAM256 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual: 1/3 s – 1/100,000 s
Minimum Illumination0.007 lux @ F1.5 (Color, 30 IRE)
0.0007 lux @ F1.5 (B/W, 30 IRE)
0 lux (IR on)
Signal-to-Noise Ratio>56 dB
IR Illumination RangeUp to 40 m (131.23 ft)
IR LED ControlAuto; Manual
Number of IR LEDs2 (Infrared LEDs)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeMotorized Varifocal
Lens Mountf14
Focal Length2.7 mm – 13.5 mm
Max ApertureF1.5
Field of ViewH: 113°–31°; V: 58°–18°; D: 138°–36°
Iris ControlFixed
Minimum Focus Distance0.8 m (2.62 ft)
DORI Distance
LensDetect / Observe / Recognize / Identify
EN64.0 m (210.00 ft) / 25.6 m (84.00 ft) / 12.8 m (42.00 ft) / 6.4 m (21.00 ft)
YO210.0 m (689.00 ft) / 84.0 m (275.60 ft) / 42.0 m (137.80 ft) / 21.0 m (68.90 ft)
DORI NoteDORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) defining a human observer’s ability to distinguish persons or objects within a monitored area. These values do not reflect intelligent function detection distances. For intelligent function detection ranges, refer to the installation and commissioning manual or project design tool.
Intelligence
IVS (Perimeter Protection)Intrusion and Fence Line Detection (both support precise classification and detection of vehicles and people)
Smart SearchWorks with Smart NVR for refined smart searches, event extraction, and event video fusion.
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (secondary stream only)
Smart CodecSmart H.265+; Smart H.264+
Video Frame RateMain Stream: 2960 × 1668 @(1–20 fps) / 2688 × 1520 @(1–25/30 fps)
Sub Stream: 704 × 576 @(1–25 fps) / 704 × 480 @(1–30 fps)
*Above values are maximums per stream; for multiple streams, actual frame rates are subject to total encoding capacity.
Stream Capacity2 Streams
Resolution2960 × 1668; 2880 × 1620; 2688 × 1520; 3M (2048 × 1536); 2304 × 1296; 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bitrate ControlCBR/VBR
Video BitrateH.264: 32 kbps – 8192 kbps
H.265: 12 kbps – 8192 kbps
Day/Night ModeAuto (ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White BalanceAuto; Natural; Street Lamp; Outdoor; Manual; Custom
Gain ControlAuto; Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 rectangular areas)
Region of Interest (ROI)Yes (4 areas)
Smart IlluminationYes
Image Rotation0°/90°/180°/270° (supports 90°/270° with resolution ≤2688 × 1520)
MirrorYes
Privacy Masking4 areas
Audio
Integrated MicrophoneYes
Audio CompressionG.711a; G.711μ; PCM; G.726
Alarm
Alarm EventSD Card Missing; SD Card Full; SD Card Error; Network Disconnection; IP Conflict; Unauthorized Access; Motion Detection; Video Tampering; Fence Line; Intrusion; Audio Detection; Voltage Detection; Focus Loss; SMD; Security Exception
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
Network ProtocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour; P2P
InteroperabilityONVIF (Profile S/G/T); CGI
Users/Hosts20 (Total bandwidth: 48 M)
StorageFTP; SFTP; Micro SD Card (up to 256 GB); NAS
BrowserInternet Explorer; Chrome; Firefox
Management SoftwareSmartPSS Lite; DSS; DMSS
Mobile ClientiOS; Android
CybersecurityConfiguration Encryption; Trusted Execution; Digest; Security Logs; PSES; Account Lockout; System Logging; Video Encryption; 802.1x; IP/MAC Filtering; HTTPS; Trusted Update; Trusted Boot; Firmware Encryption; X.509 Certificate Generation and Import
Certification
CertificationsCE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 and CAN/CSA C22.2 No. 62368-1-14
Power Supply12 V DC / PoE (802.3af)
Power ConsumptionBase: 2.4 W (12 V DC); 3 W (PoE)
Max (H.265+ max resolution + max stream + WDR + IR intensity + IVS): 6.2 W (12 V DC); 7.4 W (PoE)
Environment
Operating Temperature–30 °C to +60 °C
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C
Storage Humidity≤95%
Protection RatingIP67
Housing
Housing MaterialMetal
Product Dimensions108.3 mm × Ø122 mm
Net Weight0.68 kg
Gross Weight0.86 kg

Accessories
