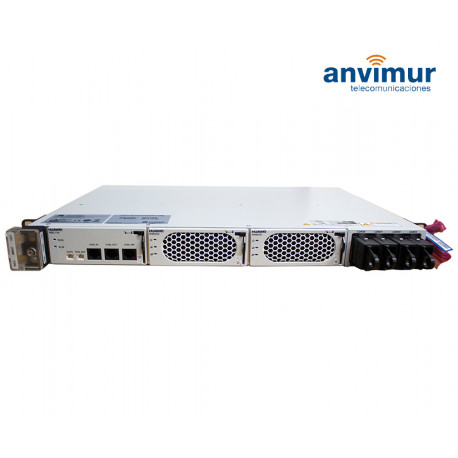

OLT power supply, 53.5V 100A
FUENTEPON100
New product
OLT power supply, 53.5V and 100 A
two PSU R4850G2 50A module + 4 Power output port, each provide 25A MAX + one PMU 11A management and monitoring module PMU 11A
compatible with HUAWEI OLT
Data sheet
| GPON | OLT |
More info
OLT power supply, 53.5V 100A
ETP48100-B1 OLT Power supply
ETP48100-B1-100A is a carrier-class AC/DC power converter, convert 220V/110V AC power to -48V DC power, MAX output 100A. ETP48100-B1-100A have 4 output, each MAX output 25A; If equipped with two R850G2, total output can be 100A.
This PSU is supplied with one PSU R4850G2 rectifier module giving a 53.5V / 100A output, a PMU 11A monitoring module and a free slot to install another module and power up to 100A
Huawei OLT compatible
Overveiw:
ETP48100-B1 subrack composed by PSU(R4850G2), PMU(11A)
4 Power output port on ETP48100-B1 subrack, each provide 25A MAX
1 R4850G2 module condition, total MAX output is 50A
2 R4850G2 module condition, total MAX output is 100A
Easy output power cable connection with removable ports
Specification | |
| Input voltage | 220 V AC single-phase voltage range: 176 V AC to 290 V AC |
| Input voltage frequency | 45 Hz to 65 Hz |
| Output voltage | Voltage range: -42 V DC to -58 V DC |
| Output current | 30 A for the 220 V AC single-phase input power |
| Surge protection capability | 2 kV in differential mode 4 kV in common mode |
IMPORTANT NOTE
The installation of the output cables that are included with the HUAWEI OLT should be made considering the colors of the wires for this case are blue for negative and black for positive, as indicated in the cable itself, such as shown in the following image:
