> >Premium Vertical Enclosure for 4+8SC Ports and 36 Fusions | HTTC01
Previous Next

Premium Vertical Enclosure for 4+8SC Ports and 36 Fusions | HTTC01

FO-HTTC01

New product

Distribution Box (DB). Ports: 6 | Diameter: <16mm | Fusions: 36 | Trays/Fusions: 1x12+1x24 | Splitter PLC: 1:2/4/8 | Adapters: 8 WSC/APC SX | Dimensions: 305x170x126mm | Protection: IP65 | Application: Wall.

FO-HTTC01

More details

28,70 € VAT excl.

Add to wishlist

Data sheet

Splice closureVertical Fiber Optic Splice Closure

More info

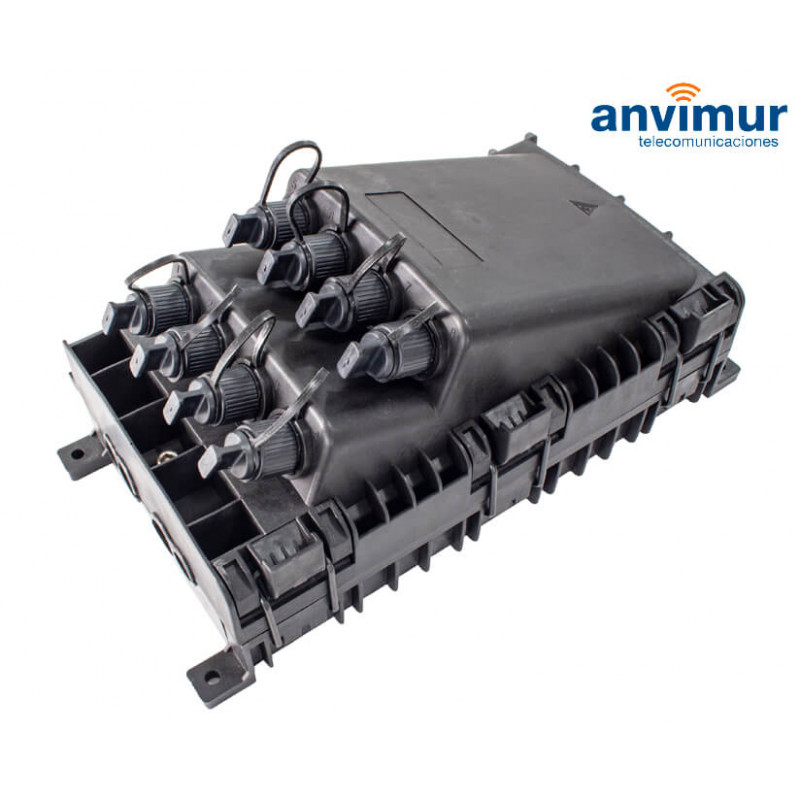

Premium Vertical Enclosure for 4+8SC Ports and 36 Fusions

Premium Vertical Enclosure for up to 8 output drop cables direct from the same box. Ideal for outdoor wall installation. Made from high quality waterproof and dustproof material (PP), with anti –UV and treated against aging; IP65 protection.

Distribution Box (DB) has 4x Ø<16mm input/output ports + 8x WSC/APC port and 36 splice fusions (1x tray for 12 fusions and install PLC Splitter + 1x tray for 24 fusions). Can be installed on Wall. IP65 protection.

Specifications

ModelFO-HTTC01
Nº Ports4+8SC
Diameter Ports< 16mm
Nº Fusions36
Trays / Fusions1x12 + 2x24
PLC Splitter1:2/4/8
Adapters8 WSC/APC SX
Dimensions (mm)305x170x126
IP ProtectionIP65
ApplicationWall

(Including all Installation Accessories)

(DOES NOT INCLUDE PIGTAILS OR SPLITTER)

Accessories

Download

Data Sheet FO-HTTC01

Download (131.8k)
