> >24PRYSMIAN - 24 VP Fiberglass and polyethylene coating (6 tubes x 4 fibers)

24PRYSMIAN - 24 VP Fiberglass and polyethylene coating (6 tubes x 4 fibers)

FO-CVP24PRYSMIAN

New product

VP TV05891 - Glass fibre and polyethylene sheath, cables with rodent protection.

24 fibre cable (6 tubes x 4 fibres) type G652.D, Ø9.3mm, tensile strength 3.000 Newtons.

Price per metre.

FO-CVP24PRYSMIAN

More details

This product is no longer in stock

0,69 € VAT excl.

The minimum purchase order quantity for the product is 2000

Add to wishlist

Data sheet

FTTx Single Mode Fiber Optic CableMultitube Fiber Cable

More info

24PRYSMIAN - 24 VP Fiberglass and polyethylene coating (6 tubes x 4 fibers)

Application TV05891

VP cables are very suitable for installation in ducts or as façade distribution cables and in places where rodents may be present and a dielectric cable needs to be installed. They can be installed by blowing or pulling. Glass yarn reinforcement provides moderate rodent protection. Please refer to the Installation Guide; ask for it at our Sales office.

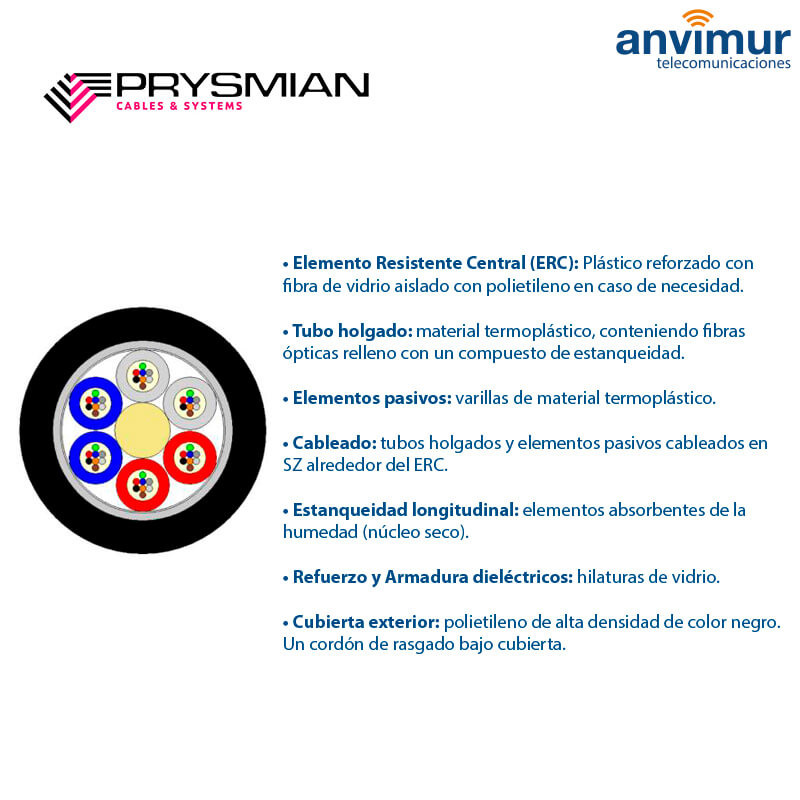

Cable desing

  • Central Resistant Element (ERC): Glass fibre reinforced plastic insulated with polyethylene if necessary.
  • Loose tube: thermoplastic material, containing optical fibres filled with a sealing compound.
  • Passive elements: thermoplastic rods.
  • Wiring: loose tubes and passive elements wired in SZ around the ERC.
  • Longitudinal sealing: moisture absorbing elements (dry core).
  • Dielectric reinforcement and armouring: glass yarns.
  • Outer sheath: black high density polyethylene. A tear cord under the cover.

Specifications

No. of fibres24
Design (tube x fibre)6 tubes x 4 fibres
Cable diameter 9.3 mm
Cable weight (kg/km)70 kg/km

Multitube.

No. of fibresNo. F4 -> 24 8 -> 48 6496128256512
Design (tubes x fibres)T x F6 x 4 6 x 8 8 x 8 12 x 8 (4 +12) x 8 (4+12) x 16 (4+12) x 32
Cable diameter mm 9,39,310,613,213,314,818,9
Cable Weight kg/km 707590145140175280
Minimum Bend Radiusmm Under Maximum Voltage: 20 x Cable Ø | Off Voltage 15 x Cable Ø
Temperature range °C Transport & Storage: -30 → +70 | Installation: -10→ +50 | Operation: -25 → +70

Main features

Test Method Specified value Acceptance criteria
Tensile strength IEC 60794-1-21-E1 3000 N reversible
Crushing IEC 60794-1-21-E3 1500 N / 100 mm max. 15 min reversible, undamaged
Impact IEC 60794-1-21-E4 5 Nm, 3 impacts, R= 300 mm reversible, undamaged
Bending Radius IEC 60794-1-21-E11 R=20 x D, 3 turns, 3 cycles 0.05 dB, undamaged
Temperature Range IEC 60794-1-22-F1 -25°C to +70°C 0.05 dB/km
Water Penetration IEC 60794-1-22-F5B 3 m cable, 1 m water, 24 h No water passage

NOTE: Different fiber types and configurations available upon request. Fiber according to ITU-T recommendations. WB dry core and SZ wiring.

* If you need other configurations, please contact our sales department.

Anvimur Telecomunicaciones only supplies optical fibre cables, manufactured in Europe, in order to be able to offer its customers the highest quality guarantee.

WARNING

THE PRICE PER METRE IS SHOWN FOR INFORMATION PURPOSES, THE FIBRE OPTIC CABLES ARE SUPPLIED IN COILS OF APPROXIMATELY 2000 METRES.
