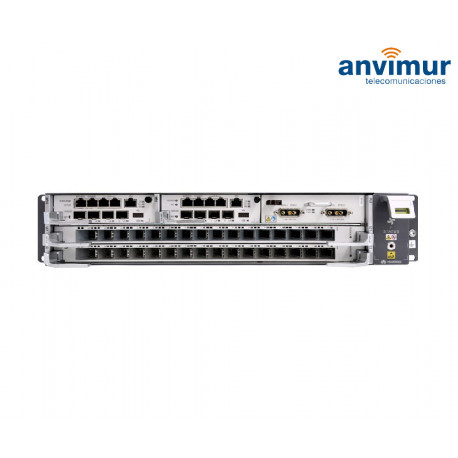

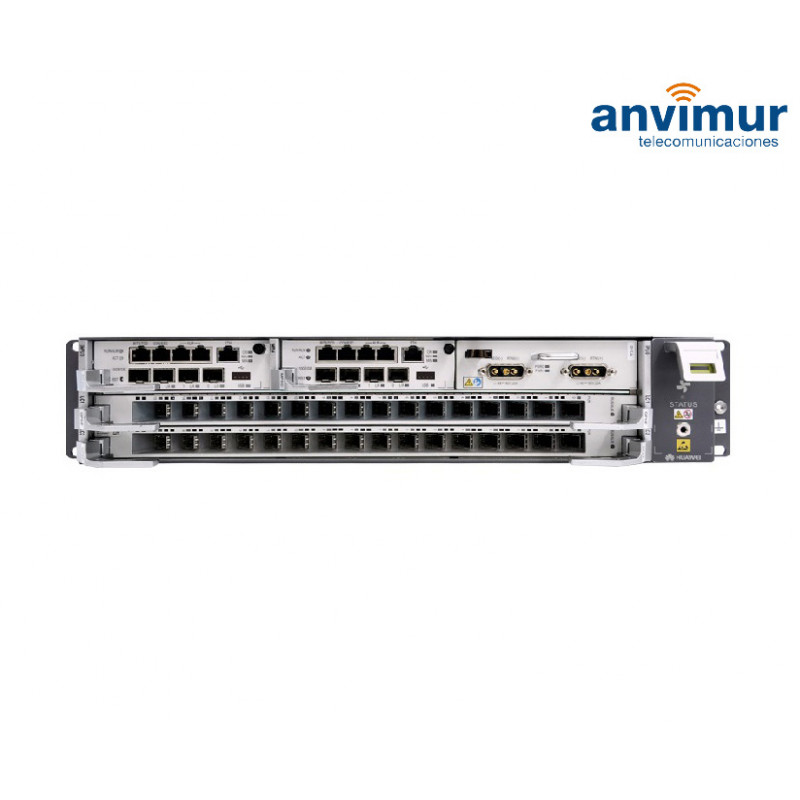

OLT Headend Huawei MA5800 X2 48V 16 PON C+

FO-MA5800-X2-A1.1

New product

Chassis MA5800 X2 for deployments in Hotels, Residential, small projects, possibility to serve up to 32 PON, about 2048 clients per chassis in 1:64 Split.

More details

2 850,00 €

Add to wishlist

Data sheet

GPONOLT

More info

OLT Huawei MA5800-X2 48V 16 PON C+ REDUNDANT

This chassis is recommended for deployments in residential areas, hotel complexes, small population centers.

The chassis MA5800 X2 V2 incorporates as standard:

  • An 16 PON C+ card including the GPON SFPs.
  • Two control cards and 4 UPLINK ports of 1Gb /10Gb each
  • Two SFP + Gb
  • A -48 V power supply card for installation with external power supply.
  • Connection cables to external power supply
  • Programming Manual in Digital Format
  • Manufacturer's One Year Warranty

MA5800X2V2

Specifications:

Specifications

input voltage
DC Power supply: -48V / -60 V
Dimensions WxDxH
88.1 mm x 535.0 mm x 268.7 mm / 2U rack height 19"
Max input current
DC Power supply: 20A
typical power consumptionEquipment running at full capacity: 300W
Weight (empty chassis)9.4kg
