OTB 2+16 Ports and 6 Fusions

FO-MPA8SC

New product

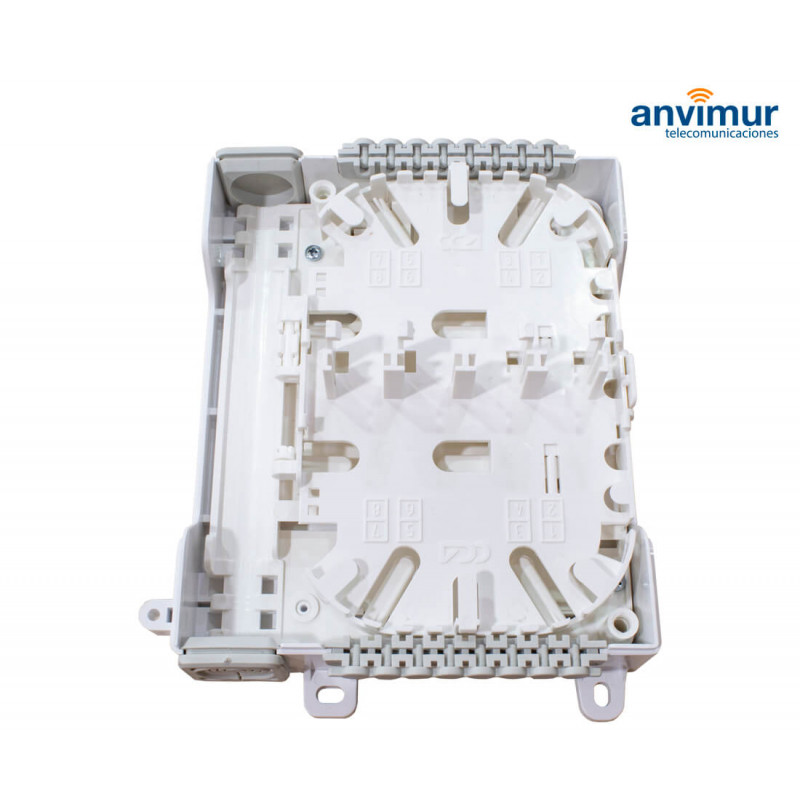

Optical Terminal Box (OTB). Ports: 2+16 | Diameter: < 14mm | Fusions: 6 | Trays/Fusions: 1x6 | Splitter PLC: - | Adapters: 8 SC SX | Dimensions: 150x126x51 | Protection: IP54 | Application: Wall. Use in ICTs.



Reference: FO-MPA8SC

More details

12,50 €

Add to wishlist

Data sheet

Fiber Optic DistributionTermination distribution box indoor

More info

OTB 2+16 Ports and 6 Mergers

Optical Terminal Box (OTB). It has 2 input/output ports Ø<14mm + 16 drop cable ports Ø<4mm, for 6 splice fusions (1 tray of 6 fusions), 8 SC SX adaptors. Possibility to install on Wall. ABS material and IP54 protection.

Specifications

ModelFO-MPA8SC
Nº Ports2 + 16
Diameter Ports< 14mm
Nº Fusions6
Trays / Fusions1 x 6
Splitter PLC-
Adapters SC8 SC SX
Dimensions (mm)150x126x51
IP ProtectionIP54
ApplicationWall

(Including all installation accessories)

(DOES NOT INCLUDE ADAPTERS, PIGTAILS OR SPLITTER)
