2 ports Fiber Optic Outlet

FO-ROSETA2SC

New product

Optical rosette for FTTH with two SC ports. Includes two splice sleeves, two screws and two plugs.

Does not include adapters or pigtail.


Reference: FO-ROSETA2SC

More details

0,99 € VAT excl.

Add to wishlist

Data sheet

Fiber Optic DistributionTermination distribution box indoor

More info

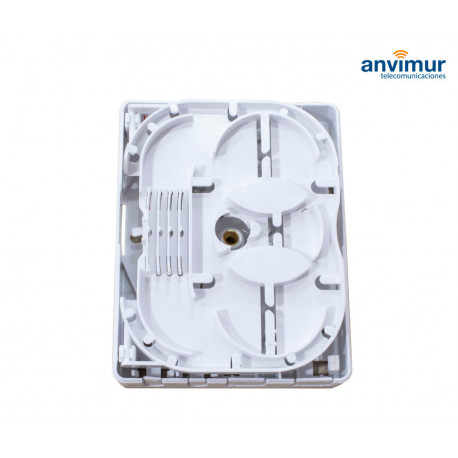

Rosette Optics 2 ports SC

FTTH rosette for light and compact optical fiber, specifically indicated for the protected connection of fiber cables and pigtails in FTTH.

Characteristics

  • Easy organization of fiber and pigtails inside with three slots for fusion sleeves.
  • It has 2 ports for optical adapters for the interconnection of the user's connector with that of the inner pigtail
  • It has 2 ports for connection cable up to a maximum of 8mm.
  • Includes two splice sleeves, two screws and two plugs.
  • Dimensions (W x D x H): 110mm x 80mm x 27mm.

Specifications:

Type SP-1601-2E
Size(mm) W*D*H 110x80x27
Material PC+ABS
Cable Ports SC 2ports, LC 4ports
Scope of Application 3.0*2.0mm drop cable or indoor cable
Max capacity of splice 4(single fiber)
Adapter type SC Simplex Adapter; LC Duplex Adapter
Pigtail Type SC/LC 0.9mm Pigtails
Color White
Weight 0.4KG

Accessories

Download

Datos Técnicos

Download (80.13k)
