Outdoor Distribution Cabinet FTTH for 18U 19" IP54 IK10 | FTTH18US

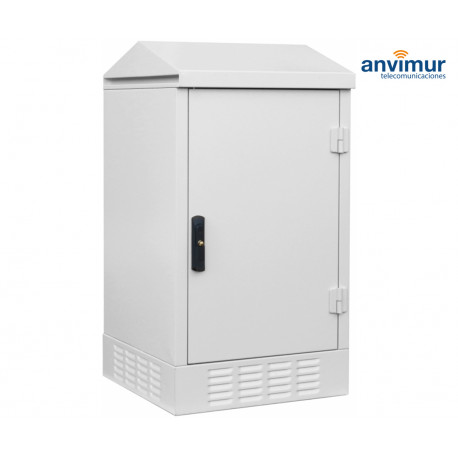

SZK 18U 19” cabinet is a mechanical cover for telecommunication equipment. It is made of steel sheet in light grey colour, thick structure and it is resistant to corrosion.

• Made of sheet metal with Magnelis® coating 1,5 mm thick.
• Lockable with a 3-point bolt lock with a padlock bolt, swing handle.
• Degree of protection IP65, mechanical resistance IK 10 (confirmed by test report No. B/2016/356).
• The cabinet has a double sheath made of sheet metal - internal sheet metal wall with Magnelis® coating 1 mm thick.
• The upper and lower parts are connected with a 150mm high grommet.
• Plinth made of sheet metal with a Magnelis® coating 2 mm thick, 150 mm high, with ventilation holes.
• 2 pairs of 19” rack - adjustable distance between the front and rear pair from 260 mm to 430 mm.

Specifications

(Including all installation accessories)

Additional equipment:

• Heating kit.
• LED lamp.
• Pedestal for cabinet.
• Ventilation kit.
