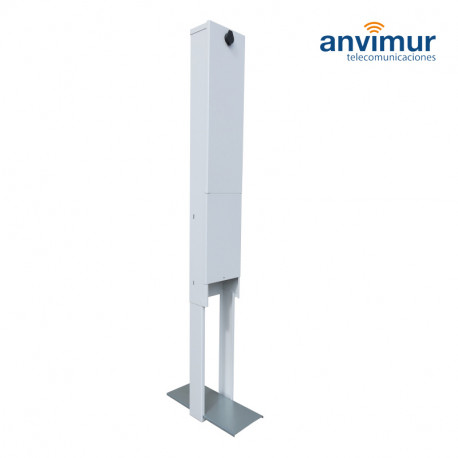

Outdoor Distribution Cabinet FTTH for 16 SC SX adapters | FTTH16J

Outdoor cabinet FTTH 16J fot FTTx network designed for outdoor installation. Simple construction allows for free arrangement of optical fibers. In the upper part of thw cabinet there are two specially profield inserts designed for mounting optical network elements such as adapters or weld trays. The insert has a capacity of 2j (2 holes for SC Simplex adapters) and 16j (16 holes for sc Simplex adapters).

• Body made of sheet metal with Magnelis coating, thickness 1.0mm.
• The pedestal made of sheet metal with a Magnelis coating, thickness 1.5mm, is designed for mounting by digging into the ground to a depth of 60cm.
• Completely removable door locked with 1 hermetic cylinder lock (dedicated key code).
• Poured polyurethane gasket on the door.
• In the upper part of the cabinet two specially profiled inserts designed for mounting optical network elements such as adapters, splice trays.
• Insert in the operator part with a capacity of 2J (2 holes for SC Simplex adapters) and a client with a capacity of 16J (16 holes for SC Simplex adapters).
• Insert mounting brackets on the back wall also act as cable / coil holders.
• The upper part of the cabinet has IP65 rating obtained by separating it from the lower part with a sealing insert, mounted after laying the optical fibers.
• The ground part of the cabinet after mounting the pedestal is 86cm.

Specifications

(Including all installation accessories)

(DOES NOT INCLUDE, ADAPTERS, PIGTAILS, SPLITTERS)
