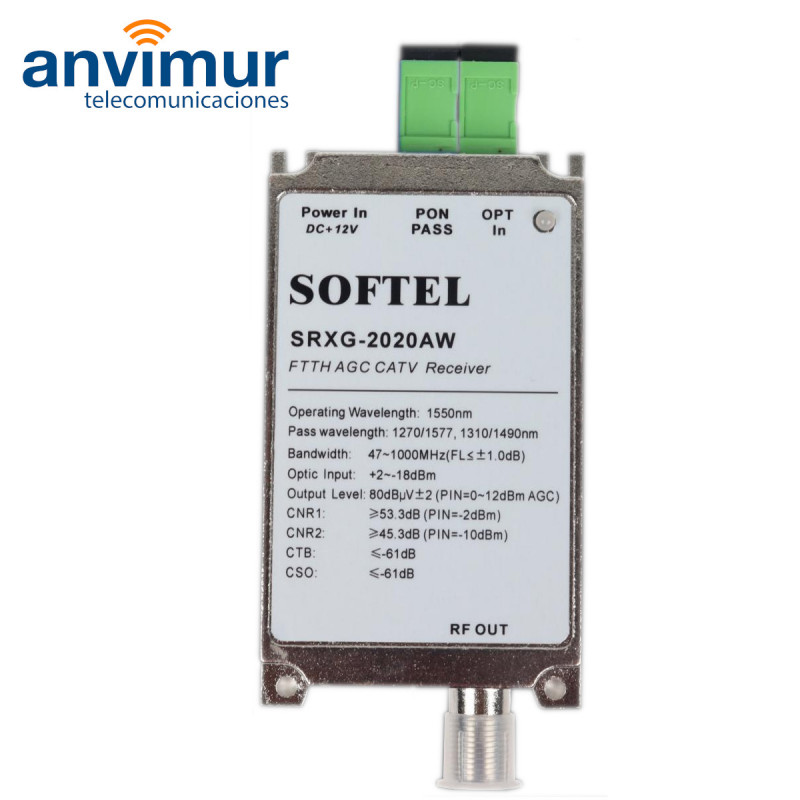

FTTH/CATV active convertor Built-in CWDM and AGC
SRXG2020AW
New product
FTTH/CATV passive convertor Built-in CWDM, suitable for single-fiber wavelength system, CATV operating Wavelength 1550nm, passwavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON
Special low noise matching circuit and high output level with Automatic gain control
12V 0.5A power supply included
This product is no longer in stock
Data sheet
| GPON | Reception (RFoG) |
More info
world premiere FTTH/CATV passive convertor Built-in CWDM, suitable for single-fiber wavelength system, CATV operating Wavelength 1550nm, passwavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON, XG-PON
Product characteristics:
- Extra-low noise
- Wide dynamic receiving optical power range: within Pin=-13, MER≥30.0dB
- Work Bandwidth 45 ~ 1050MHz.
- Great output level: 68.0dBµV (Pin = -1dBm)
- passwavelengths of 1310 / 1490nm (for connecting an ONT)
Product Application:
- CATV FTTH (networks who want to give CATV and internet / telephony services to their customers).
- Integration of TV private residential areas, hospitals and hotels.
- FTTH PON (GPON networks that want to cut costs in the ONU's without having to dispense CATV service)
- Customers who only had hired Internet / phone services and want to also hire TV service
