OTB 4+16SC Ports and 40 Fusions

FO-C316

New product

Optical Terminal Box (OTB). Ports: 4+16SC | Diameter: < 16mm | Fusions: 40 | Trays/Fusions: 2x8 + 2x12 | Splitter PLC: 2x 1:8 | Adapters: 16 WSC/APC | Dimensions: 319.3x214x133mm | Protection: IP65 | Application: Wall or Pole.

More details

30,00 € VAT excl.

Add to wishlist

Data sheet

Fiber Optic DistributionDistribution box PLC Out/Ind

More info

OTB 4+16SC Ports and 40 Fusions

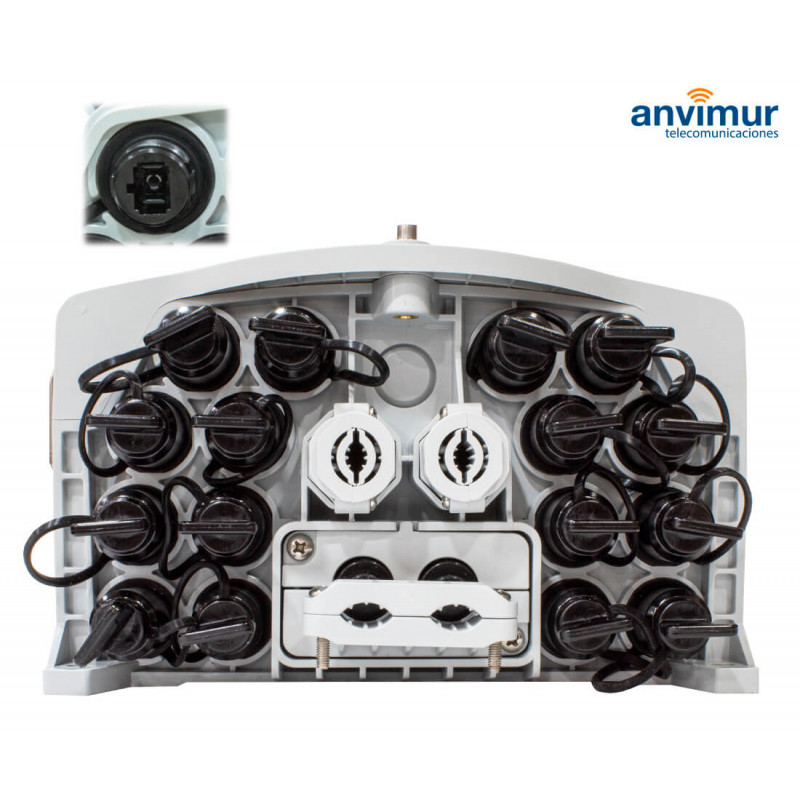

The Optical Terminal Box (OTB) has 4x Ø<16mm input/output ports + 16 ports for SC Access Fast Connectors with watertight plugs (including 16 watertight WSC/APC adaptors) for 40 splice fusions (2x trays for 8 fusions each, 2x trays for 12  fusions + 1x Splitter 1:8 each), PLC splitter can be installed. Can be installed on wall or post. Material is Grey PC+ABS, (RAL7035) with IP65 protection.

Specifications

ModelFO-GFS-16SX
Nº Ports4 + 16 SC
Diameter Ports< 16mm
Nº Fusions40
Trays / Fusions2x8 + 2x12
Splitter PLC1:8
Adapters SC16 Waterproof WSC/APC SX
Dimensions (mm)319.3x214x133
IP ProtectionIP65
ApplicationWall or Pole

(Including all installation accessories)

(DOES NOT INCLUDE ADAPTERS, PIGTAILS OR SPLITTER)

POST CLAMP DOES NO INCLUDED; It can be installed purchasing the Metal Clamp: FO-PMK

This closure may be installed with PLC Splitters.

“Choose the ones you need for your installation”
