OTB 4+8SC Ports and 28 Fusions

FO-C308

New product

Optical Terminal Box (OTB). Ports: 4+8SC | Diameter: < 16mm | Fusions: 28 | Trays/Fusions: 4x7 | Splitter PLC: 1:8/16 | Adapters: 8 WSC/APC SX | Dimensions: 319.3x200x97.5mm | Protection: IP65 | Application: Wall or Pole.

More details

18,46 € VAT excl.

Add to wishlist

Data sheet

Fiber Optic DistributionDistribution box PLC Out/Ind

More info

OTB 4+8SC Ports and 28 Fusions

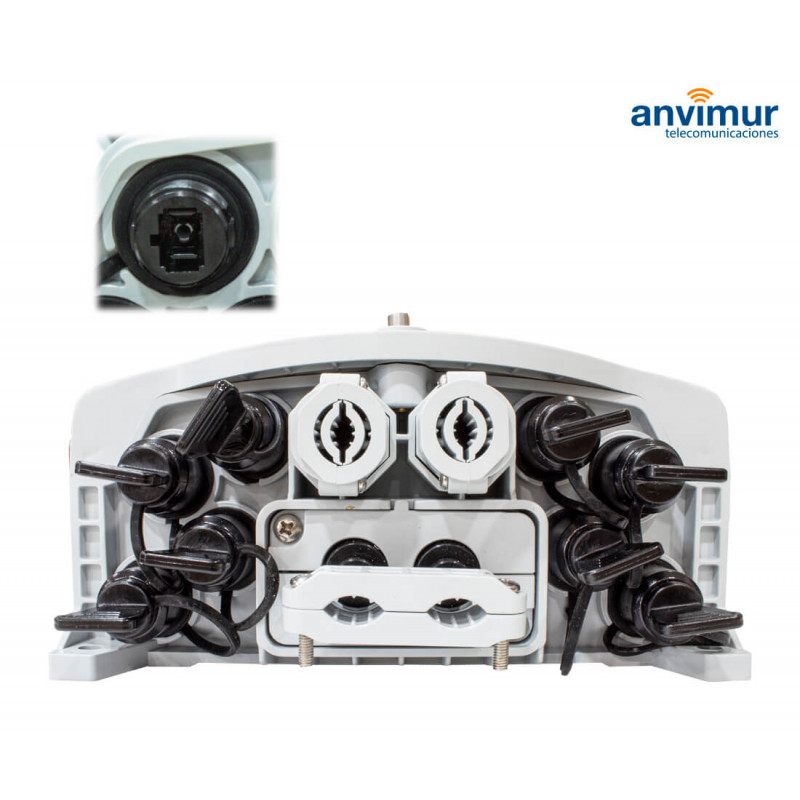

The Optical Terminal Box (OTB) has 4x Ø<16mm input/output ports + 8 ports for SC/APC SX Access Fast Connectors with watertight plugs (including 8 watertight WSC/APC adaptors) for 28 splice fusions (4x trays for 7 fusions each, + 1x Splitter 1:8), PLC splitter can be installed. Can be installed on wall or post. Material is Grey PC+ABS, (RAL7035) with IP65 protection.

Specifications

ModelFO-GFS-8SX
Nº Ports4 + 8 SC
Diameter Ports< 16mm
Nº Fusions28
Trays / Fusions4x7
Splitter PLC1:8
Adapters SC8 watertight WSC/APC SX
Dimensions (mm)319.3x200x97.5
IP ProtectionIP65
ApplicationWall or Pole

(Including all installation accessories)

(DOES NOT INCLUDE PIGTAILS OR SPLITTER)

POST CLAMP DOES NO INCLUDED; It can be installed purchasing the Metal Clamp: FO-PMK

This closure may be installed with PLC Splitters.

“Choose the ones you need for your installation”
