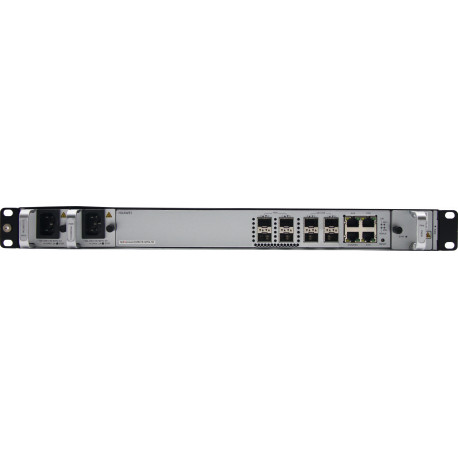

OLT EA5801E-GP04-H2, dual AC, 4*Gpon, 4x10GE/GE

Reference: FO-EA5801E-GP04-H2

Condition: New product

Chasis Huawei OLT SmartAX EA5801E-GP04-H2, 4 GPON ports.

FO-EA5801E-GP04-H2

More details

Data sheet

GPON	OLT

More info

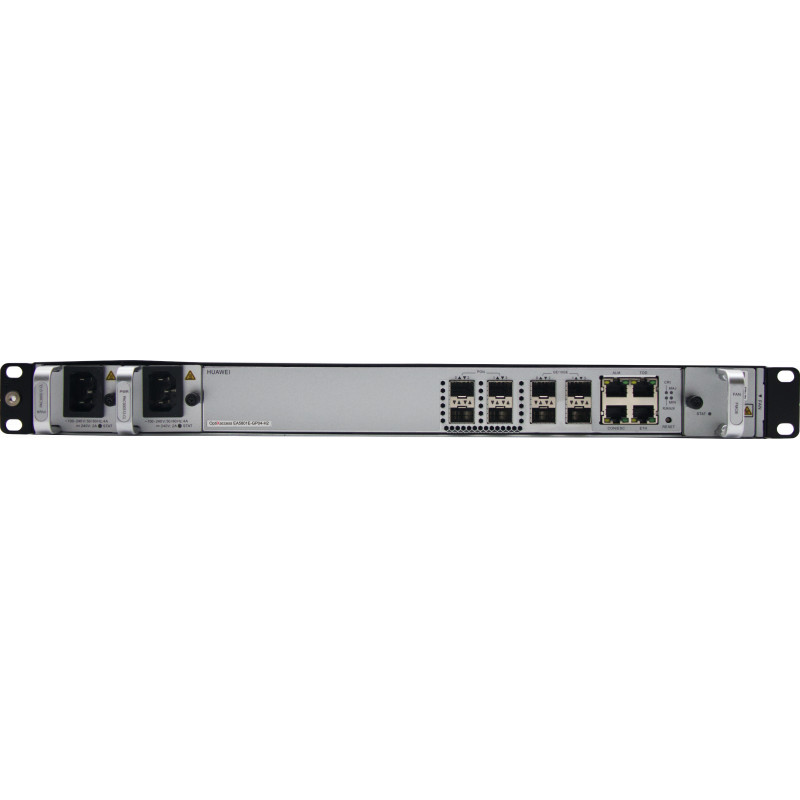

OLT Huawei OptiXaccess EA5801E-GP04-H2 | 4 GPON Ports

This chassis is recommended for deployments in residential areas, hotel complexes, and small population centers.
*Request a quote at tecnico@anvimur.com

The Huawei OptiXaccess EA5801E-GP04-H2 OLT is a compact box-shaped OLT. It provides 4 GPON ports and a unified platform to support multiple services such as broadband, voice, and video. With the EA5801E-GP04-H2, all services are carried over a single fiber network, simplifying the network architecture and reducing operational expenses (OPEX).

Features

Lightweight and small size: Weighs less than 5 kg (4.6 kg with full AC configuration) and occupies 1 U of installation space. It can be flexibly adapted to various scenarios.
Dual power supplies, high reliability: Supports dual AC power supplies, providing flexible power supply and high reliability.
Easy installation and flexible deployment: The matching small outdoor cabinet can be installed on a pole, tower, or wall, facilitating easy and comfortable installation and reducing engineering costs.

EA5801E-GP04-H2 Specifications

Parameters	Huawei OptiXaccess EA5801E-GP04-H2
Dimensions (H x W x D)	Excluding mounting ears: 43.6 x 442 x 220 mm Including IEC mounting ears: 43.6 x 482.6 x 220 mm Including ETSI mounting ears: 43.6 x 531 x 220 mm
Maximum weight (full configuration)	AC power supply: 4.6 kg
Power supply mode	AC power supply (dual backup)
Working voltage range	AC power supply: 100 V to 240 V
Rated voltage	AC power supply: 110 V / 220 V
Maximum input current	AC power supply: 2.5 A
Ambient temperature	–40°C to +65°C The device can start up at a lowest temperature of –25°C. Note: The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
Ambient humidity	5% – 95% RH
Atmospheric pressure	70 – 106 kPa
Altitude	< 4000 m Note: The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
System switching capacity	95 Gbit/s
MAC addresses	32768
Access ONT	256
IPv4 routing table	8192
IPv6 routing table	4096
ARP table	16384
Bit error rate (BER) in full load	A BER smaller than 10 e-10 for a port that transmits data in full load
Upstream ports (10 GE/GE)	4
Service ports	4 GPON
Power consumption	AC power supply: Static power consumption: 47 W Typical power consumption: 58 W Maximum power consumption: 100 W Note: The power consumption of a product is tested in the following conditions: Static power consumption: 25°C, no optical module in optical ports, and no service. Typical power consumption: 25°C, 4 x 10GE upstream ports, 4 x GPON (CLASS C+) ports on the user side, full services, and maximum traffic. Maximum power consumption: 65°C, 4 x 10GE upstream ports, 4 x GPON (CLASS C+) ports on the user side, full services, and maximum traffic.
