> >OLT EA5801E-GP08-H3, dual AC, 8*Gpon, 4x10GE/GE
New OLT EA5801E-GP08-H3, dual AC, 8*Gpon, 4x10GE/GE
Previous Next

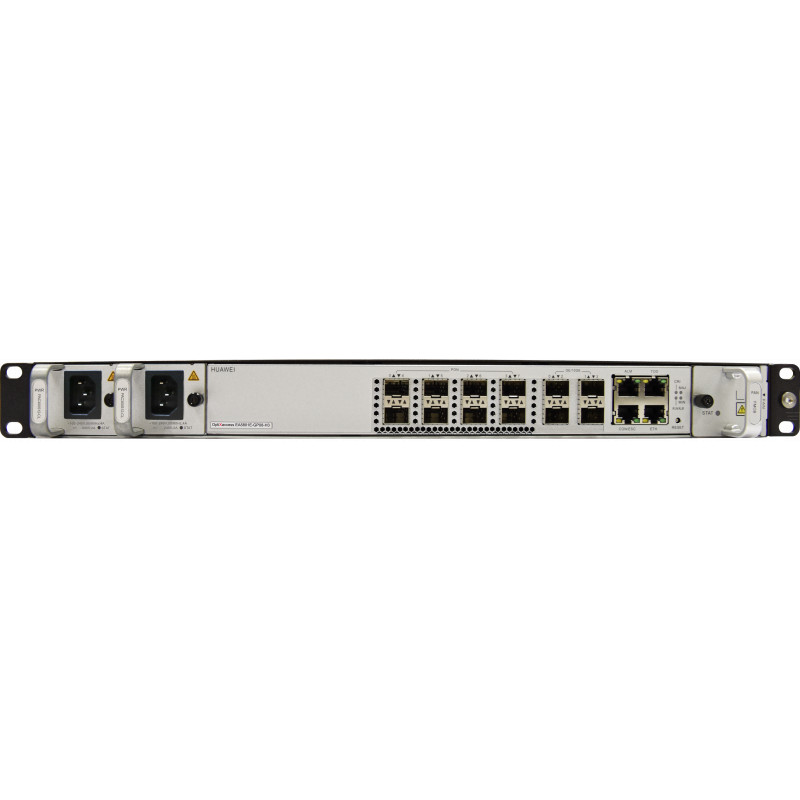

OLT EA5801E-GP08-H3, dual AC, 8*Gpon, 4x10GE/GE

FO-EA5801E-GP08-H3

New product

Chasis Huawei OLT SmartAX EA5801E-GP08-H3, 8 GPON ports.

FO-EA5801E-GP08-H3

More details

Add to wishlist

Data sheet

GPONOLT

More info

Huawei OptiXaccess EA5801E-GP08-H3 OLT | 8 GPON Ports

This chassis is recommended for deployments in residential areas, hotel complexes, small population centers, and environments that require a higher port density in a compact format.

*Request a quote at tecnico@anvimur.com

The Huawei OptiXaccess EA5801E-GP08-H3 is a compact, box-shaped OLT. It provides 8 GPON ports and a unified platform to support multiple services such as broadband, voice, and video. With the EA5801E-GP08-H3, all services are carried over a single fiber network, simplifying the network architecture and reducing operational expenses (OPEX).

Features

  • Lightweight and small size: Weighs less than 5 kg (4.2 kg with DC power supply / 4.6 kg with AC power supply in full configuration) and occupies 1 U of installation space. It can be flexibly adapted to various scenarios.
  • Dual power supplies, high reliability: Supports dual AC (alternating current) or DC (direct current) power supplies, providing flexible power supply and high reliability.
  • Easy installation and flexible deployment: The matching small outdoor cabinet can be installed on a pole, tower, or wall, facilitating easy and comfortable installation and reducing engineering costs.

EA5801E-GP08-H3 Specifications

ParametersHuawei OptiXaccess EA5801E-GP08-H3
Dimensions (H x W x D)Excluding mounting ears: 43.6 mm × 442 mm × 220 mm
Including IEC mounting ears: 43.6 mm × 482.6 mm × 220 mm
Including ETSI mounting ears: 43.6 mm × 531 mm × 220 mm
Maximum weight with full configurationDC power supply: 4.2 kg
AC power supply: 4.6 kg
Power supply modeDC power supply (dual backup)
AC power supply (dual backup)
Working voltage rangeDC power supply: –38.4 V to –72 V
AC power supply: 100 V to 240 V
Rated voltageDC power supply: –48 V / –60 V
AC power supply: 110 V / 220 V
Maximum input currentDC power supply: 6 A
AC power supply: 2.5 A
Ambient temperature–40°C to +65°C
The device can start up at a lowest temperature of –25°C.

NOTE:
The +65°C temperature refers to the highest temperature measured at the air intake vent of a service subrack.
Ambient humidity5% – 95% RH
Atmospheric pressure70 – 106 kPa
Altitude< 4000 m

NOTE:
The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the device varies with the altitude.
System switching capacity110 Gbit/s
MAC addresses32768
Access ONT256
IPv4 routing table8192
IPv6 routing table4096
IP addresses available for built-in DHCP servers4096
ARP table16384
Bit error rate (BER) in full loadA BER smaller than 10 e-10 for a port that transmits data in full load
Upstream ports4 GE/10GE
Service ports8 GPON
Power consumptionDC power supply:
Static power consumption: 46 W
Typical power consumption: 64 W
Maximum power consumption: 111 W

AC power supply:
Static power consumption: 47 W
Typical power consumption: 65 W
Maximum power consumption: 112 W

NOTE:
The power consumption of a product is tested in the following conditions:
• Static power consumption: 25°C, no optical module in optical ports, and no service.
• Typical power consumption: 25°C, 4 x 10GE upstream ports, 8 x GPON (CLASS C+) ports on the user side, full services, and maximum traffic.
• Maximum power consumption: 65°C, 4 x 10GE upstream ports, 8 x GPON (CLASS C+) ports on the user side, full services, and maximum traffic.

Accessories

Download

EA5801E-GP08-H3 Datasheet

Download (360.96k)
