OTB 2+48 Ports and 96 Fusions

FO-X48A

New product

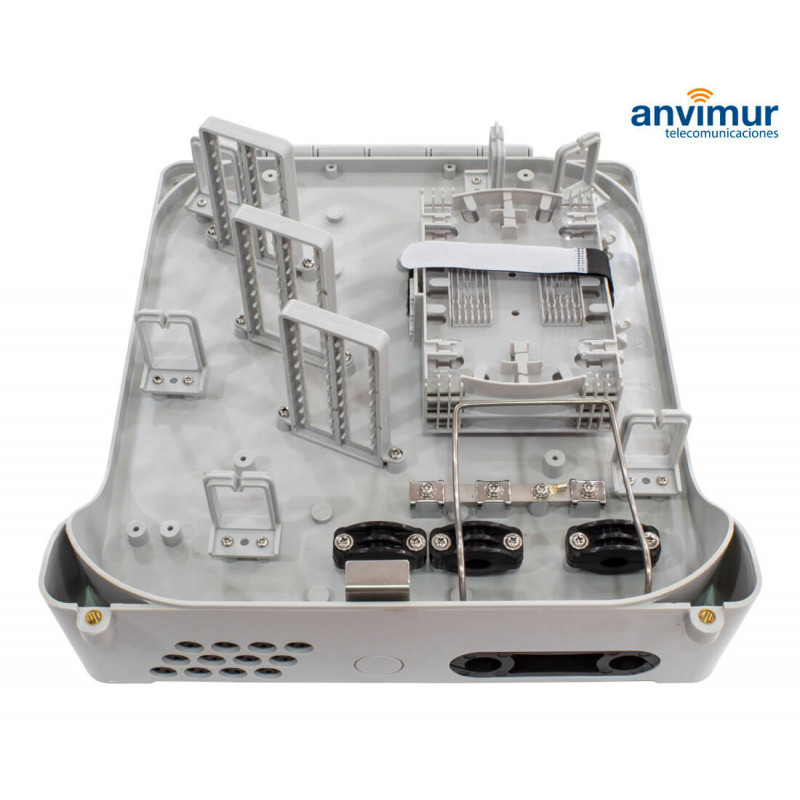

Optical Terminal Box, 2 ports Ø<12mm + 48 drop cable ports Ø<4mm, for 96 splice fusions and 54 SC adaptors. IP67 Protection.

Application: Wall.

More details

32,00 €

Add to wishlist

Data sheet

Fiber Optic DistributionDistribution box PLC Out/Ind

More info

OTB 2+48 Ports and 96 Fusions

Specifications

ModelFO-X48A
Nº Ports2 + 48
Diameter Ports< 12mm
Nº Fusions96F
Trays / Fusions4 x 24
Splitter(2x 1:16) (1x 1:32)
Adapters54 SC Simplex
Dimensios (mm)410x330x120
IP ProtectionIP67
ApplicationWall

(Included all installation accessories)

(DOES NOT INCLUDE ADAPTERS, PIGTAILS OR SPLITTER)

This closure may be installed with PLC Splitters.

“Choose the ones you need for your installation”

Splitter PLC connector 1x8 SC/APC

Splitter PLC connector 1x16 SC/APC

Splitter PLC connector 1x32 SC/APC

Technical Specifications:

ModelInput/output portsStorage capacity (single fusion)Splice traysPLC SplitterProtectionAdaptersDimensions LxWxH (mm)
X48A

50 ports

2 ports: Each port for 1 cable with a maximun of 12 mm.

48 ports: Each port for 4 cable with a maximun of 4 mm.

96F (4x24 splices)4 tray (24 splices each tray)It can host 1x4, 1x8 and 1x16 splitterIP67

It can host 54 SC Adapters

410x330x120

Multifunctional box to work in fiber optic distributions or as termination box to provide service to users. The material in this box is highly resistant to UV radiation and rainfalls, IP65 protection. Indoor / outdoor application, is suitable for installation in wall. Its design allows easy installation of wiring and its reopening for maintenance. It has 14 Ports and can host 54 SC adapters and 96 fiber fusions.
