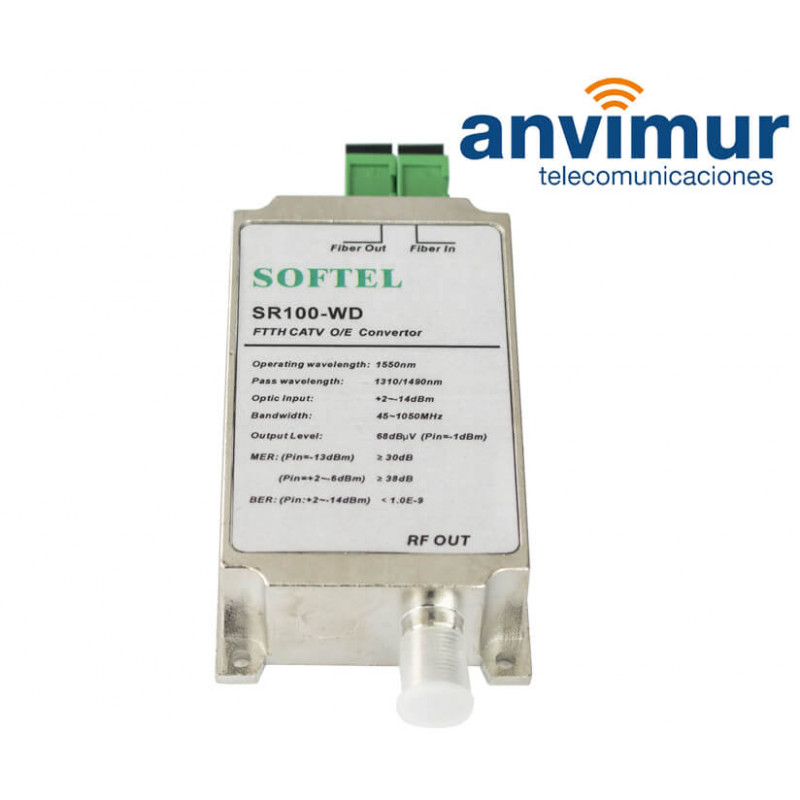

FTTH/CATV passive convertor Built-in CWDM
AN9008C-WD
New product
FTTH/CATV passive convertor Built-in CWDM, suitable for single-fiber wavelength system, CATV operating Wavelength 1550nm, passwavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON
no power supply required
These converters only work with digital signals not analog signals , if you transmit analog signals degrade the signal at the output .
Data sheet
| GPON | Reception (RFoG) |
More info
world premiere FTTH/CATV passive convertor Built-in CWDM, suitable for single-fiber wavelength system, CATV operating Wavelength 1550nm, passwavelength 1310/1490nm, can conveniently connect the ONU of EPON, GPON
Anvimur telecomunicaciones with its technology partner, has developed the first passive CATV converter for 1550nm wavelength with multiplexing CWDM Built-in.
Product characteristics:
- No power required.
- Work Bandwidth 45 ~ 1050MHz.
- Output Level = 68dBμV (Pin = -1dBm)
- passwavelengths of 1310 / 1490nm (for connecting an ONT)
Product Application:
- CATV FTTH (networks who want to give CATV and internet / telephony services to their customers).
- Integration of TV private residential areas, hospitals and hotels.
- FTTH PON (GPON networks that want to cut costs in the ONUs without having to dispense CATV service)
- Customers who only had hired Internet / phone services and want to also hire TV service
