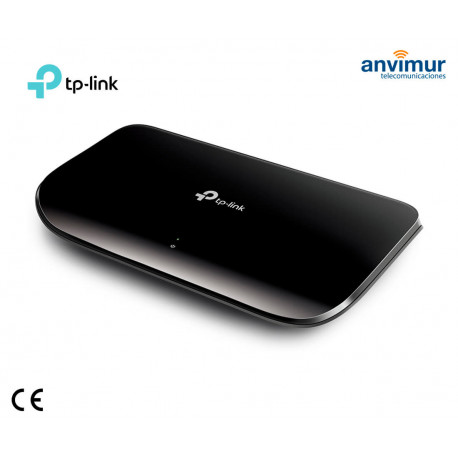

SG1008D, 8-Port Gigabit Desktop Switch | TP-LINK
TL-SG1008D
New product
TP-LINK 8 Gigabit ports, Supports MDI / MDIX, IEEE 802.3x, desktop or wall-mounting.
TL-SG1008D
Data sheet
| Networking and Wireless | Switch |
More info
SG1008D, 8-Port Gigabit Desktop Switch | TP-LINK
The TP-Link 8-Port Gigabit desktop switch TL-SG1008D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1008D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1008D can save power consumption, making it an eco-friendly solution for your home or office network.
- 8 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX.
- Green Ethernet technology saves power consumption.
- IEEE 802.3x flow control provides reliable data transfer.
- Plastic case, desktop or wall-mounting design.
- Plug and play, no configuration required.
| HARDWARE FEATURES | |
| Standards and Protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |
| Interface | 8 10/100/1000Mbps RJ45 Ports AUTO Negotiation/AUTO MDI/MDIX |
| Fan Quantity | Fanless |
| Physical Security Lock | No |
| External Power Supply | External Power Adapter (Output: 9VDC/0.6A) |
| Jumbo Frame | 15 KB |
| Switching Capacity | 16 Gbps |
| Dimensions ( W x D x H ) | 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) |
| Max Power Consumption | 4.63W(220V/50Hz) |
| Max Heat Dissipation | 15.80BTU/h |
| SOFTWARE FEATURES | |
| Transfer Method | Store and Forward |
| MAC Address Table | 4K |
| Advanced Functions | Green Technology 802.3X Flow Control Back Pressure 802.1p/DSCP QoS (for V7 and later version) |
| OTHERS | |
| Certification | FCC, CE, RoHs |
| Package Contents | 8-Port Gigabit Desktop Switch TL-SG1008D Power Adapter Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~60℃ (-40℉~140℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Downloads: Data Sheet, User Guide, ... here.
