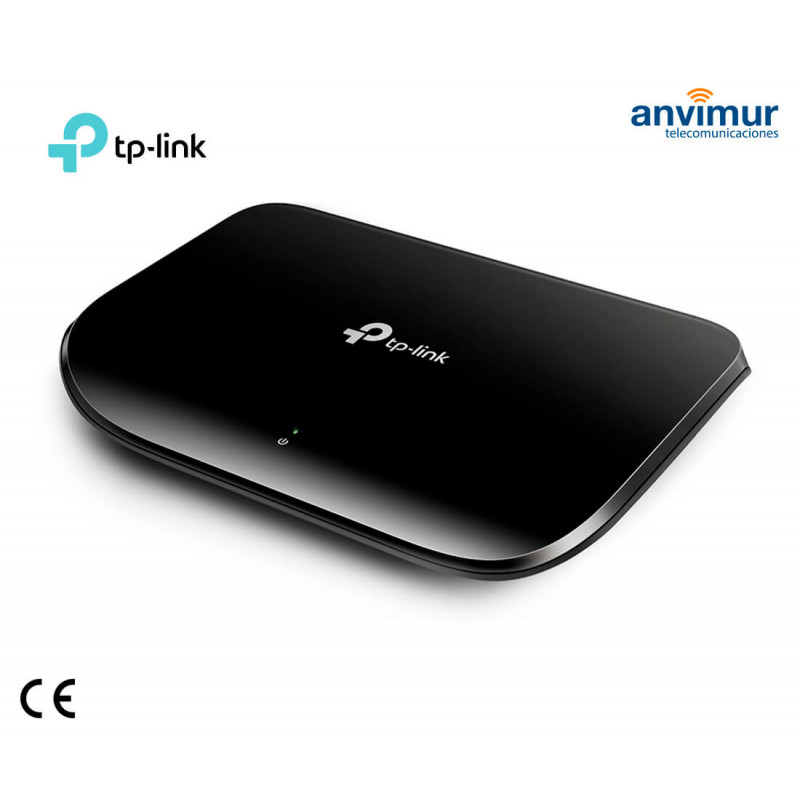

SG1005D, 5-Port Gigabit Desktop Switch | TP-LINK

TL-SG1005D

New product

TP-LINK 5 Gigabit ports, Supports MDI / MDIX, IEEE 802.3x, desktop or wall-mounting.

TL-SG1005D

More details

13,80 € VAT excl.

Add to wishlist

Data sheet

Networking and WirelessSwitch

More info

SG1005D, 5-Port Gigabit Desktop Switch | TP-LINK

The TP-Link 5-Port Gigabit desktop switch TL-SG1005D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1005D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1005D can save power consumption, making it an eco-friendly solution for your home or office network.

  • 5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX.
  • Green Ethernet technology saves power consumption.
  • IEEE 802.3x flow control provides reliable data transfer.
  • Plastic case, desktop or wall-mounting design.
  • Plug and play, no configuration required.

Specifications

HARDWARE FEATURES
Interface5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan QuantityFanless
Physical Security LockNo
External Power SupplyExternal Power Adapter (Output: 5VDC / 0.6A)
Dimensions ( W x D x H )5.5×3.5×0.9 in. (140×88×23 mm)
Max Power Consumption3.1W (220V/50Hz)
Max Heat Dissipation10.57 Btu/hr
SOFTWARE FEATURES
Transmission MethodStore and Forward
Advanced FunctionsGreen Technology
802.3x Flow Control
Back Pressure
802.1p/DSCP QoS (for V7 and later version)
OTHERS
CertificationFCC, CE, RoHs
Package Contents5-Port Gigabit Desktop Switch TL-SG1005D
Power Adapter
Installation Guide
EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~60℃ (-40℉~140℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Downloads: Data Sheet, User Guide, ... here.
