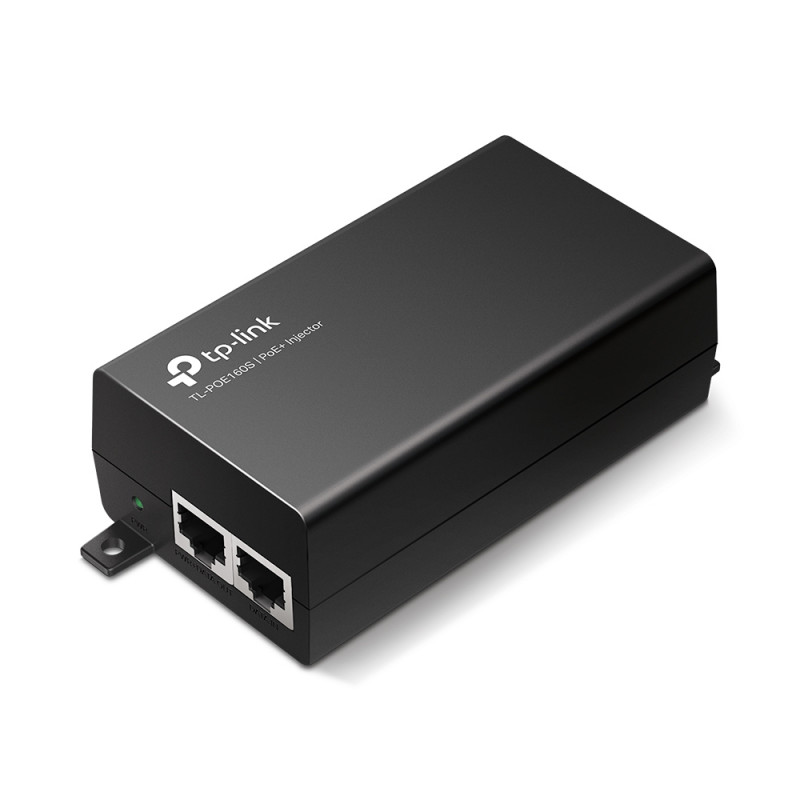

TL-POE160S Gigabit PoE+ Injector 802.3af/at 30W | TP-LINK

TL-POE160S

New product

PoE+ Injector with 2 Gigabit Ports

Model: TL-POE160S

More details

27,82 € VAT excl.

Add to wishlist

Data sheet

Networking and WirelessConversores de Medios

More info

TL-POE160S, PoE+ Injector | TP-LINK

  • 2 Gigabit ports ensure faster transmission
  • Complies with IEEE802.3af/at standards, delivers up to 30W
  • Reduces infrastructure costs by transmitting data and power simultaneously over a single Ethernet cable
  • Automatically detects and supplies the exact power required to meet device needs
  • Desktop and wall-mount design fits most installation scenarios
  • Plug & Play installation — no configuration required
  • Built-in power supply

Specifications

NETWORK
Standards and ProtocolsIEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at
HARDWARE FEATURES
Interface1 x 10/100/1000 Mbps RJ45 Data Input Port
1 x 10/100/1000 Mbps RJ45 Power + Data Output Port
Network Media10BASE-T: UTP Cat 3, 4, 5 cable (max. 100m)
EIA/TIA-568 100Ω STP (max. 100m)
100BASE-TX: UTP Cat 5, 5e cable (max. 100m)
EIA/TIA-568 100Ω STP (max. 100m)
1000BASE-T: UTP Cat 5, 5e, 6 cable (max. 100m)
Power ConsumptionInput: 100-240V, 50/60Hz
Output: Auto-detects required power (max. 30W)
Basic FunctionsAuto-detection algorithm enables power delivery to 802.3af/at PDs
Automatically determines required power
Supports wall-mount and desktop placement
LEDsON: Power is being supplied normally
OFF: No power source detected
Dimensions125 × 59.4 × 36.8 mm
GENERAL
CertificationsFCC, CE, RoHS
EnvironmentOperating Temperature: 0°C to 40°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 10% to 90% RH non-condensing
Storage Humidity: 5% to 90% RH non-condensing
PACKAGE CONTENTS
Package ContentsTL-POE160S PoE+ Injector
Installation Guide
Power Cord
RJ45 Cable
Wall-Mount Kits
