OTB 4+24 Ports and 24 Fusions

FO-GFS24N

New product

Optical Terminal Box (OTB). Ports: 4+24 | Diameter: < 16mm | Fusions: 24 | Trays/Fusions: 1x24 | Splitter PLC: 1:4/8/16 | Adapters: 24 SC | Dimensions: 330x210x87 | Protection: IP65 | Application: Wall.

More details

23,50 €

Add to wishlist

Data sheet

Fiber Optic DistributionDistribution box PLC Out/Ind

More info

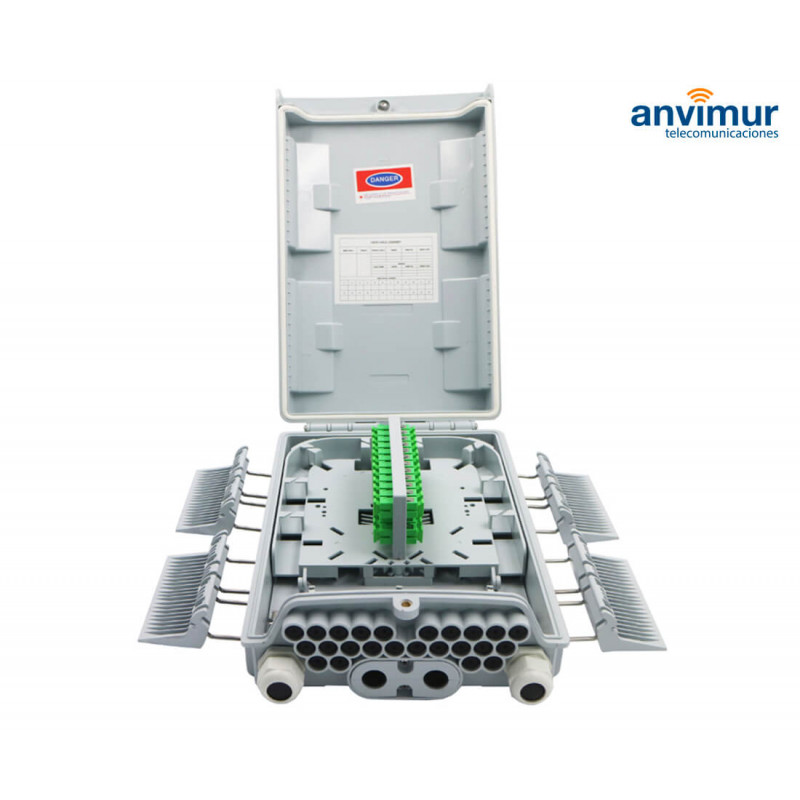

OTB 4+24 Ports and 24 Fusions

Optical Terminal Box (OTB). It has 4 input/output ports <Ø16mm + 24 drop cable ports Ø<7mm, for 24 splice fusions, 24 SC adaptors and capacity to house Splitter PLC. Possibility to install on Wall, IP65 protection.

Specification

ModelFO-GFS24N
Nº Ports4 + 24
Diameter Ports< 16mm
Nº Fusions24F
Trays / Fusions1 x 24
Splitter PLC
1:4/8/16
Adapters SC
24
Dimensions (mm)330x210x87
IP ProtectionIP65
ApplicationWall

(Including all installation accessories)

(DOES NOT INCLUDE ADAPTERS, PIGTAILS OR SPLITTER)

Esta Caja puede ser instalada con Splitters PLC.

“Choose the ones you need for your installation”

Splitter PLC 1:8 SC/APC

Splitter PLC 1:16 SC/APC
